Yamaha — vmax - f125b / f125bet1l

Exploded diagrams and part specifications.

1VMAX Upper Casing 2VMAX Intake 1 3VMAX Intake 2 4VMAX Intake 3 5VMAX Exhaust 6VMAX Electrical 1 7VMAX Electrical 2 8VMAX Electrical 3 9VMAX Electrical 4 10VMAX Electrical 5 11VMAX Oil Pan 12VMAX Optional Parts 1 13VMAX Optional Parts 2 14VMAX Crankshaft & Piston 15VMAX Control 16VMAX Cylinder & Crankcase 1 17VMAX Cylinder & Crankcase 2 18VMAX Switch & Panel 19VMAX Starting Motor 20VMAX Steering 1 21VMAX Steering 2 22VMAX Steering 3 23VMAX Steering Guide 24VMAX Steering Friction 25VMAX Generator 26VMAX Periodic Maintenance Parts 27VMAX Top Cowling 28VMAX Valve 29VMAX Power Trim & Tilt Assembly 1 30VMAX Power Trim & Tilt Assembly 2 31VMAX Fuel 1 32VMAX Fuel 2 33VMAX Fuel Injection Pump 34VMAX Fuel Tank 35VMAX Bracket 1 36VMAX Bracket 2 37VMAX Bottom Cowling 1 38VMAX Bottom Cowling 2 39VMAX Meter 40VMAX Repair Kit 1 41VMAX Repair Kit 2 42VMAX Remote Control Assembly 43VMAX Remote Control Box 44VMAX Lower Casing & Drive 1 45VMAX Lower Casing & Drive 2

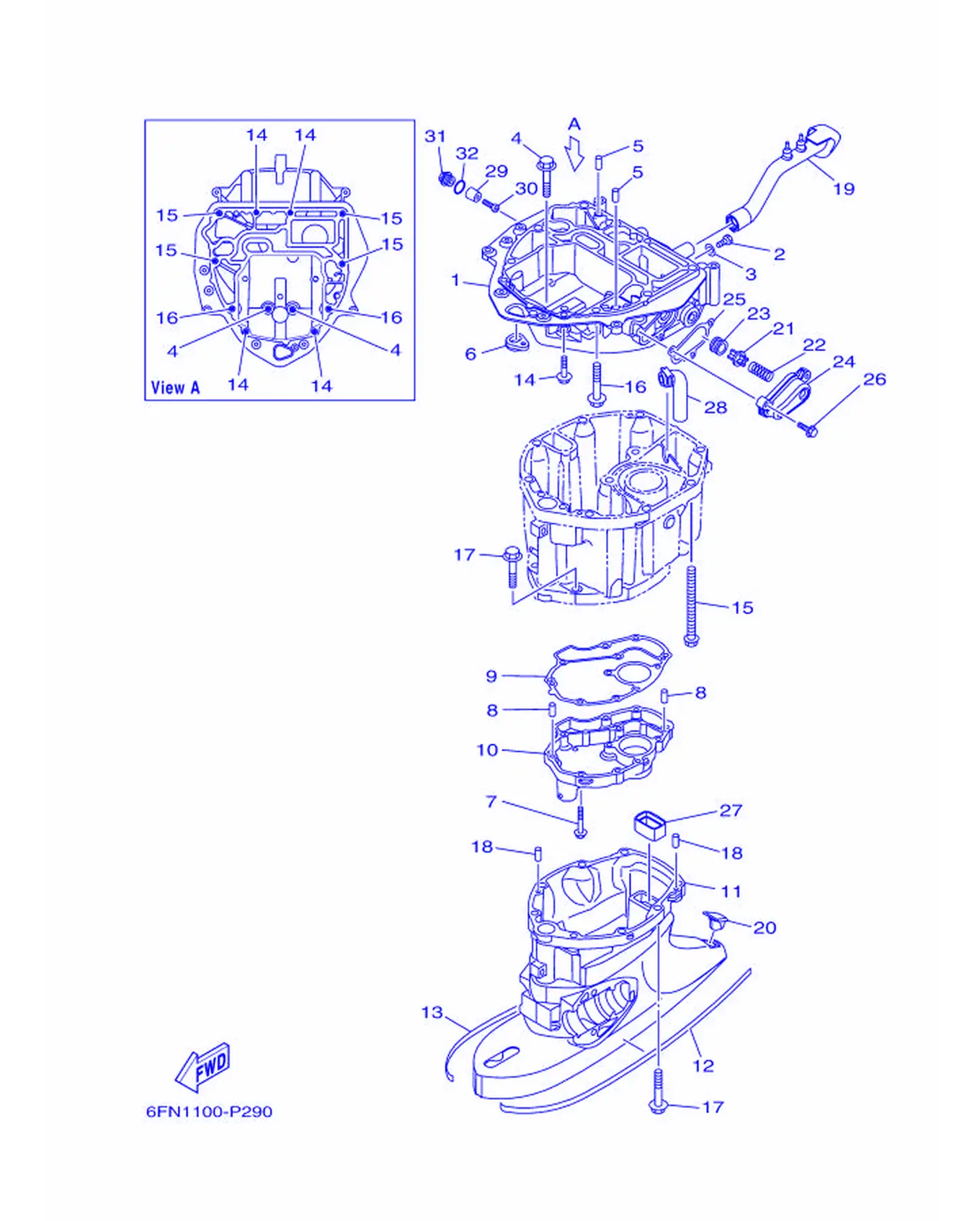

Fig. 1VMAX Upper Casing

REF	Part No.	Name	Qty
1	6EK-41137-02-CA	Guide, Exhaust	1
2	97D95-08014	Bolt, Hexagon Deep Recess	1
3	90430-08143	Gasket	1
4	97E75-10545	Bolt, Hexagon with Washer Deep Recess	2
5	93608-12M05	Pin, Dowel	2
6	6EK-42727-01	Grommet	1
7	95D95-06030	Bolt, Flange Deep Recess	11
8	93606-12019	Pin, Dowel	2
9	6EK-41134-00	Gasket, Exhaust Manifold 2	1
10	6EK-45181-01	Plate	1
11	6EK-45111-00-8D	Casing, Upper	1
12	6N9-42791-41	Mark 1	1
13	6N9-42792-41	Mark 2	1
14	97E75-08535	Bolt, Hexagon with Washer Deep Recess	4
15	90119-10007	Bolt, With Washer	4
16	97E75-10545	Bolt, Hexagon with Washer Deep Recess	2
17	97E75-10545	Bolt, Hexagon with Washer Deep Recess	8
18	93606-12019	Pin, Dowel	2
19	6EK-42769-01	Seal, Rubber	1
20	6C5-45155-02	Cap	1
21	6G5-12416-00	Valve, Pressure Control	1
22	90501-200A2	Spring, Compression	1
23	90480-20M05	Grommet	1
24	6EK-1246A-00-9S	Cover 1	1
25	6EK-12435-A0	Gasket	1
26	95D95-06025	Bolt, Flange Deep Recess	3
27	67F-45127-00	Seal	1
28	6EK-45135-00	Pipe	1
29	6G8-11325-00	Anode	1
30	98980-05025	Screw, Bind	1
31	6G8-11197-A0	Blind Plug	1
32	93210-13M63	O-ring	1

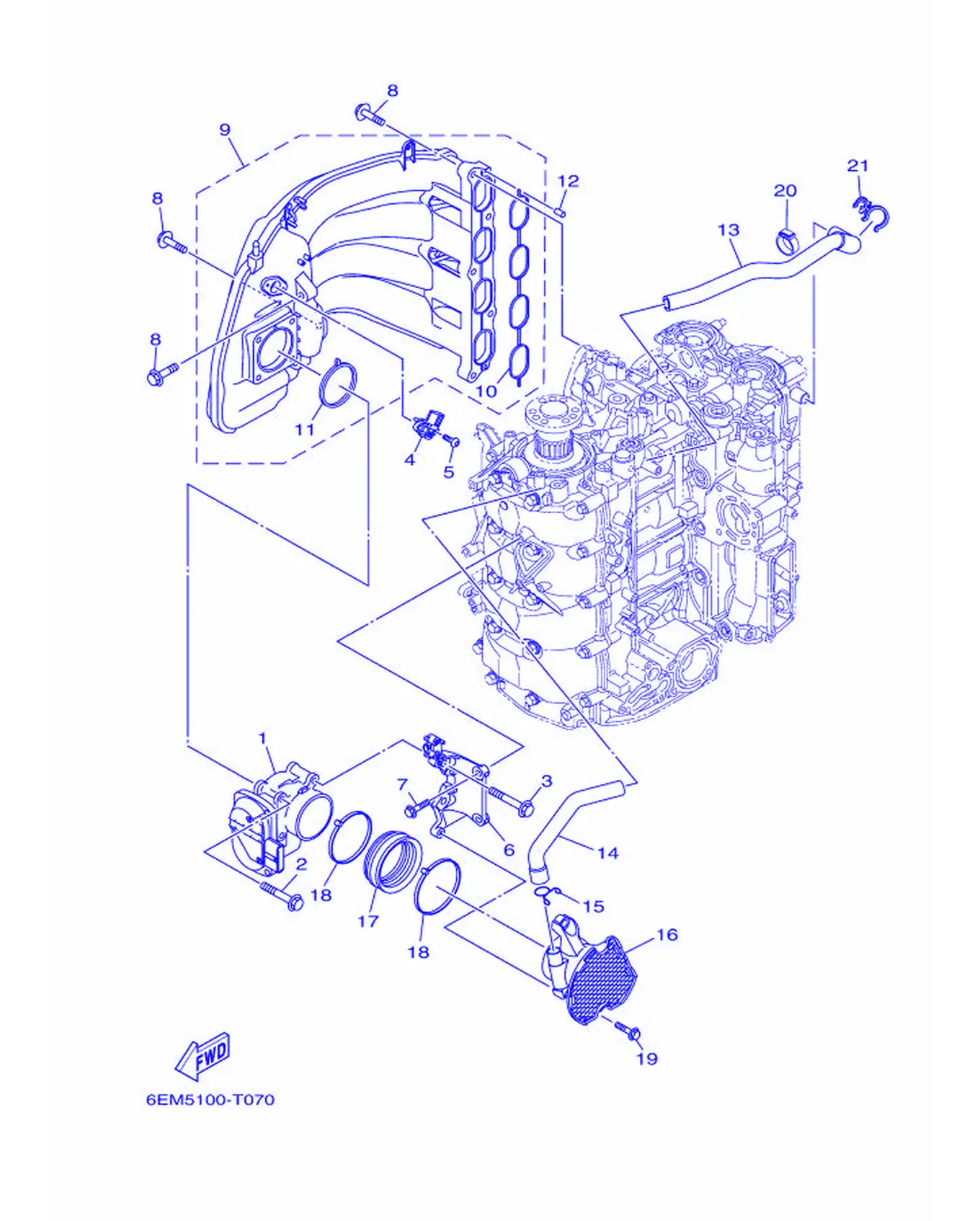

Fig. 2VMAX Intake 1

REF	Part No.	Name	Qty
1	6EM-13751-01	Body, Throttle 1	1
2	95D75-08060	Bolt, Flange Deep Recess	2
3	90105-08186	Bolt, Flange	2
4	68F-83688-10	SensorAssembly	1
5	90111-05037	Bolt	2
6	6EK-13152-02	Stay 2	1
7	95D75-06025	Bolt, Flange Deep Recess	2
8	90119-08022	Bolt, With Washer	8
9	6EM-13641-00	Manifold, Intake 1	1
10	6EK-13645-00	Gasket, Manifold 1	1
11	6EK-13646-00	Gasket, Manifold 2	1
12	91690-50014	Pin,Spring	2
13	6EK-15373-10	Pipe, Breather	1
14	6EK-15393-00	Pipe, Breather 2	1
15	90467-23M16	Clip	1
16	6DA-14440-00	Silencer Assembly, Intake	1
17	6P2-1441J-01	Pipe, Silencer	1
18	90464-99004	Clamp	2
19	95D75-06025	Bolt, Flange Deep Recess	2
20	90464-26001	Clamp	1
21	90464-21002	Clamp	1

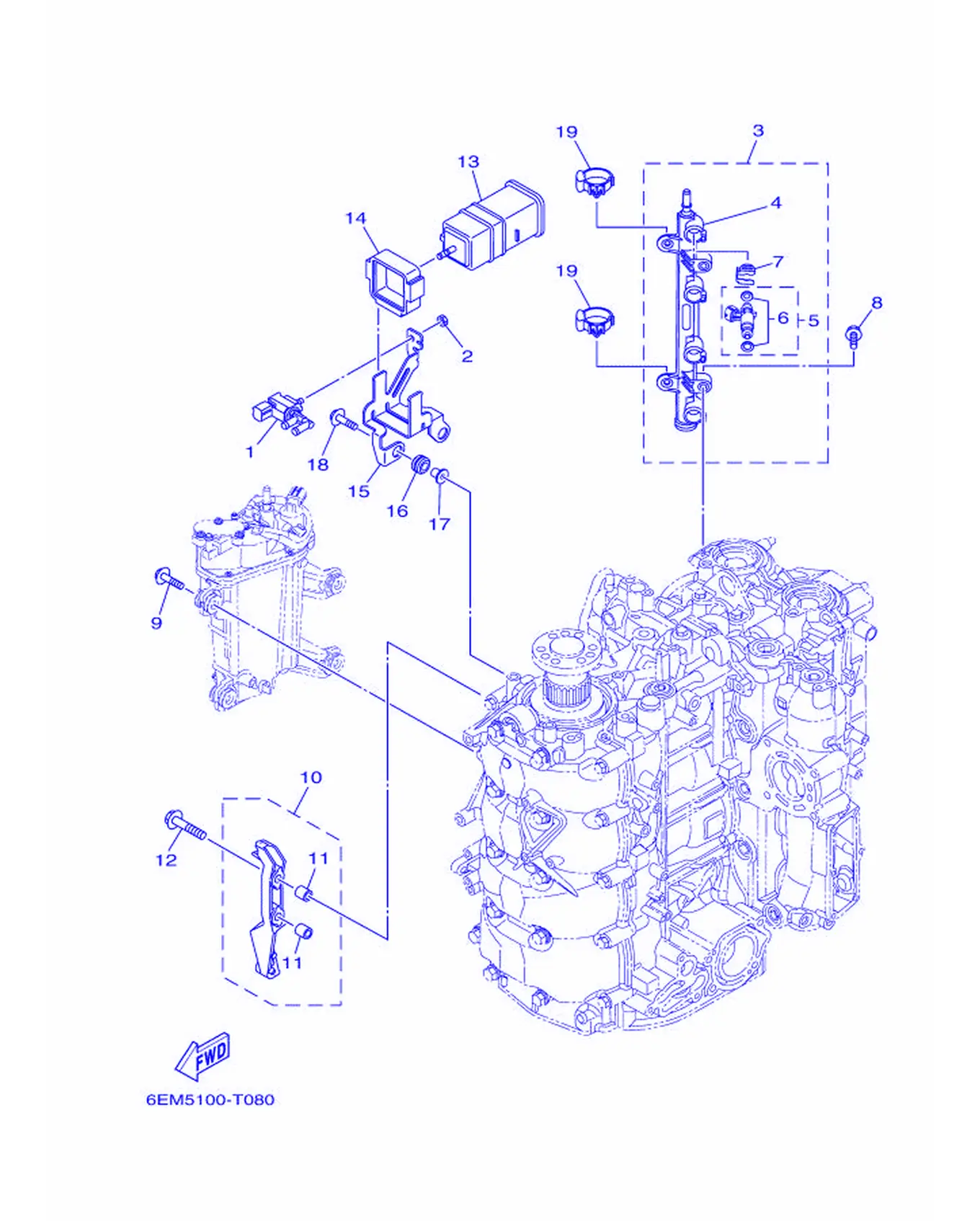

Fig. 3VMAX Intake 2

REF	Part No.	Name	Qty
1	6C5-86120-00	SolenoidValveAssembly	1
2	95380-06600	Nut, Hexagon	1
3	6EK-13160-01	Delivery Pipe Assembly 1	1
4	6EK-13161-00	Pipe, Delivery 1	1
5	6EK-13761-01	Injector Assembly	4
6	6AW-1410B-00	Packing Kit	1
7	6AW-13577-10	Clip	4
8	90105-06M08	Bolt, Flange	2
9	90119-06299	Bolt, with Washer	4
10	6EM-14291-00	Bracket 1	1
11	99590-10114	Pin, Dowel	2
12	90105-08M87	Bolt, Flange	2
13	6P2-24170-00	Canister Assembly	1
14	6FP-2419E-01	Cover, Canister	1
15	6EK-2134X-10	Bracket, Canister	1
16	90480-10M23	Grommet	2
17	90387-06289	Color	2
18	90119-06309	Bolt, with Washer	2
19	90464-07209	Clamp	2

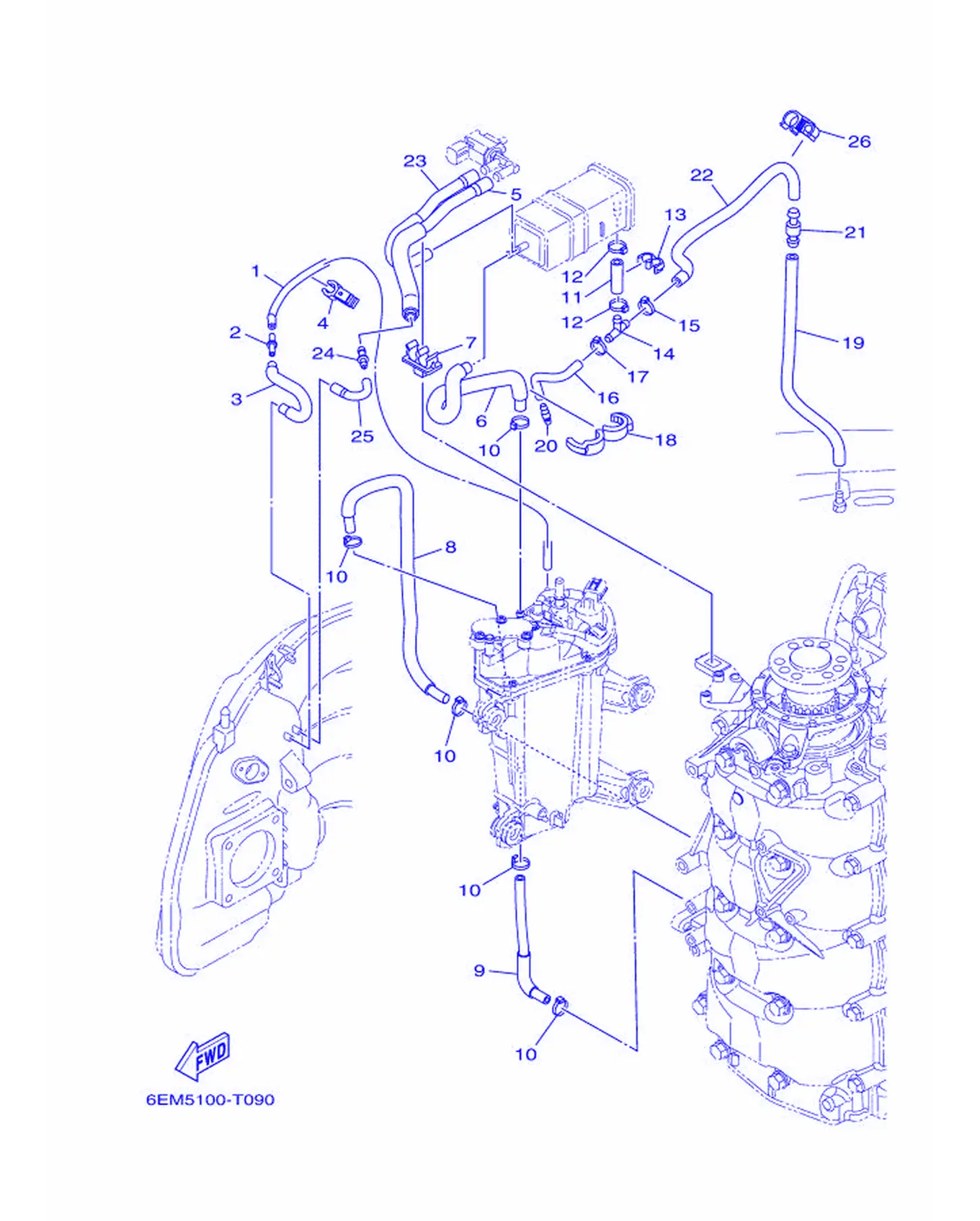

Fig. 4VMAX Intake 3

REF	Part No.	Name	Qty
1	6EK-13532-00	Hose, Vacuum Sensing 3	1
2	5PS-14568-00	Joint	1
3	6EM-1475H-00	Pipe 5	1
4	90464-12006	Clamp	1
5	6EM-2416A-10	Hose	1
6	6EM-1475A-00	Pipe 1	1
7	90464-11012	Clamp	1
8	6EK-12576-00	Hose 1	1
9	6EK-12577-00	Hose 2	1
10	90465-11M10	Clamp	5
11	6AW-13545-10	Hose 1	1
12	90465-11M10	Clamp	2
13	90464-10M57	Clamp	1
14	688-24378-00	Pipe,Joint	1
15	90465-11M10	Clamp	1
16	6EK-13546-00	Hose 2	1
17	90465-11M10	Clamp	1
18	90464-16001	Clamp	1
19	6EK-13547-00	Hose 3	1
20	6E5-21744-00	Breather	1
21	63D-21744-00	Breather	1
22	6EK-13548-01	Hose, Air 4	1
23	6EK-1475F-10	Pipe 3	1
24	6EK-14989-00	Orifice, Air Vent	1
25	6EM-1475G-00	Pipe 4	1
26	90464-12010	Clamp	1

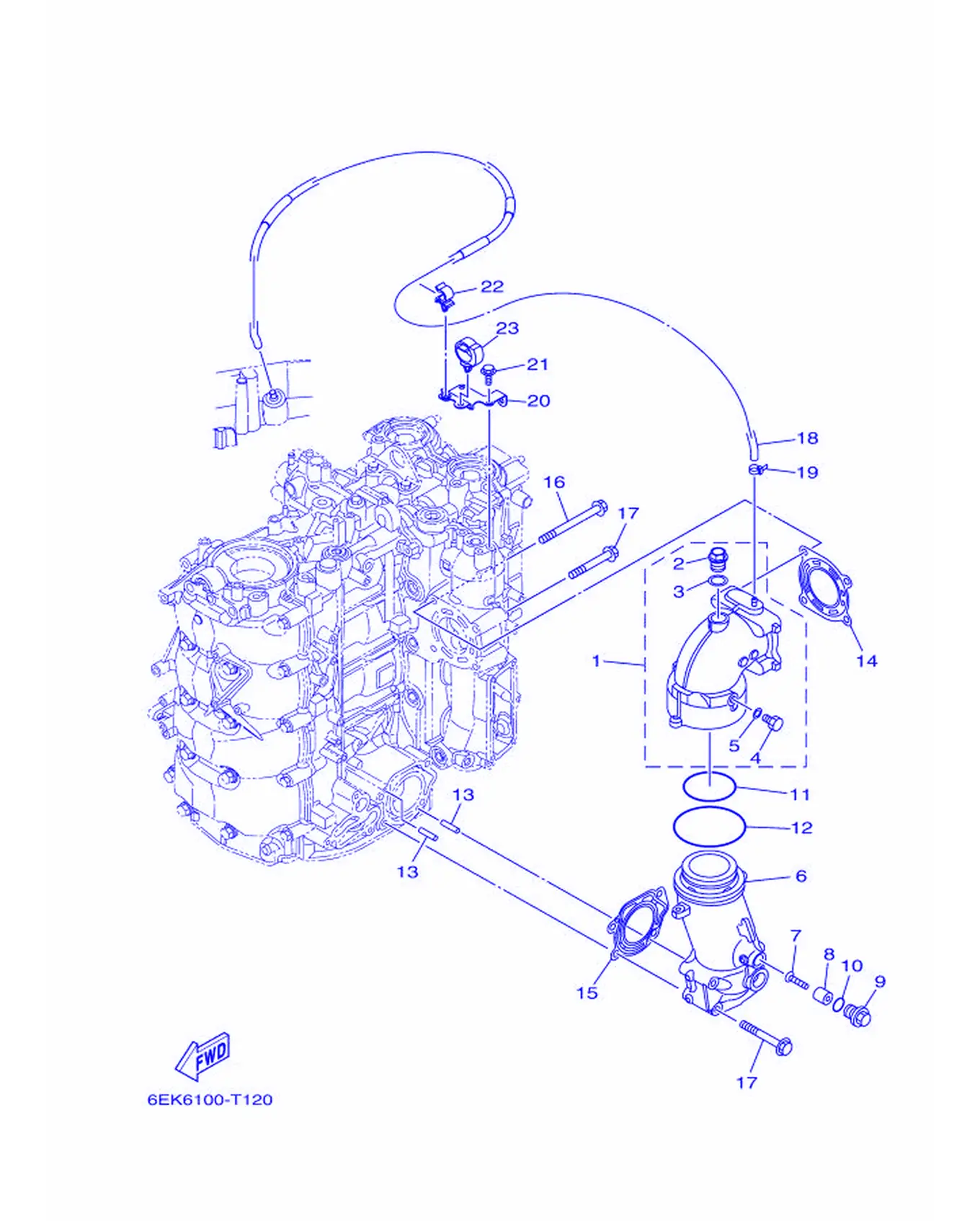

Fig. 5VMAX Exhaust

REF	Part No.	Name	Qty
1	6EK-14615-10	Joint, Exhaust 1	1
2	90340-18M09	Plug, Straight Screw	1
3	90201-186F1	Washer,Plate	1
4	97D95-08014	Bolt, Hexagon Deep Recess	1
5	90430-08143	Gasket	1
6	6EK-14625-00	Joint, Exhaust 2	1
7	98780-05025	Screw, Flat Head	1
8	6EK-11325-00	Anode	1
9	6G8-11197-A0	Blind Plug	1
10	93210-13M63	O-ring	1
11	93210-64001	O-ring	1
12	93210-84001	O-ring	1
13	91690-50014	Pin,Spring	2
14	6EK-41114-00	Gasket, Exhaust Outer Cover	1
15	6EK-41124-00	Gasket, Exhaust Outer Cover	1
16	90105-08247	Bolt, Flange	2
17	90105-08220	Bolt, Flange	6
18	6EM-42542-00	Pipe	1
19	90465-11M10	Clamp	1
20	6EK-82398-00	Plate 3	1
21	95D95-06012	Bolt, Flange Deep Recess	2
22	90464-09129	Clamp	1
23	90464-12183	Clamp	1

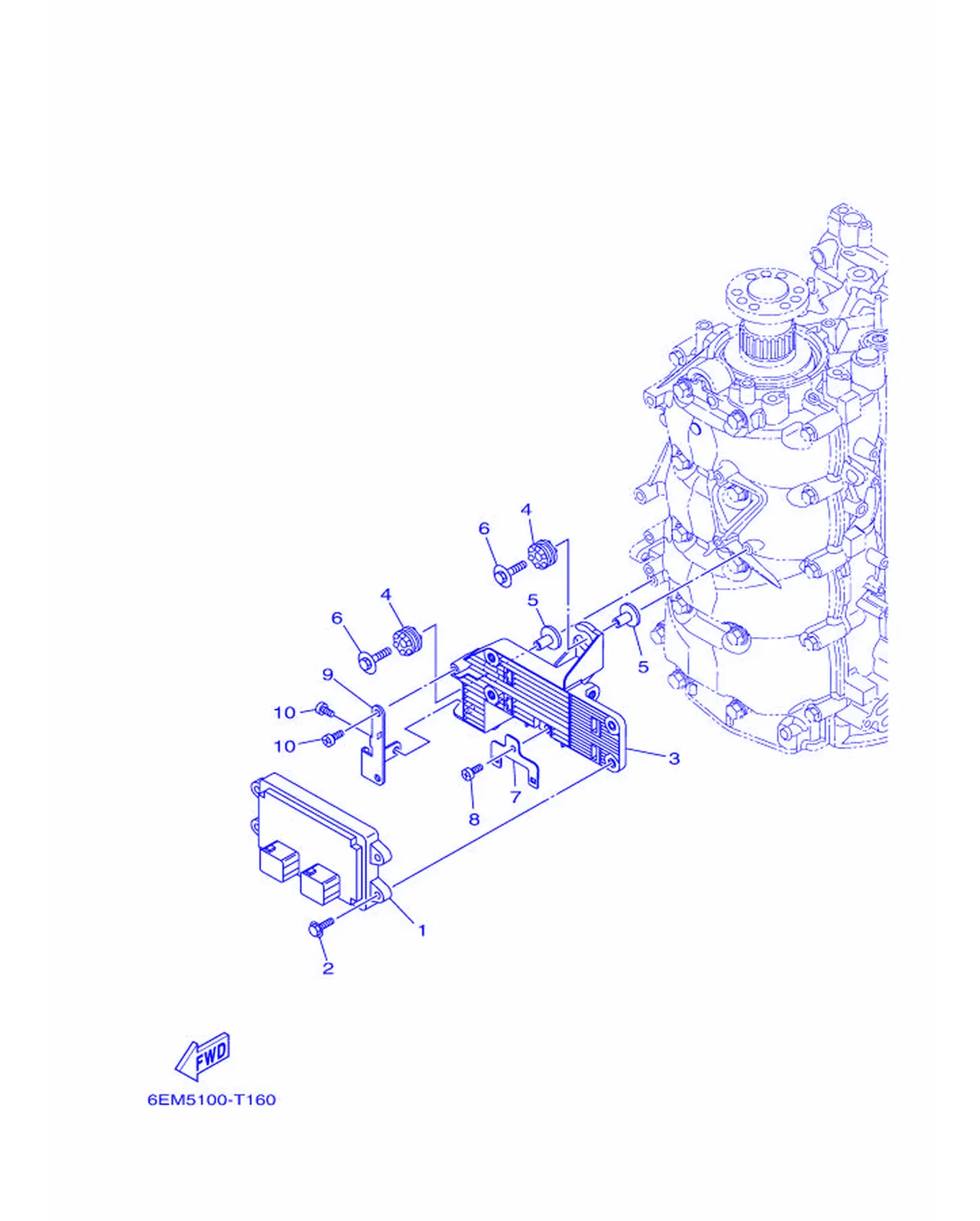

Fig. 6VMAX Electrical 1

REF	Part No.	Name	Qty
1	6FN-8591A-11	Engine Control Unit Assembly	1
2	97E95-06520	Bolt, Hexagon with Washer Deep Recess	4
3	6EM-81948-01	Bracket	1
4	60V-85564-00	Grommet	2
5	90387-06176	Color	2
6	68F-85119-00	Bolt	2
7	6C5-8257V-00	Plate,Connector	1
8	97780-60620	Screw, Tapping	1
9	6EK-85548-00	Holder	1
10	97780-60620	Screw, Tapping	2

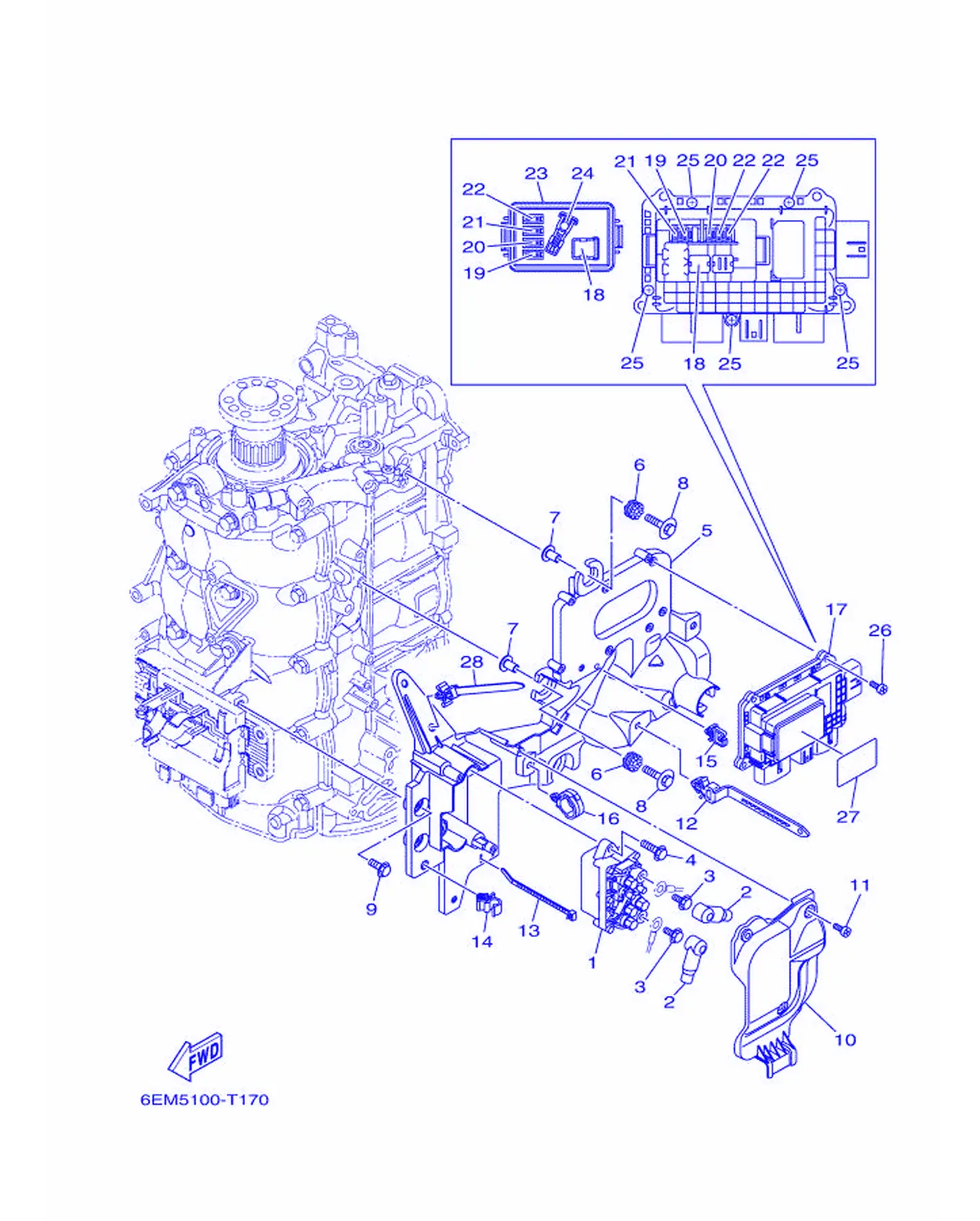

Fig. 7VMAX Electrical 2

REF	Part No.	Name	Qty
1	63P-W8195-00	Relay Assembly	1
2	682-82119-01	Cover,LeadWire	2
3	97E95-06610	Bolt, Hexagon with Washer Deep Recess	2
4	97E95-06520	Bolt, Hexagon with Washer Deep Recess	2
5	6EK-81952-10	Holder, Relay	1
6	60V-85564-00	Grommet	4
7	90387-06176	Color	4
8	68F-85119-00	Bolt	4
9	95D95-06016	Bolt, Flange Deep Recess	2
10	6EK-81942-10	Cover	1
11	90169-05M00	Screw, Truss Head Tapping	3
12	90465-13M76	Clamp	1
13	90465-11M52	Clamp	1
14	90464-10M32	Clamp	1
15	90464-08004	Clamp	1
16	90464-12183	Clamp	1
17	6EM-82170-12	Fuse Box Assembly	1
18	6FP-82151-01	Fuse (50A)	2
19	6CB-82151-00	Fuse (10A)	2
20	6CB-82151-10	Fuse (15A)	2
21	6CB-82151-20	Fuse (20A)	2
22	6CB-82151-30	Fuse (30A)	3
23	6CB-85544-10	Cover	1
24	6CB-2812A-00	Puller, Fuse	1
25	6P2-82113-00	Screw (M3)	5
26	97780-50620	Screw, Tapping	4
27	6EM-81919-11	Graphic, Regulator	1
28	90465-12M56	Clamp	1

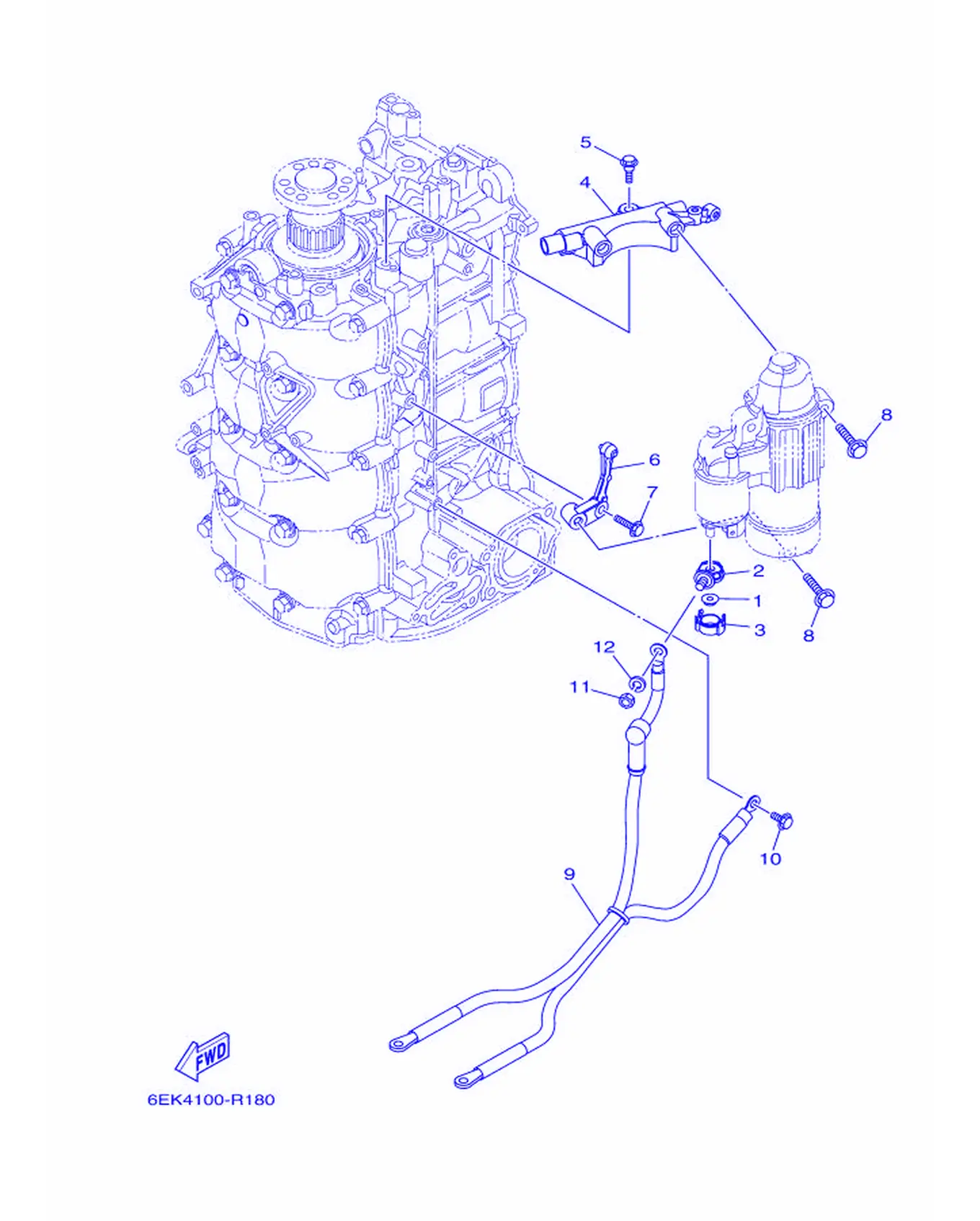

Fig. 8VMAX Electrical 3

REF	Part No.	Name	Qty
1	90179-08003	Nut	1
2	60V-81925-00	Terminal	1
3	68F-82582-00	Cover,WireHarness	1
4	6EK-81822-01	Bracket, Starting Motor	1
5	90109-08240	Bolt	2
6	6EK-81823-00	Stay, Starting Motor	1
7	95812-08030	Bolt, Flange	1
8	90105-08248	Bolt, Flange	3
9	68V-82105-J2	Battery Cable	1
10	90105-06M14	Bolt, Washer Based Head	1
11	95333-08600	Nut	1
12	92903-08100	Washer,Spring	1

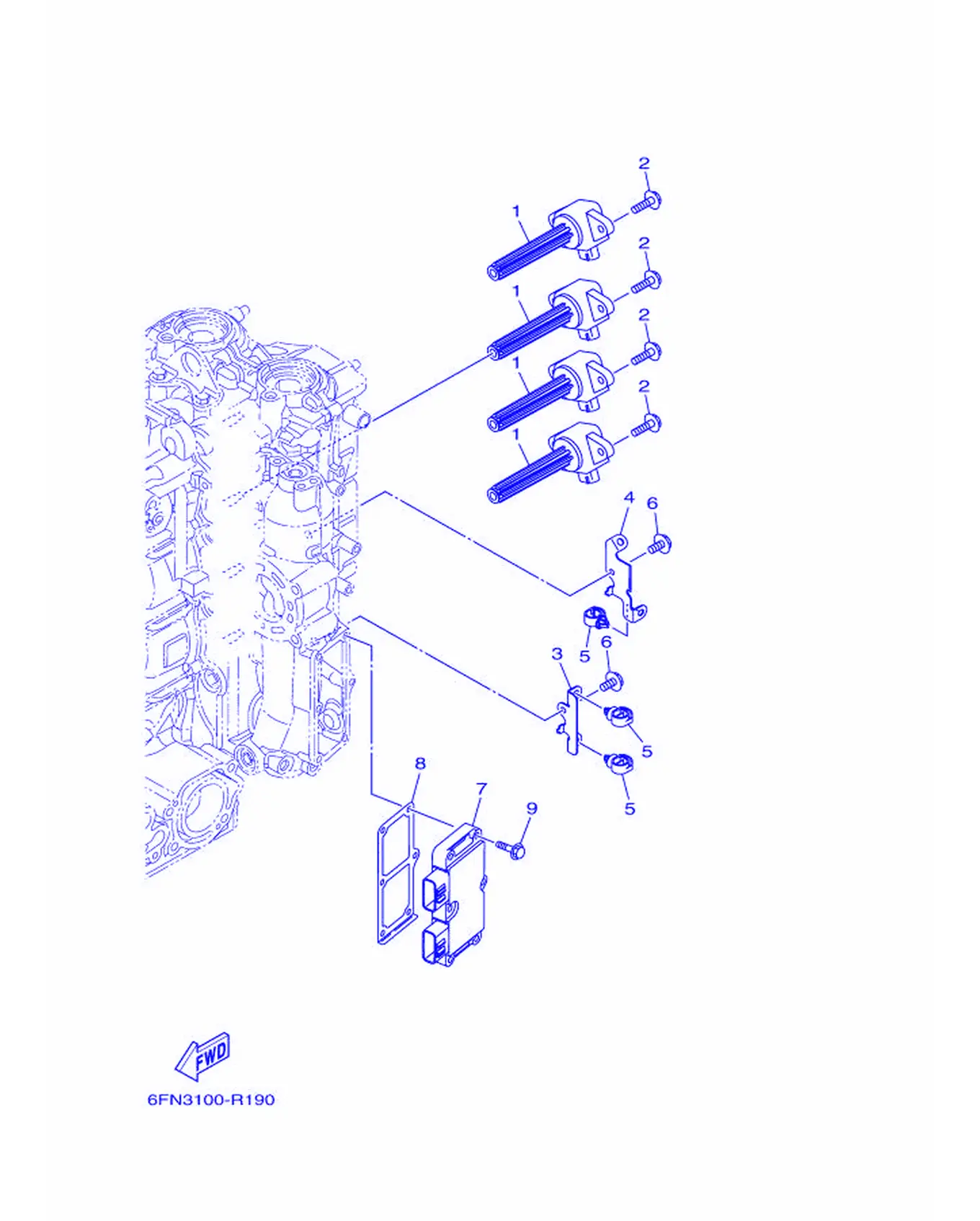

Fig. 9VMAX Electrical 4

REF	Part No.	Name	Qty
1	6P2-82310-03	Ignition Coil Assembly	4
2	95D95-06020	Bolt, Flange Deep Recess	8
3	6EM-82388-00	Plate	1
4	6EM-82389-00	Plate 2	1
5	90464-13249	Clamp	3
6	95D95-06012	Bolt, Flange Deep Recess	2
7	6EK-81960-10	Rectifier and Regulator Assembly	1
8	6EK-81975-01	Rectifier Fitting Plate	1
9	97E95-06530	Bolt, Hexagon with Washer Deep Recess	6

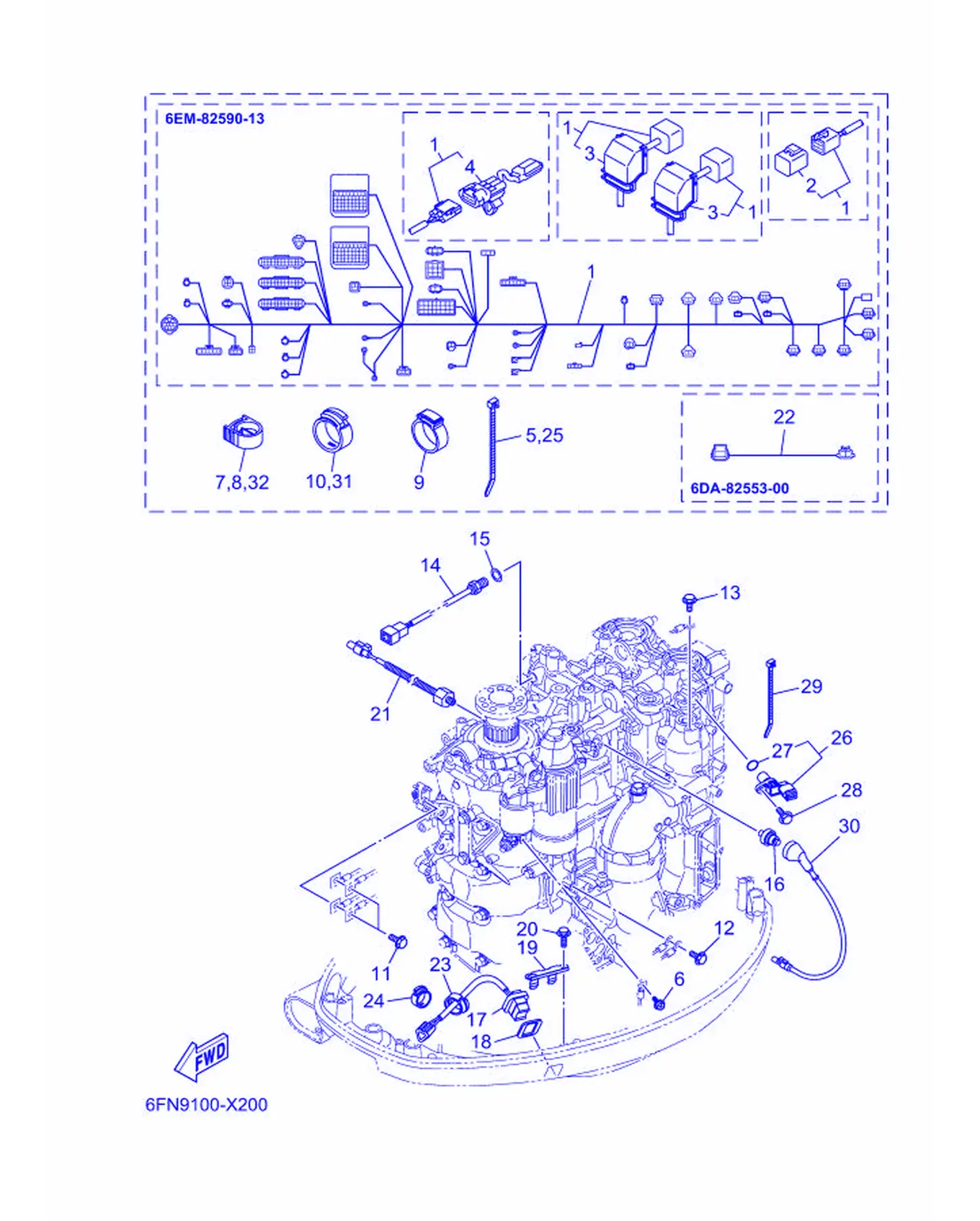

Fig. 10VMAX Electrical 5

REF	Part No.	Name	Qty
1	6EM-82590-13	Wire Harness Assembly	1
2	6Y8-82582-11	Cap 1 (4 Pin)	1
3	6EM-82599-00	Cover, Connector	2
4	6EK-81980-01	Diode Assembly	1
5	90465-13M18	Clamp	1
6	97985-04308	Screw, Washer	1
7	90464-18004	Clamp	1
8	90464-18004	Clamp	1
9	90464-26001	Clamp	1
10	90464-16001	Clamp	1
11	97E95-06516	Bolt, Hexagon with Washer Deep Recess	2
12	97E95-06516	Bolt, Hexagon with Washer Deep Recess	1
13	97E95-06512	Bolt, Hexagon with Washer Deep Recess	1
14	6CJ-85790-00	Thermo Sensor Assembly	1
15	90430-14115	Gasket	1
16	68V-82504-00	Oil Pressure Switch Assembly	1
17	69J-82563-01	Trim & Tilt Switch Assembly	1
18	69J-82587-01	Gasket	1
19	69J-83614-00	Bracket	1
20	90109-06M86	Bolt	2
21	6CJ-85780-02	Sensor, Knock	1
22	6DA-82553-00	Extension, Wire Lead	1
23	90464-16001	Clamp	1
24	90464-16001	Clamp	1
25	90465-13M18	Clamp	1
26	6P2-85896-00	Sensor, Cam Position	1
27	6P2-85075-00	O-ring	1
28	95D95-06016	Bolt, Flange Deep Recess	1
29	90465-11M59	Clamp	1
30	6EK-82553-11	Extension, Wire Lead	1
31	90464-16001	Clamp	1
32	90464-18004	Clamp	1

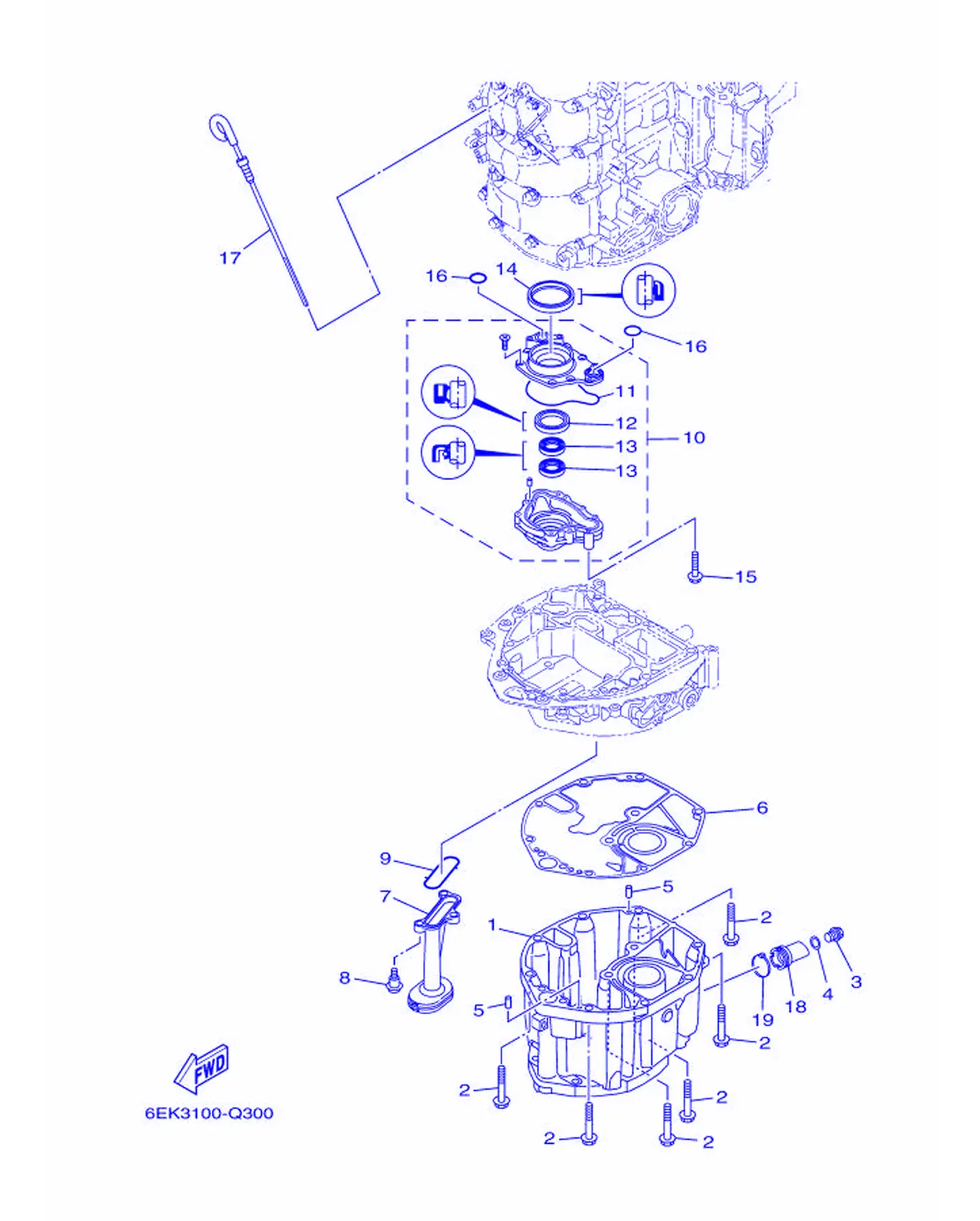

Fig. 11VMAX Oil Pan

REF	Part No.	Name	Qty
1	6EK-15311-02-CA	Oil Pan	1
2	97E75-10545	Bolt, Hexagon with Washer Deep Recess	6
3	90340-14M06	Plug, Straight Screw	1
4	90430-14M09	Gasket	1
5	93606-12019	Pin, Dowel	2
6	6EK-15312-01	Gasket, Oil Pan	1
7	67F-13411-00	Strainer,Oil	1
8	90109-06292	Bolt	3
9	67F-13415-00	Seal,OilStrainer	1
10	6EK-13300-00	Oil Pump Assembly	1
11	6EK-13329-00	Gasket, Pump Cover	1
12	6AW-13119-00	Oil Seal	1
13	69J-13631-00	Oil Seal	2
14	69J-11355-00	Seal,Cylinder 1	1
15	90105-06151	Bolt, Flange	4
16	93210-19MJ1	O-ring	2
17	6EK-15362-10	Plug, Oil Level	1
18	6EK-15316-00	Damper 1	1
19	90465-11M59	Clamp	1

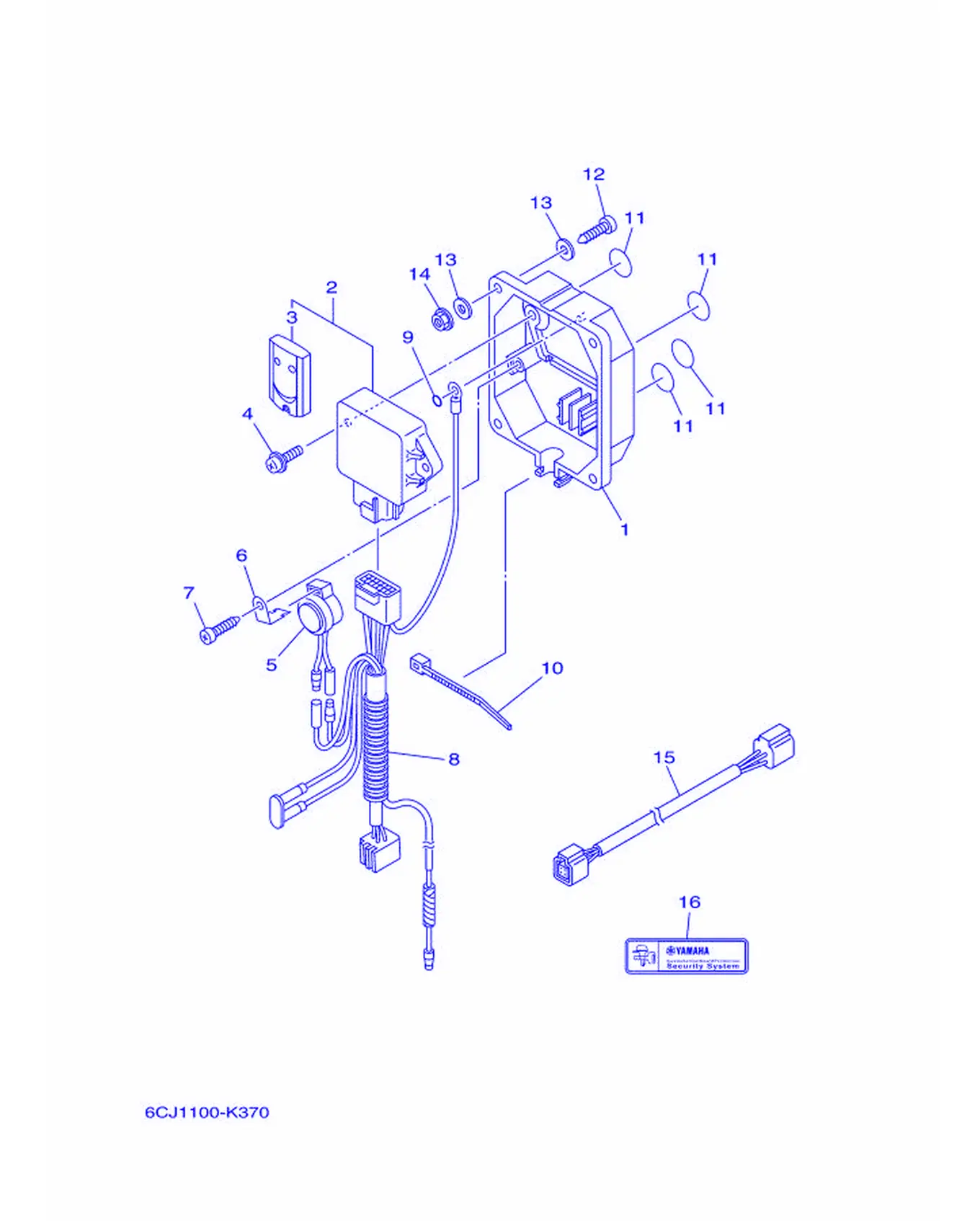

Fig. 12VMAX Optional Parts 1

REF	Part No.	Name	Qty
1	6Y8-86267-00	CaseComplete 1	1
2	6Y8-86260-20	Remote Control Unit Assembly	1
3	6AA-86261-10	Transmitter Complete	2
4	97980-06216	Screw, With Washer	2
5	6X4-83383-00	Buzzer	1
6	6X4-83386-00	Stay, Buzzer	1
7	97780-60620	Screw, Tapping	1
8	6Y8-82509-10	Wire, Sub Lead	1
9	93210-04279	O-ring	1
10	90465-11M10	Clamp	1
11	6Y8-8454G-00	Patch 1	4
12	90167-06M00	Screw, Tapping	4
12	97880-06035	Screw, Pan Head	4
13	90201-06M30	Washer,Plate	8
14	95780-06300	Nut, Flange	4
15	6Y8-82521-11	Pigtail Bus Wire (2FT)	1
16	6Y8-48277-00	Sticker 1	3

Fig. 13VMAX Optional Parts 2

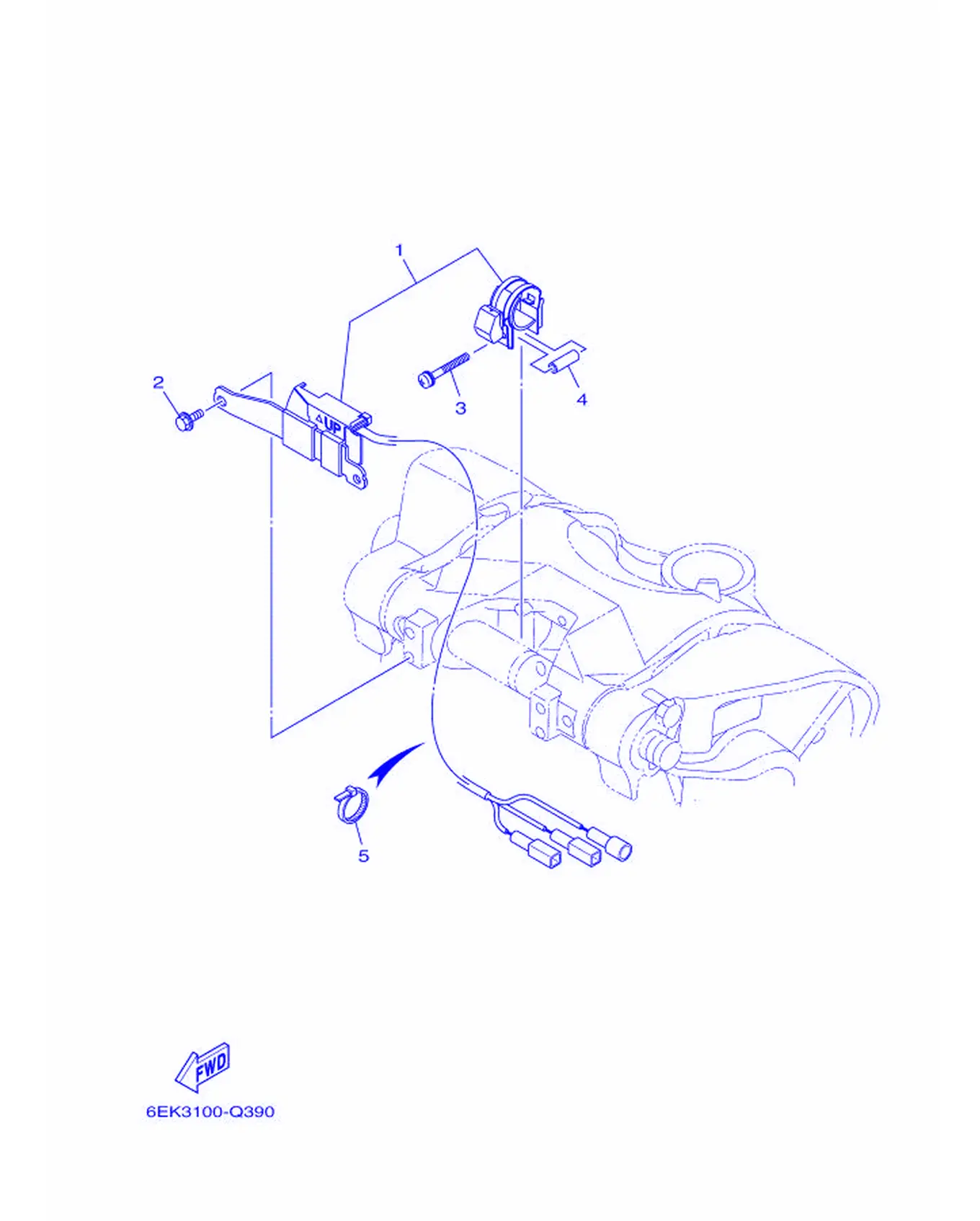

REF	Part No.	Name	Qty
1	63P-825E0-02	Tilt Limit Switch Assembly	1
2	97E95-06516	Bolt, Hexagon with Washer Deep Recess	2
3	90159-05059	Screw, With Washer	1
4	90387-05004	Color	1
5	90465-11M10	Clamp	5

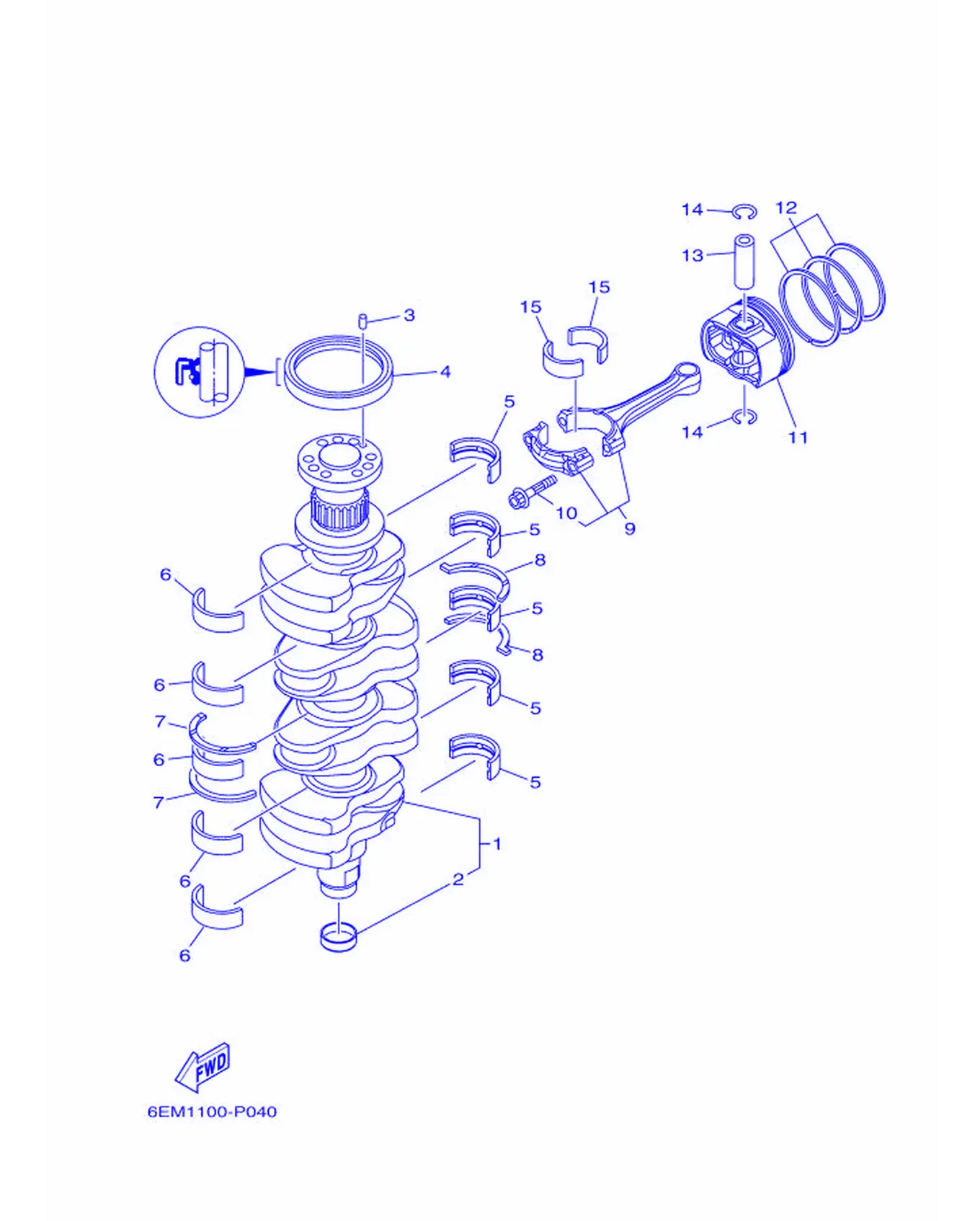

Fig. 14VMAX Crankshaft & Piston

VMAX 曲轴与活塞 VMAX Crankshaft & Piston Fig.

REF	Part No.	Name	Qty
1	6EK-11410-01	Crankshaft	1
2	6CB-11478-00	Collar	1
3	93606-12019	Pin, Dowel	1
4	93102-85008	Oil Seal	1
5	6EK-11416-00	Crankshaft Plain Bearing 1	5
5	6EK-11416-10	Crankshaft Plain Bearing 1	5
5	6EK-11416-20	Crankshaft Plain Bearing 1	5
5	6EK-11416-30	Crankshaft Plain Bearing 1	5
5	6EK-11416-40	Crankshaft Plain Bearing 1	5
6	6EK-11417-00	Crankshaft Plain Bearing 2	5
6	6EK-11417-10	Crankshaft Plain Bearing 2	5
6	6EK-11417-20	Crankshaft Plain Bearing 2	5
6	6EK-11417-30	Crankshaft Plain Bearing 2	5
6	6EK-11417-40	Crankshaft Plain Bearing 2	5
7	6EK-11426-01	Bearing, Thrust 1	2
8	6EK-11427-00	Bearing, Thrust 2	2
9	6EK-W1165-00	Connecting Rod Assembly	4
10	K1C-A3275-00	Bolt, Connecting Rod	2
11	6EK-11631-02-94	Piston (STD)	4
11	6EK-11635-02	Piston (0.25MM O/S)	4
12	6EK-11603-01	Piston Ring Set (STD)	4
12	6EK-11604-01	Piston Ring Set (0.25MM O/S)	4
13	6EK-11633-00	Pin, Piston	4
14	93450-19052	Circlip	8
15	6EK-11656-00	Connecting Rod Plain Bearing	8
15	6EK-11656-10	Connecting Rod Plain Bearing	8
15	6EK-11656-20	Connecting Rod Plain Bearing	8
15	6EK-11656-30	Connecting Rod Plain Bearing	8
15	6EK-11656-40	Connecting Rod Plain Bearing	8

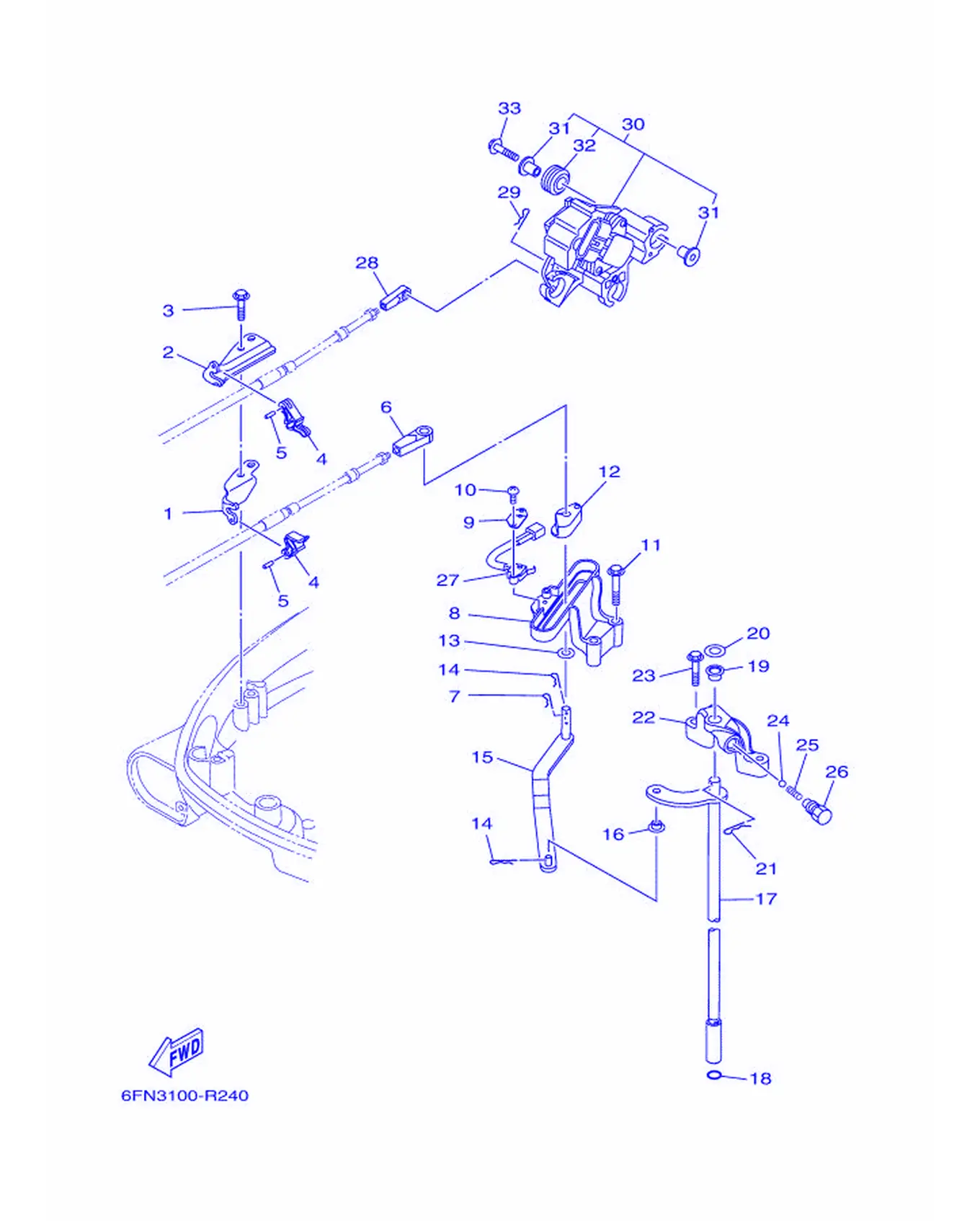

Fig. 15VMAX Control

REF	Part No.	Name	Qty
1	6EK-48531-01	Bracket, Remote Control 1	1
2	6EK-48532-00	Bracket, Remote Control 2	1
3	90109-06M81	Bolt	2
4	6EK-48538-00	Clamp, Cable 1	2
5	91690-30010	Pin,Spring	2
6	6E5-48344-00	Cable End, Remote Control	1
7	90468-18008	Clip	1
8	6EK-44117-01	Bracket	1
9	61A-82588-01	Plate	1
10	97985-04116	Screw, With Washer	2
11	95D75-06040	Bolt, Flange Deep Recess	2
12	63P-44122-00	Bushing, Shift Rod Lever	1
13	90202-08M20	Washer,Plate	1
14	90468-18008	Clip	2
15	6EK-44121-00	Lever, Shift Rod	1
16	90386-06M12	Bushing	1
17	6EK-44120-01	Handle Gear Shift Assembly	1
18	93210-09165	O-ring	1
19	90386-10001	Bushing	1
20	90201-11008	Washer, Plate	1
21	90468-180A0	Clip	1
22	6EK-44118-00	Bracket	1
23	95D95-06030	Bolt, Flange Deep Recess	2
24	93501-04M02	Ball	1
25	90501-12082	Spring, Compression	1
26	648-42715-00	Bushing	1
27	60V-8259F-01	Switch Assembly	1
28	6E5-48344-00	Cable End, Remote Control	1
29	90468-18008	Clip	1
30	6EM-8A410-00	Sensor Unit	1
31	69J-13716-00	Color	6
32	6EM-13593-00	Damper	3
33	90119-06297	Bolt, with Washer	3

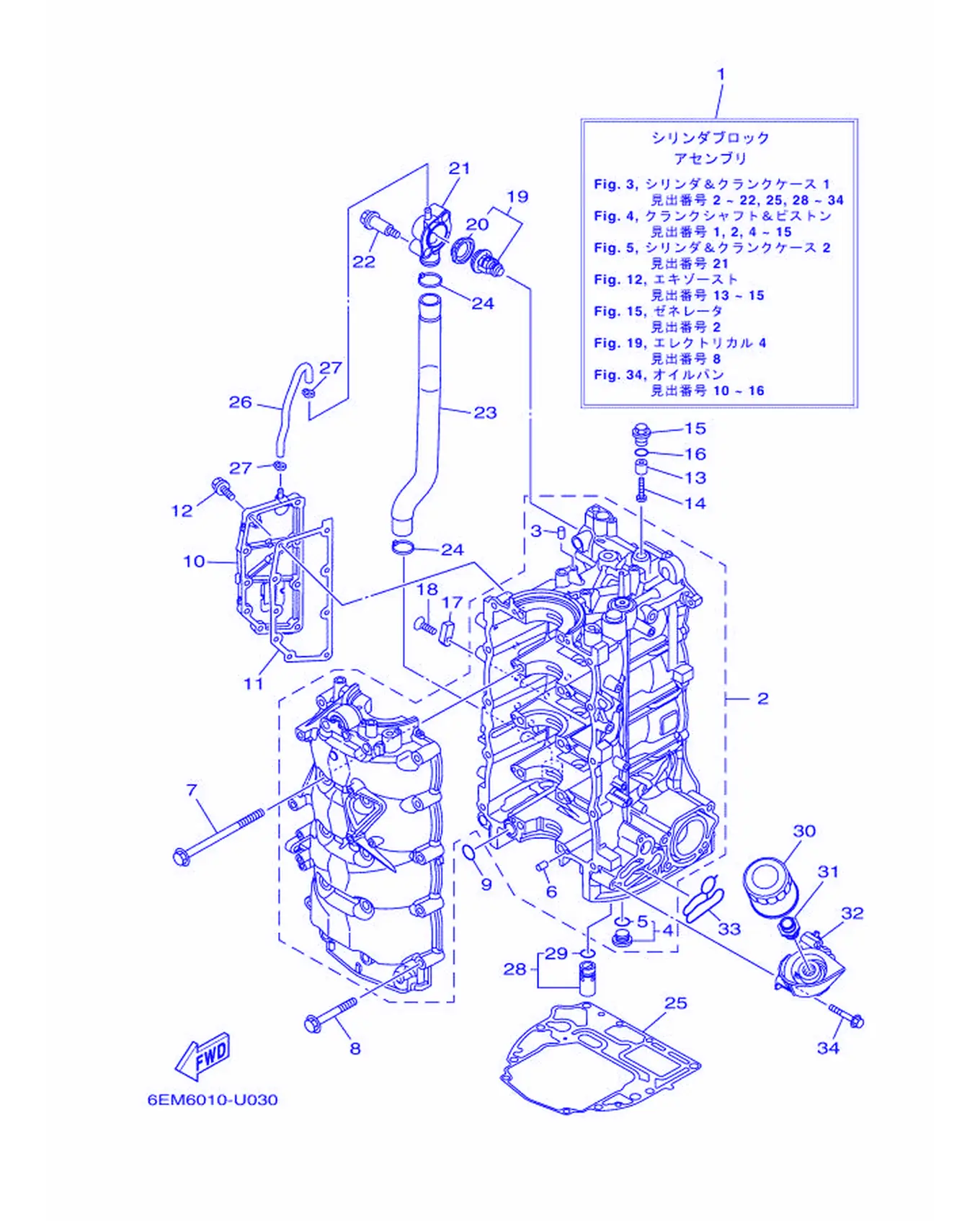

Fig. 16VMAX Cylinder & Crankcase 1

VMAX 气缸与曲轴箱 1 VMAX Cylinder & Crankcase 1 Fig.

REF	Part No.	Name	Qty
1	6EK-W009B-14-9S	Cylinder Block Assembly	1
2	6EK-15109-02-9S	Crankcase Assembly	1
3	93606-19M23	Pin, Dowel	1
4	6EK-11313-00	Blind Plug	1
5	93210-207A0	O-ring	1
6	93606-12019	Pin, Dowel	10
7	90119-10057	Bolt, with Washer	10
8	90105-08170	Bolt, Flange	10
9	93210-19MJ1	O-ring	1
10	6EK-15414-00-9S	Cover 1	1
11	6EK-15353-01	Gasket, Drain	1
12	90105-06037	Bolt, Flange	9
13	6G8-11325-00	Anode	1
14	98980-05025	Screw, Bind	1
15	6G8-11197-A0	Blind Plug	1
16	93210-13M63	O-ring	1
17	63P-11325-01	Anode	1
18	90151-06M02	Screw, Countersunk	1
19	6EK-12411-00	Thermostat	1
20	6EK-12412-00	Seal, Thermostat	1
21	6EK-12413-00	Cover, Thermostat	1
22	90109-06286	Bolt	2
23	6EK-1243A-00	Hose 1	1
24	90465-11M59	Clamp	2
25	6EK-11351-01	Gasket, Cylinder	1
26	6EK-12483-00	Pipe 3	1
27	90465-11M10	Clamp	2
28	6EK-13490-00	Relief Valve Assembly	1
29	6CB-13473-00	O-ring	1
30	5GH-13440-72	Element Assembly, Oil Cleaner	1
31	90401-20007	Bolt, Union	1
32	6EK-13446-00	Connector	1
33	6EK-13475-00	Gasket	1
34	90105-06151	Bolt, Flange	3

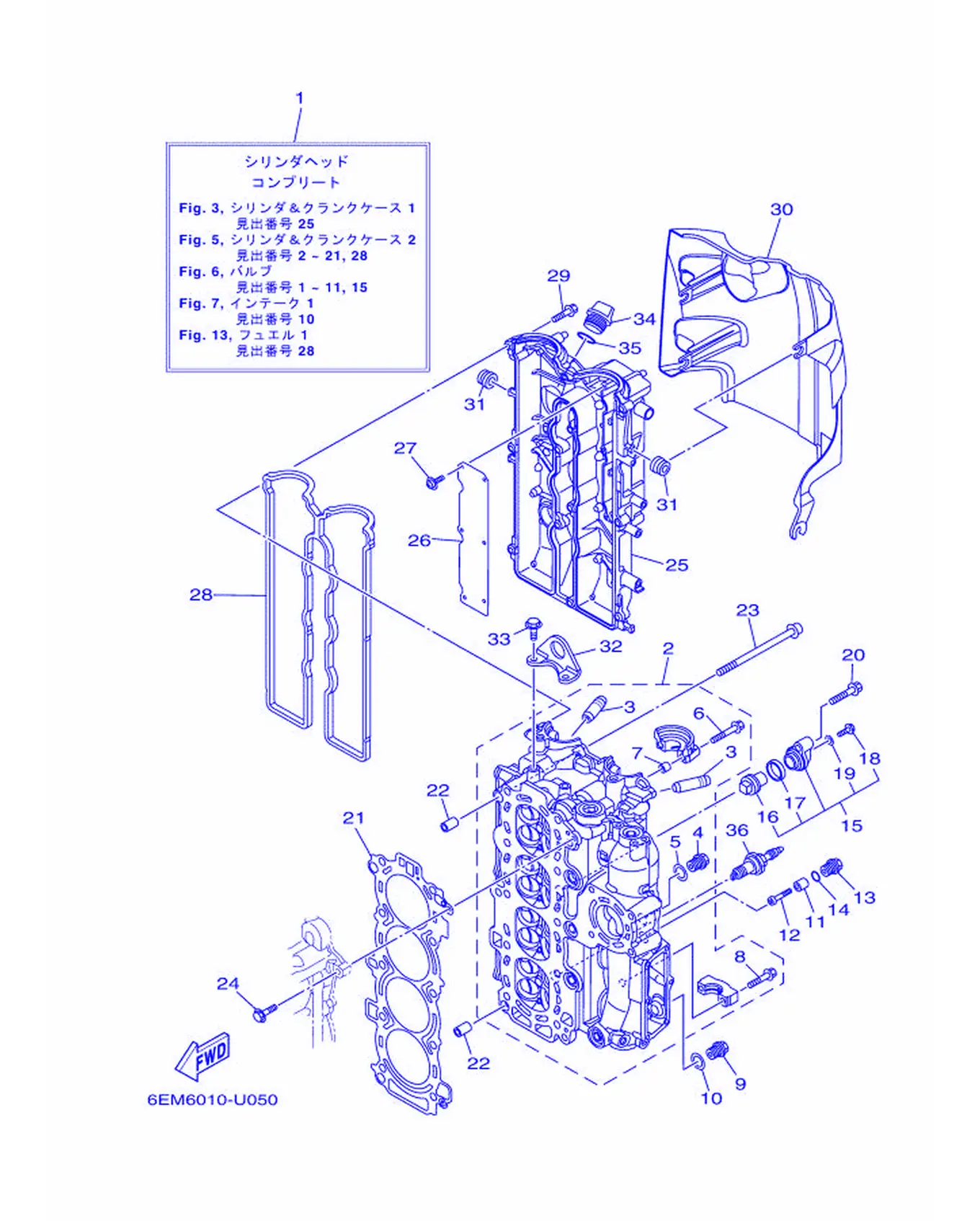

Fig. 17VMAX Cylinder & Crankcase 2

VMAX 气缸与曲轴箱 2 VMAX Cylinder & Crankcase 2 Fig.

REF	Part No.	Name	Qty
1	6EM-W009A-03-9S	Cylinder Head Complete	1
2	6EM-11110-00-9S	Cylinder Head Assembly	1
3	6DA-11133-10	Guide,Valve 1	16
4	90340-18M09	Plug, Straight Screw	1
5	90201-186F1	Washer,Plate	1
6	90119-07235	Bolt, Washer Cam Caps	4
7	91809-08006	Sleeve Guide Dowel	4
8	90119-07234	Bolt, with Washer	16
9	90340-14M06	Plug, Straight Screw	1
10	90430-14115	Gasket	1
11	6G8-11325-00	Anode	1
12	98980-05025	Screw, Bind	1
13	6G8-11197-A0	Blind Plug	1
14	93210-13M63	O-ring	1
15	69J-11301-02	Anode Cover Assembly	1
16	6ML-11325-00	Anode	1
17	67F-11328-01	Grommet	1
18	90105-06M07	Bolt, Flange	1
19	90430-06M03	Gasket	1
20	95D75-08040	Bolt, Flange Deep Recess	1
21	6EK-11181-00	Gasket, Cylinder Head 1	1
22	99530-14016	Pin, Dowel	2
23	90149-10072	Screw	10
24	90105-06037	Bolt, Flange	1
25	6EM-11191-00	Cover, Cylinder Head 1	1
26	6EK-11168-00	Cover, Breather	1
27	97607-04208	Screw, Pan Head Washer	6
28	6EK-11193-00	Gasket, Head Cover 1	1
29	95D95-06030	Bolt, Flange Deep Recess	12
30	6EK-11192-01	Cover, Cylinder Head 2	1
31	90480-12314	Grommet	4
32	6EK-11119-00	Hanger, Engine	1
33	95D95-08020	Bolt, Flange Deep Recess	2
34	6G8-15363-00	Plug,Oil	1
35	93210-24M79	O-ring	1
36	94709-00437	Spark Plug (NGK LKR6E)	4

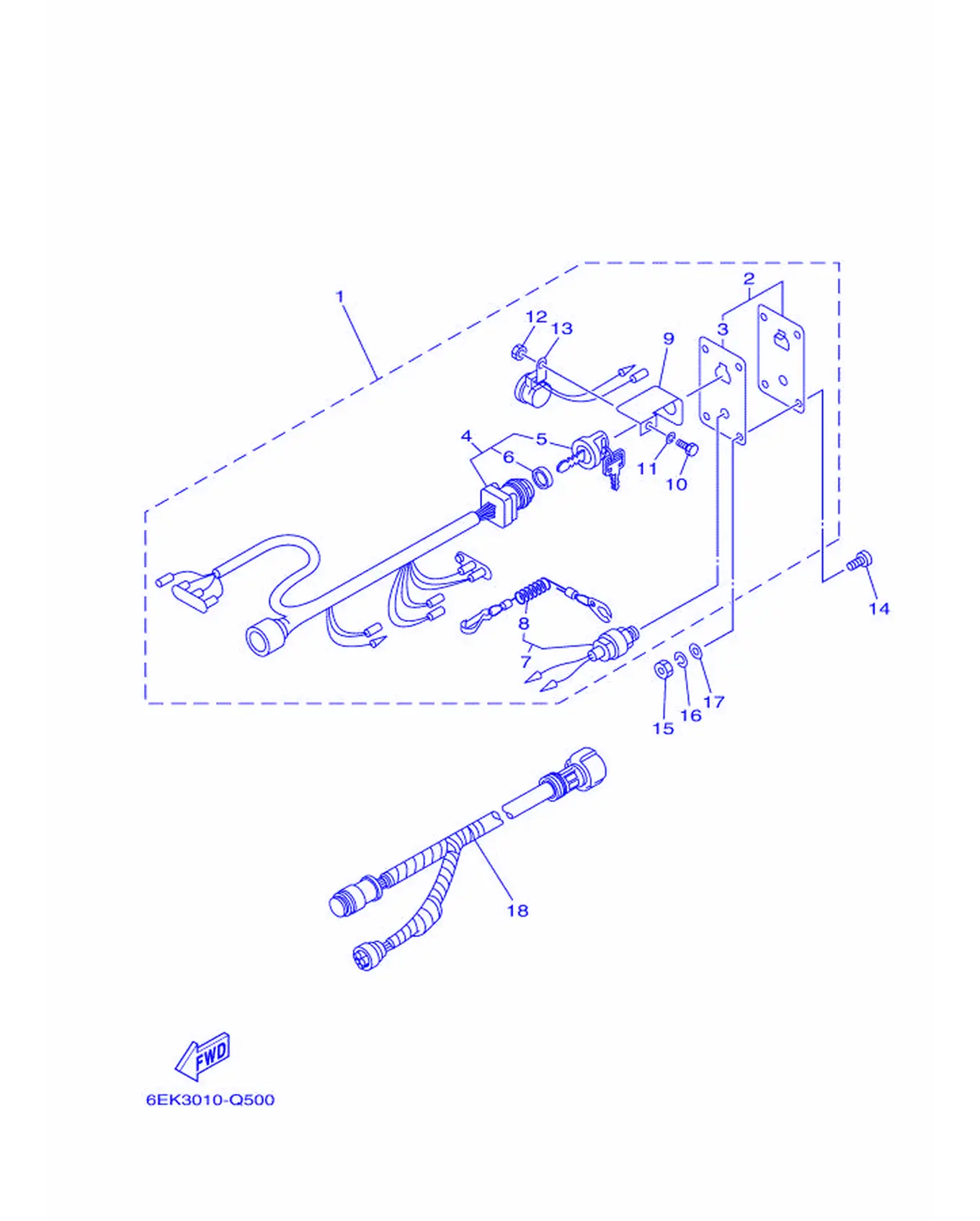

Fig. 18VMAX Switch & Panel

REF	Part No.	Name	Qty
1	6R5-82570-0A	Panel Switch Assembly	1
2	704-82571-02	Panel, Switch	1
3	6R5-82588-01	Plate	1
4	6R5-82510-04	Main Switch Assembly	1
5	676-82577-01	Cap, Key	1
6	703-82532-00	Cap	1
7	688-82575-02	Engine Stop Switch Assembly	1
8	682-82556-00	Stopper	1
9	64D-82581-00	Stay, Cord Clamp	1
10	97303-05012	Bolt	1
11	92903-05100	Washer,Spring	1
12	95303-05700	Nut	1
13	6R5-83383-00	Buzzer	1
14	90149-05M05	Screw	4
15	95303-05600	Nut	4
16	92903-05100	Washer,Spring	4
17	92903-05600	Washer,Plate	4
18	688-8258A-70	Extension, Wire Harness	1

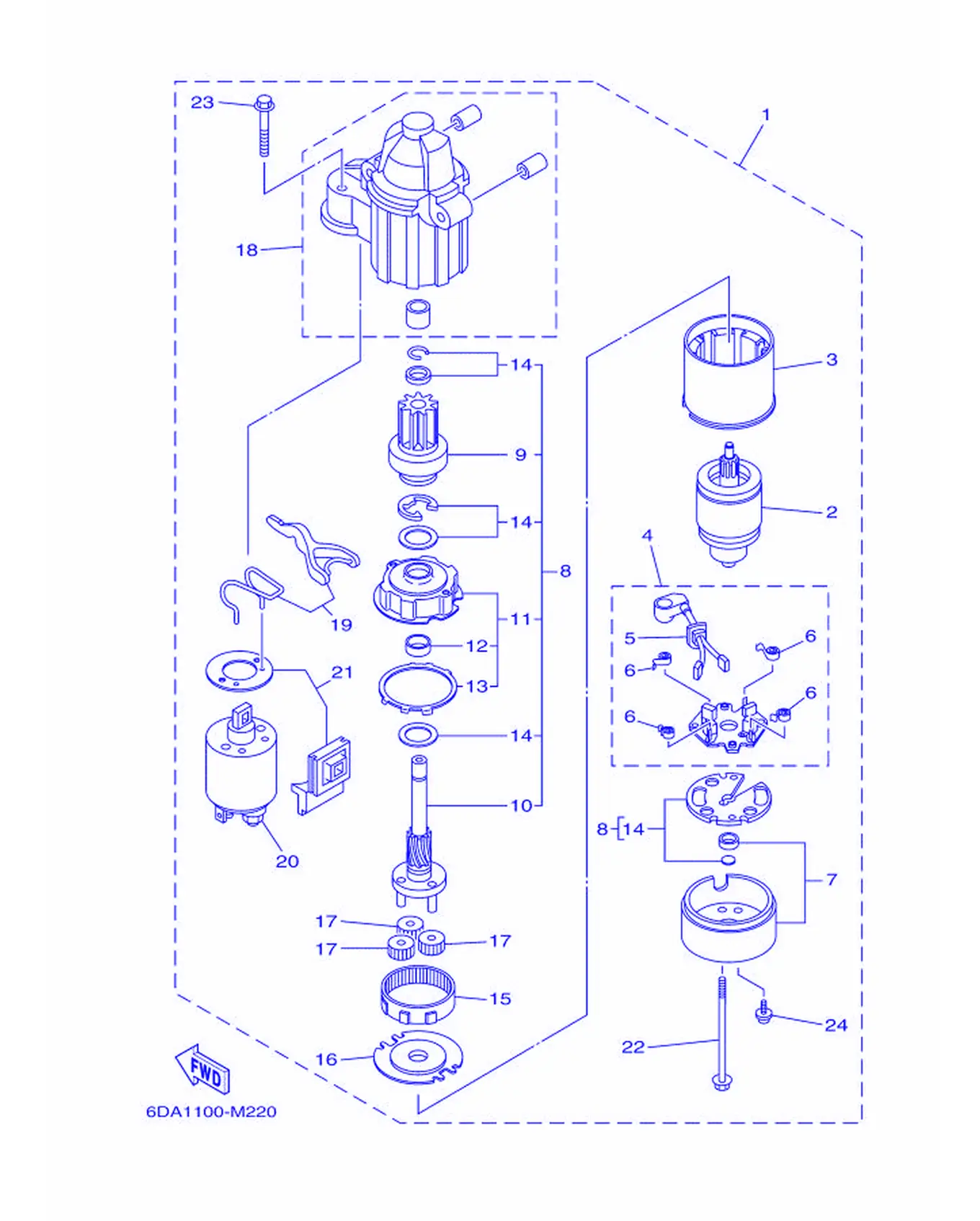

Fig. 19VMAX Starting Motor

REF	Part No.	Name	Qty
1	6EM-81800-02	Starting Motor Assembly	1
2	67F-81850-00	Armature Assembly	1
3	67F-81810-00	Stator Assembly	1
4	69J-81840-11	Brush Holder Assembly	1
5	69J-81801-11	Brush Set	1
6	67F-81813-00	Spring, Brush	4
7	6CB-81820-00	Rear Bracket Assembly	1
8	6CB-81807-00	Gear Assembly, Starting Motor	1
9	6CB-81832-00	Clutch, Overrun	1
10	6CB-81836-00	Shaft, Pinion	1
11	67F-81821-00	Bracket, Center 1	1
12	67F-81841-00	Bearing	1
13	67F-8183R-00	Gasket	1
14	6CB-81809-00	Washer Kit	1
15	67F-81891-00	Gear, Ring	1
16	67F-81830-00	Bracket, Center 2	1
17	60V-8183T-00	Gear, Idler	3
18	6CB-81842-00	Cover	1
19	6C5-81839-00	LeverAssembly	1
20	6EM-81941-01	StarterRelayAssembly	1
21	6C5-81869-00	Cover, Dust	1
22	6CB-81826-00	Bolt	2
23	69J-81828-00	Bolt 2	2
24	67F-81846-00	Screw	2

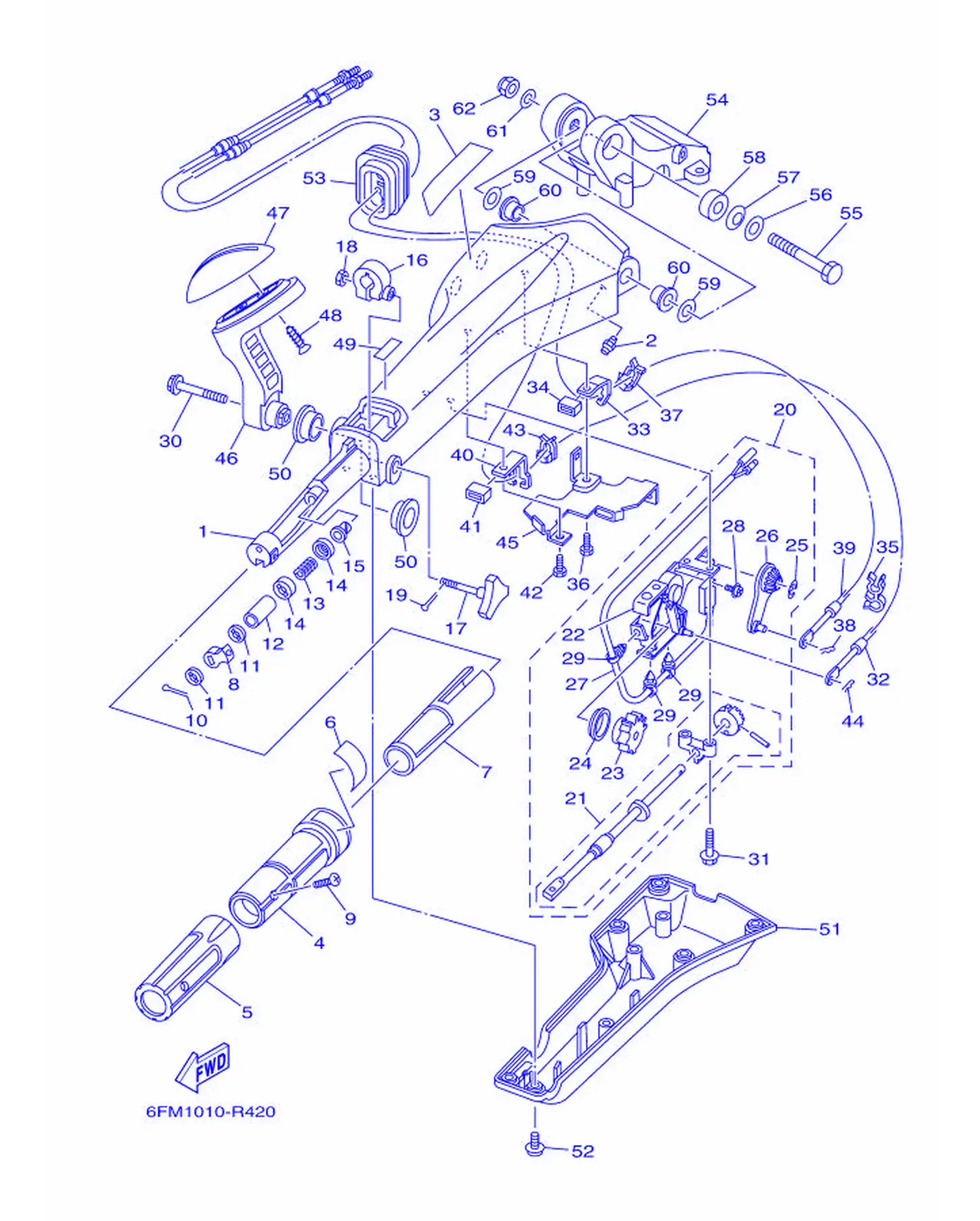

Fig. 20VMAX Steering 1

REF	Part No.	Name	Qty
1	6X4-42111-02-8D	Handle,Steering	1
2	93700-06002	Nipple, Grease	1
3	6X4-48215-00	Graphic	1
4	6X4-42119-01	Grip,SteeringHandle	1
5	6X4-42177-01	Rubber, Handle	1
6	6X4-42137-00	Indicator, Throttle	1
7	6X4-41291-00	Bushing	1
8	6X4-44139-01	Color	1
9	90152-05007	Screw, Countersunk	1
10	91490-20010	Pin, Cotter	1
11	6X4-44177-00	Washer	2
12	6X4-42128-00	Collar, Distance 1	1
13	90501-23215	Spring, Compression	1
14	6X4-44188-00	Washer	2
15	90386-08032	Bushing	1
16	63D-42126-00	Friction, Steering Handle	1
17	6X4-48154-00	Knob, Throttle	1
18	95380-06600	Nut, Hexagon	1
19	91490-20010	Pin, Cotter	1
20	6X4-44100-01	Shift Link Assembly	1
21	6X4-42115-00	Shaft, Steering Handle	1
22	6X4-44102-00	Shift Assist Assembly	1
23	6X4-47731-01	Gear, Drive	1
24	6X4-44132-00	Bushing	1
25	6X4-14137-00	Clip	1
26	6X4-48261-00	Arm,Throttle	1
27	6X4-82540-00	Neutral Switch Assembly	1
28	703-48129-00	Screw 3	2
29	6X4-42821-00	Band, Clamp	3
30	97E95-08540	Bolt, Hexagon with Washer Deep Recess	1
31	97E95-06530	Bolt, Hexagon with Washer Deep Recess	2
32	6EK-48321-00	Cable	1
33	6X4-48538-00	Clamp,Cable 1	1
34	6X4-26367-01	Protector	1
35	90464-09M42	Clamp	1
36	97D95-06014	Bolt, Hexagon Deep Recess	1
37	63D-48538-00	Clamp,Cable 1	1
38	90468-10005	Clip	1
39	6EK-26301-00	Throttle Cable Assembly	1
40	6X4-48538-10	Clamp,Cable 1	1
41	6X4-26367-01	Protector	1
42	97D95-06014	Bolt, Hexagon Deep Recess	1
43	63D-48538-00	Clamp,Cable 1	1
44	90468-10005	Clip	1
45	6X4-42159-00	Stay	1
46	6X4-44159-A0-8D	Handle, Gear Shift	1
47	6X4-44173-00	Lever, Shift Control	1
48	97780-60920	Screw, Tapping	2
49	6X3-44191-00	Indicator, Shift	1
50	90386-26MA3	Bushing	2
51	6X4-42131-11	Cover,HandleSteering	1
52	97985-06216	Screw, With Washer	6
53	6X4-42725-01	Grommet	1
54	63D-42121-22-8D	Bracket, Carling	1
55	90101-12014	Bolt, Hexagon	1
56	92990-12200	Washer, Plain	1
57	90206-12M22	Washer, Wave	1
58	90387-12M02	Color	1
59	90201-12035	Washer,Plate	2
60	90386-12003	Bushing	2
61	92990-12600	Washer,Plate	1
62	90185-12M12	Nut, Self-Locking	1

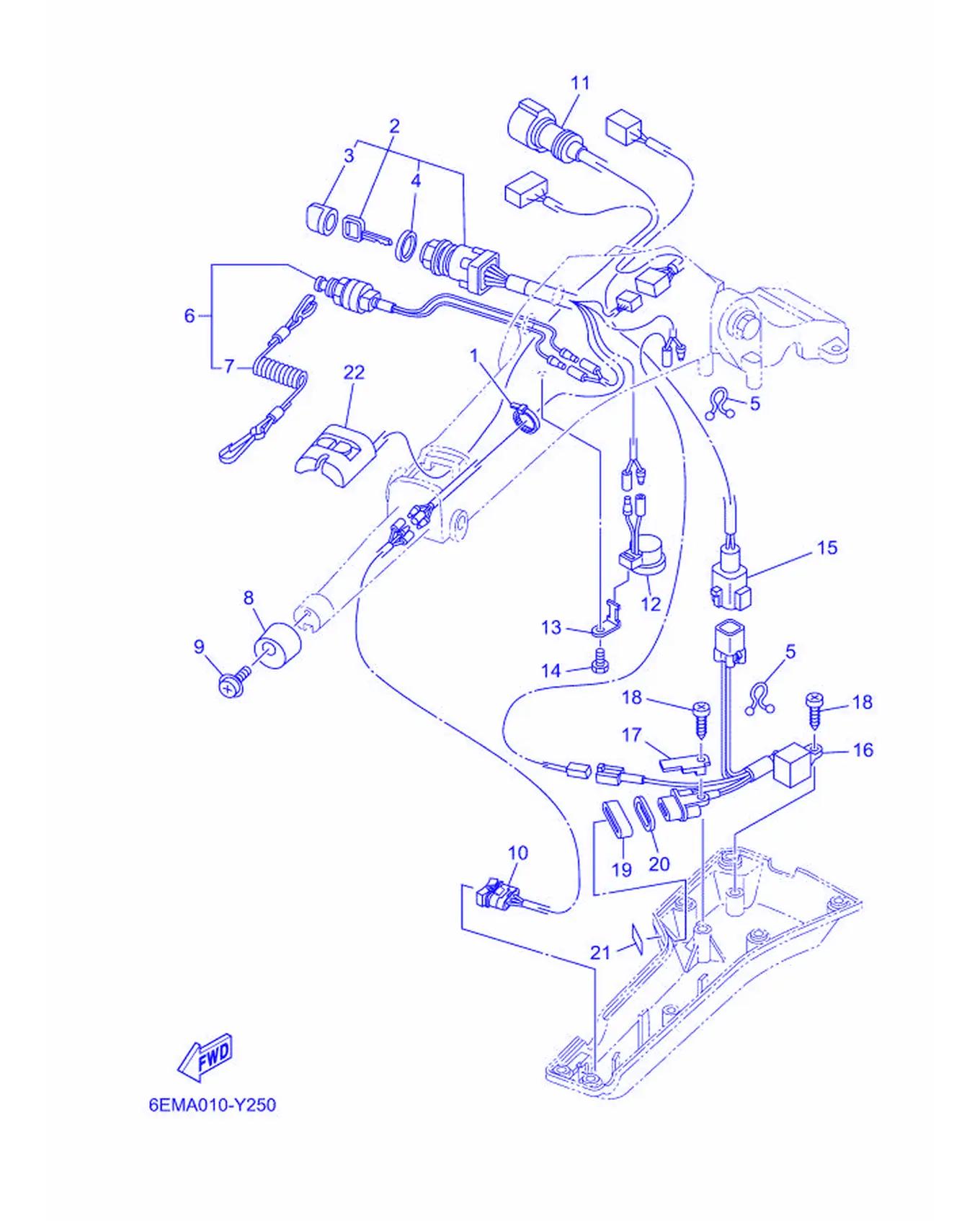

Fig. 21VMAX Steering 2

REF	Part No.	Name	Qty
1	90465-11M10	Clamp	1
2	6X4-82510-11	MainSwitchAssembly	1
3	676-82577-01	Cap, Key	1
4	703-82532-00	Cap	1
5	90464-08M07	Clamp	2
6	688-82575-02	Engine Stop Switch Assembly	1
7	682-82556-00	Stopper	1
8	6X4-42728-00	Cap	1
9	97980-06216	Screw, With Washer	1
10	6X4-82563-11	Trim & Tilt Switch Assembly	1
11	6X4-82586-11	Extension, Wire Harness (L:950MM)	1
12	6X4-83383-00	Buzzer	1
13	6X4-83386-00	Stay, Buzzer	1
14	97D95-06014	Bolt, Hexagon Deep Recess	1
15	6X4-83653-20	Wire,Lead (L: 700MM)	1
16	6C5-84301-10	Pilot Light Assembly 1	1
17	6X4-44114-00	Stopper	1
18	97780-60620	Screw, Tapping	2
19	6X4-42727-01	Grommet	1
20	6FM-83589-00	Gasket	1
21	6X4-85415-00	Mark	1
22	6X4-81860-00	SwitchAssembly	1

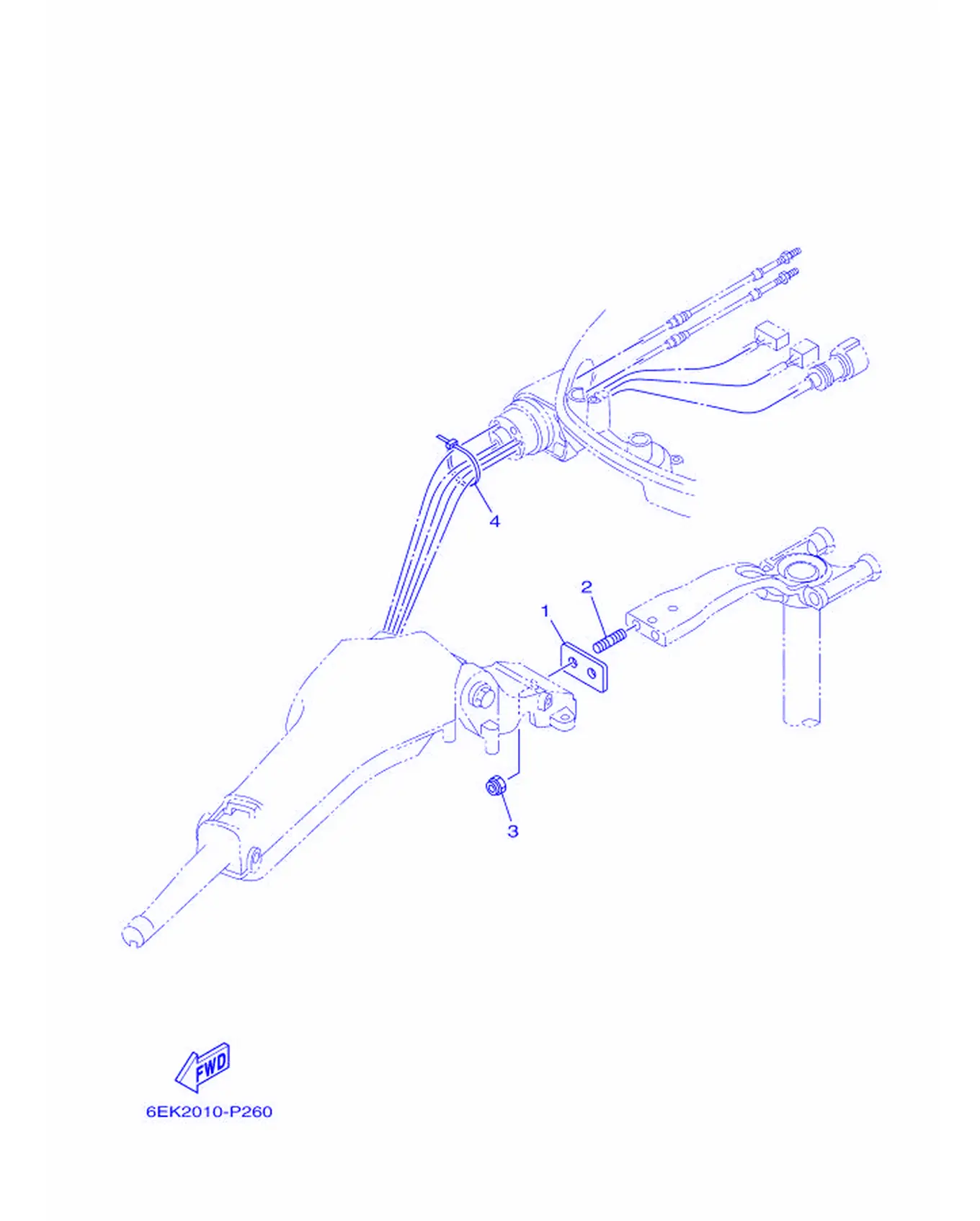

Fig. 22VMAX Steering 3

REF	Part No.	Name	Qty
1	6EK-42121-00	Bracket, Carling	1
2	90116-10063	Bolt, Stud	2
3	90185-10027	Nut, Self-Locking	2
4	90465-13M24	Clamp	1

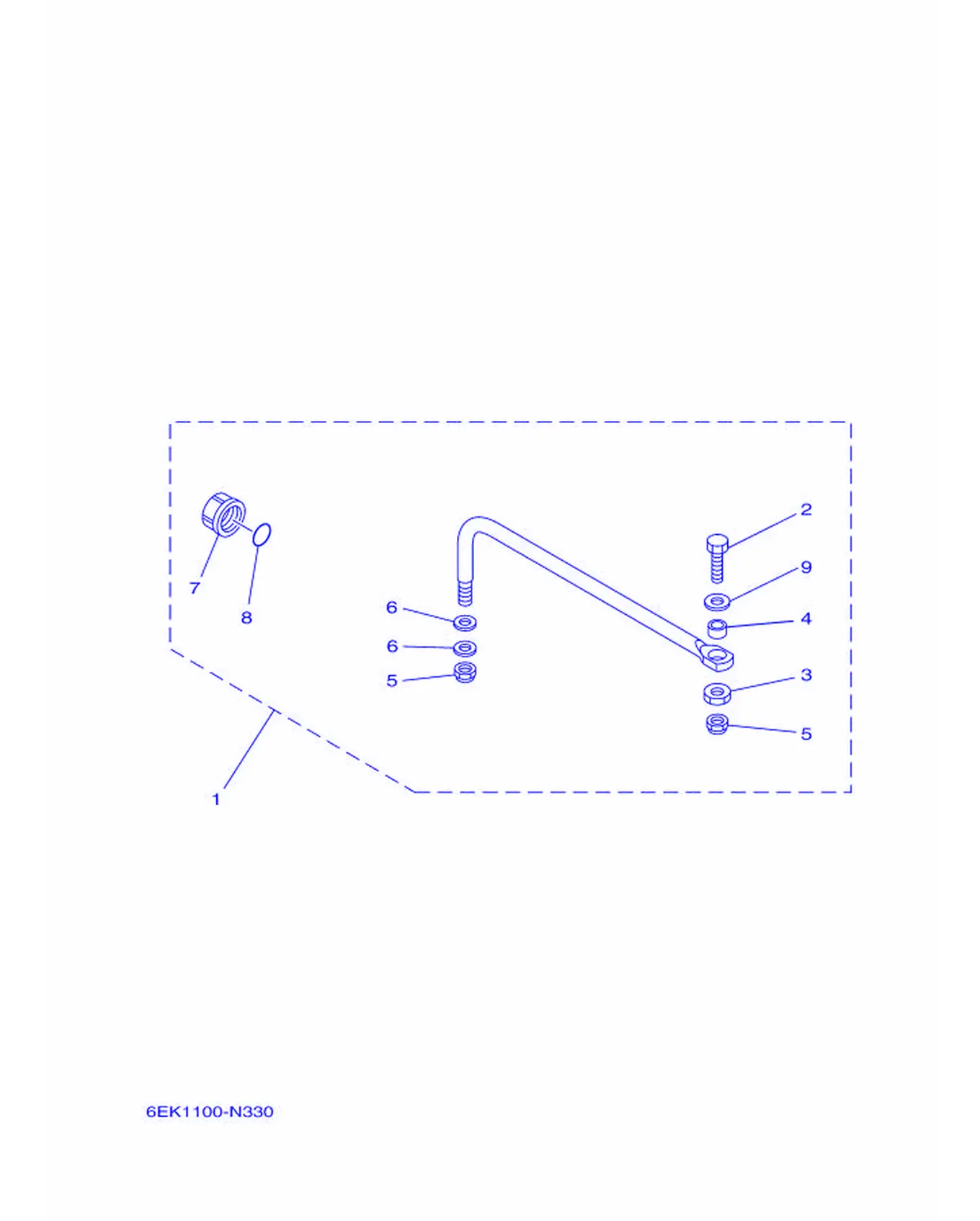

Fig. 23VMAX Steering Guide

REF	Part No.	Name	Qty
1	6EK-61350-00	Steering Guide Attachment Kit	1
2	6E5-61355-00	Bolt	1
3	90170-09M03	Nut	1
4	90387-10M42	Collar	1
5	90185-09M01	Nut, Self-Locking	2
6	90201-10M20	Washer,Plate	2
7	6E5-43145-01	Cap, Clamp Bracket	1
8	93210-16275	O-ring	1
9	90201-10081	Washer, Plate	1

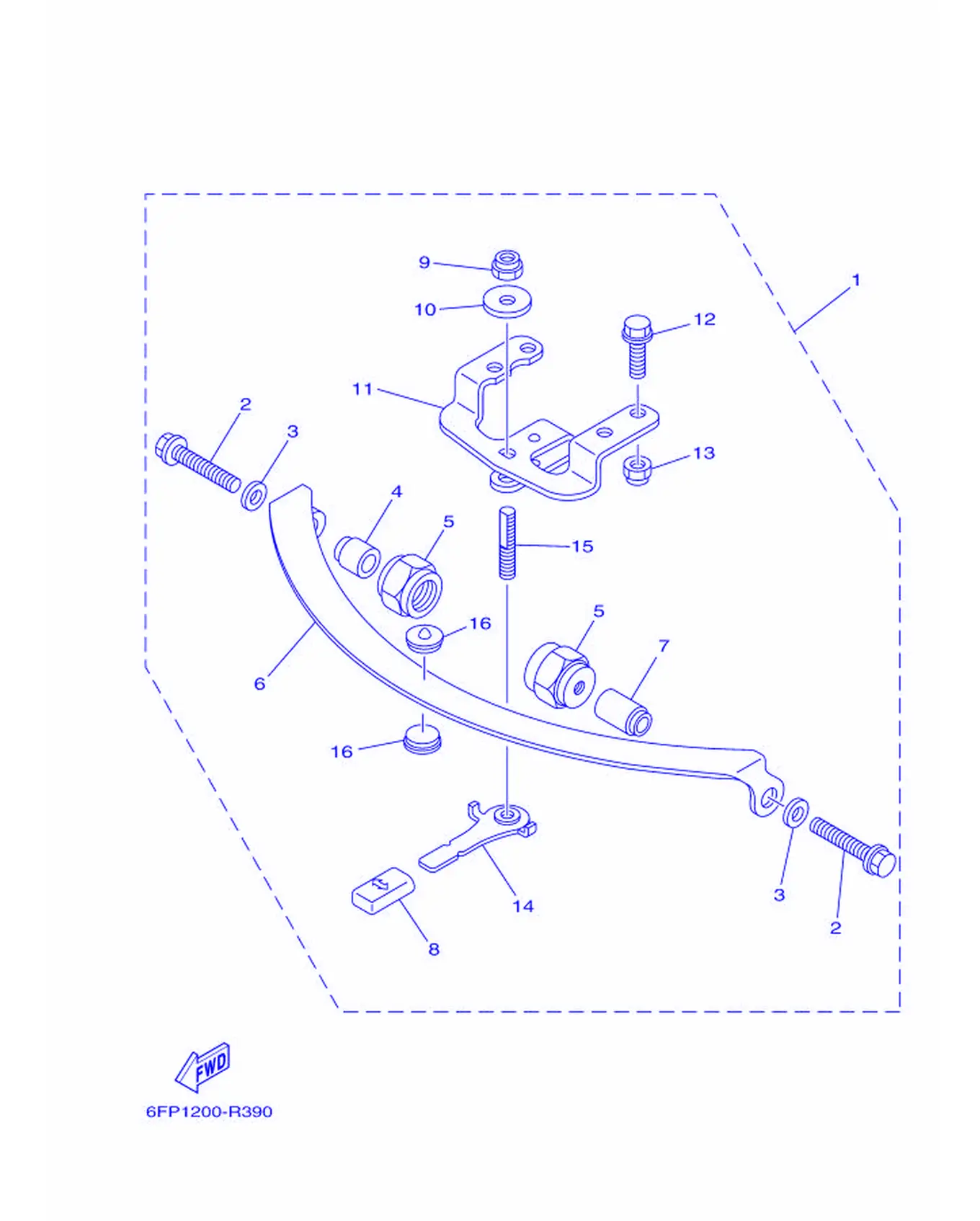

Fig. 24VMAX Steering Friction

REF	Part No.	Name	Qty
1	67G-42508-12	Steering Friction Assembly	1
2	90119-08193	Bolt, with Washer	2
3	90201-08M01	Washer,Plate	2
4	67G-42541-00	Damper	1
5	67G-42546-00	Nut	2
6	63D-42527-00	Plate, Friction	1
7	67G-42541-10	Damper	1
8	682-43318-01	Cover	1
9	90185-10M14	Nut, Self-Locking	1
10	90201-10M76	Washer	1
11	6X4-42526-00	Plate, Friction	1
12	97E95-08525	Bolt, Hexagon with Washer Deep Recess	2
13	90185-08057	Nut, Self-Locking	2
14	67G-42561-00	Knob	1
15	67G-42562-00	Shaft Steering Lock Assembly	1
16	63D-42528-00	Plate, Friction	2

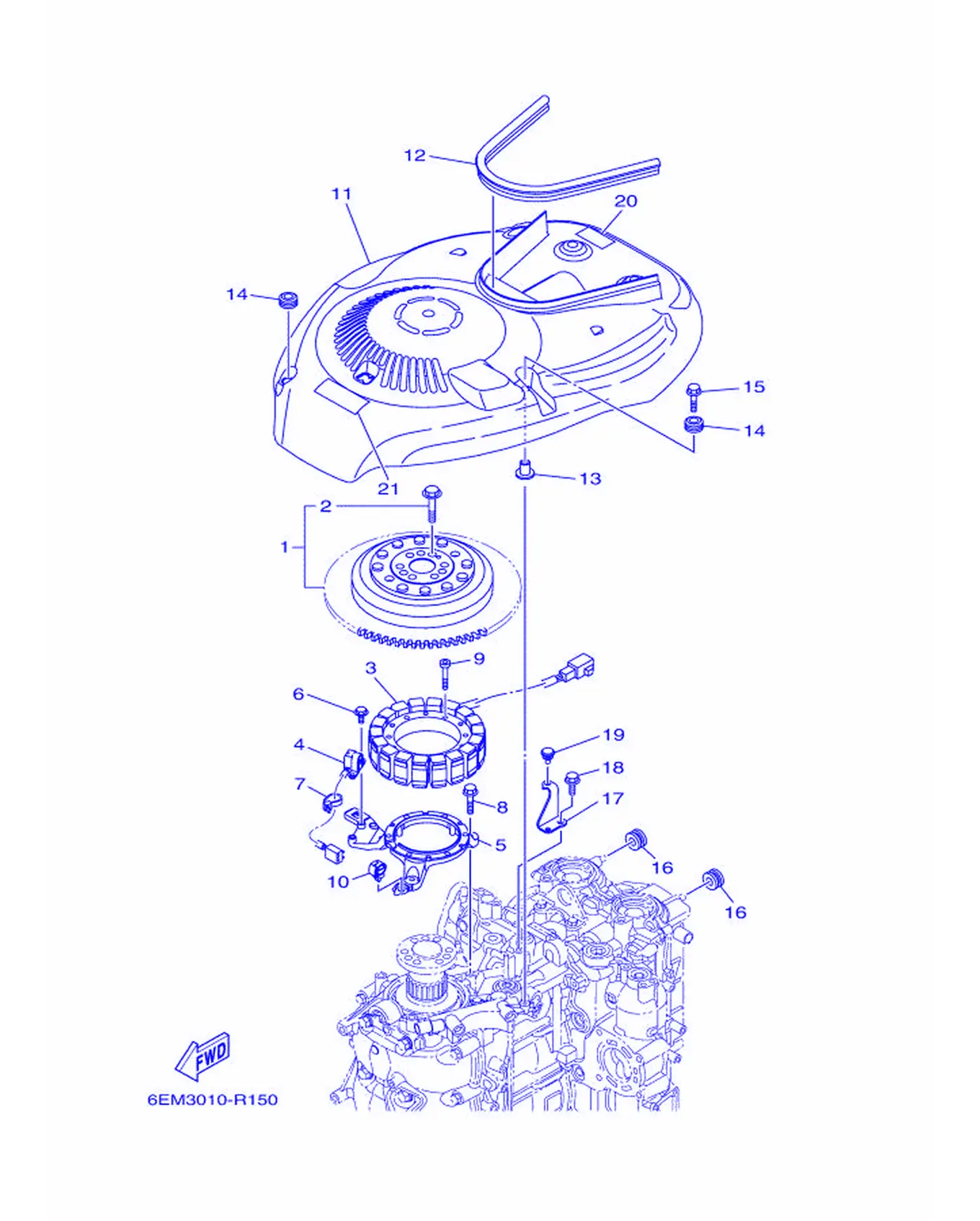

Fig. 25VMAX Generator

REF	Part No.	Name	Qty
1	6EK-W8145-02	Rotor Assembly (with Bolt)	1
2	6EK-W9010-00	BoltSet	1
3	6EK-81410-00	Starter Assembly	1
4	6CB-85580-01	Coil, Pulser	1
5	6EK-85561-00	Base, Magnet	1
6	97595-05516	Bolt, with Washer	2
7	90465-13M97	Clamp	1
8	95D95-06030	Bolt, Flange Deep Recess	3
9	91312-06035	Bolt, Hexagon Socket Head	6
10	90464-13249	Clamp	1
11	6EK-81337-01	Cover, Flywheel	1
12	6EK-42617-00	Damper, Foam	1
13	90387-06119	Color	1
14	6A0-82317-01	Damper, Ignition Coil	2
15	95D95-06030	Bolt, Flange Deep Recess	1
16	90480-12314	Grommet	2
17	6EK-8132G-00	Plate	1
18	95D95-06016	Bolt, Flange Deep Recess	1
19	90480-06M19	Grommet	1
20	6EK-13437-02	Mark, Caution	1
21	6EE-81994-01	Label, Safety	1

Fig. 26VMAX Periodic Maintenance Parts

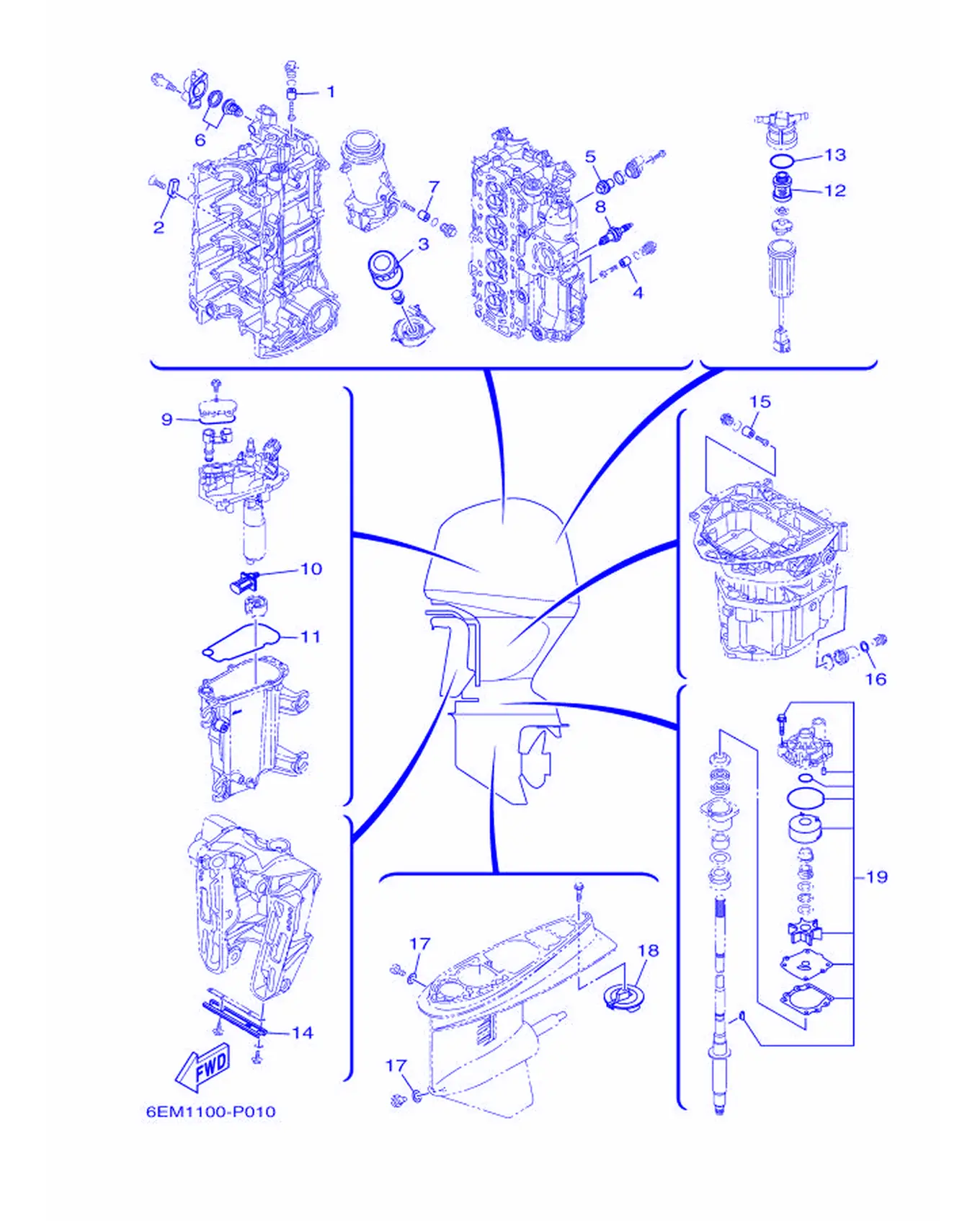

VMAX 定期更换件 VMAX Periodic Maintenance Parts Fig.

REF	Part No.	Name	Qty
1	6G8-11325-00	Anode	1
2	63P-11325-01	Anode	1
3	5GH-13440-72	Element Assembly, Oil Cleaner	1
4	6G8-11325-00	Anode	1
5	6ML-11325-00	Anode	1
6	6EK-12411-00	Thermostat	1
7	6EK-11325-00	Anode	1
8	94709-00437	Spark Plug (NGK LKR6E)	4
9	6CB-13016-00	O-ring	1
10	63P-13915-00	Filter	1
11	6CB-14984-00	Gasket,FloatChamber	1
12	6D8-24563-00	Element, Filter	1
13	6D8-24564-00	Gasket	1
14	6H1-45251-03	Anode	1
15	6G8-11325-00	Anode	1
16	90430-14M09	Gasket	1
17	90430-08003	Gasket	2
18	6E5-45371-01	Tab Trim	1
19	68V-W0078-01	Water Pump Repair Kit	1

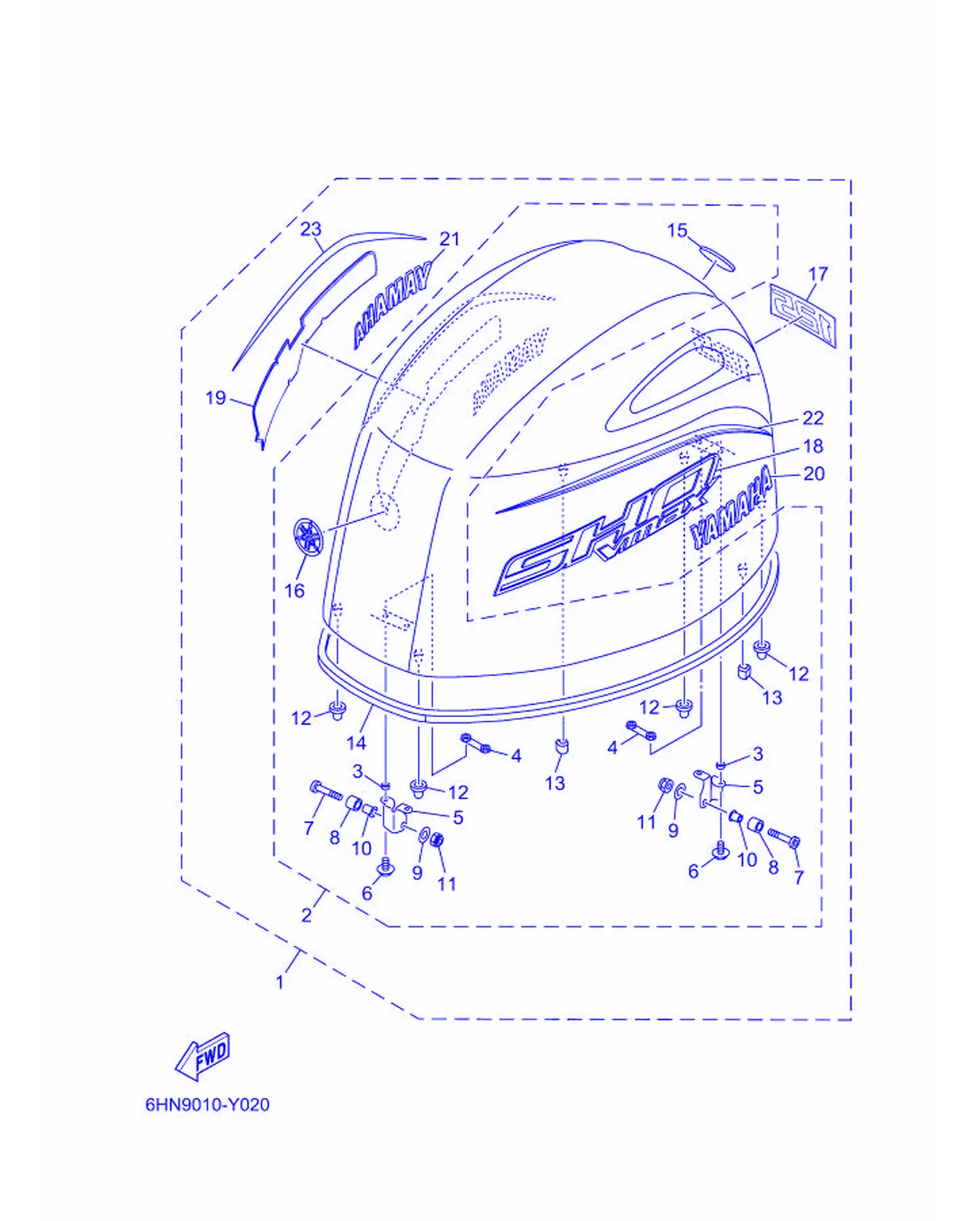

Fig. 27VMAX Top Cowling

REF	Part No.	Name	Qty
1	6HN-42610-10-NA	Top Coupling Assembly	1
2	6FN-4261A-10-NA	Top Cowling (Graphic)	1
3	90387-07046	Collar	4
4	6EK-42646-00	Plate, Clamp	2
5	6EK-42647-00	Holder, Clamp Band	2
6	90105-06039	Bolt, Flange	4
7	90111-08078	Bolt	2
8	90387-10094	Collar	2
9	92990-08600	Washer,Plate	2
10	90387-08M45	Color	2
11	95780-08300	Nut, Flange	2
12	68F-42663-01	Damper 2	4
13	6EK-42662-01	Damper	2
14	6EK-42615-01	Seal	1
15	6DA-42697-00	Tuning Fork Mark	1
16	6EH-42697-00	Tuning Fork Mark	1
17	6HN-42678-10	Graphic, Rear	1
18	6FN-42675-10	Graphic, Side 1	1
19	6FN-42676-10	Graphic, Side 2	1
20	6FN-2153A-00	Emblem, Yamaha	1
21	6FN-2153B-00	Emblem, Yamaha	1
22	6FN-42683-00	Mark, Coupling	1
23	6FN-42684-00	Mark, Coupling	1

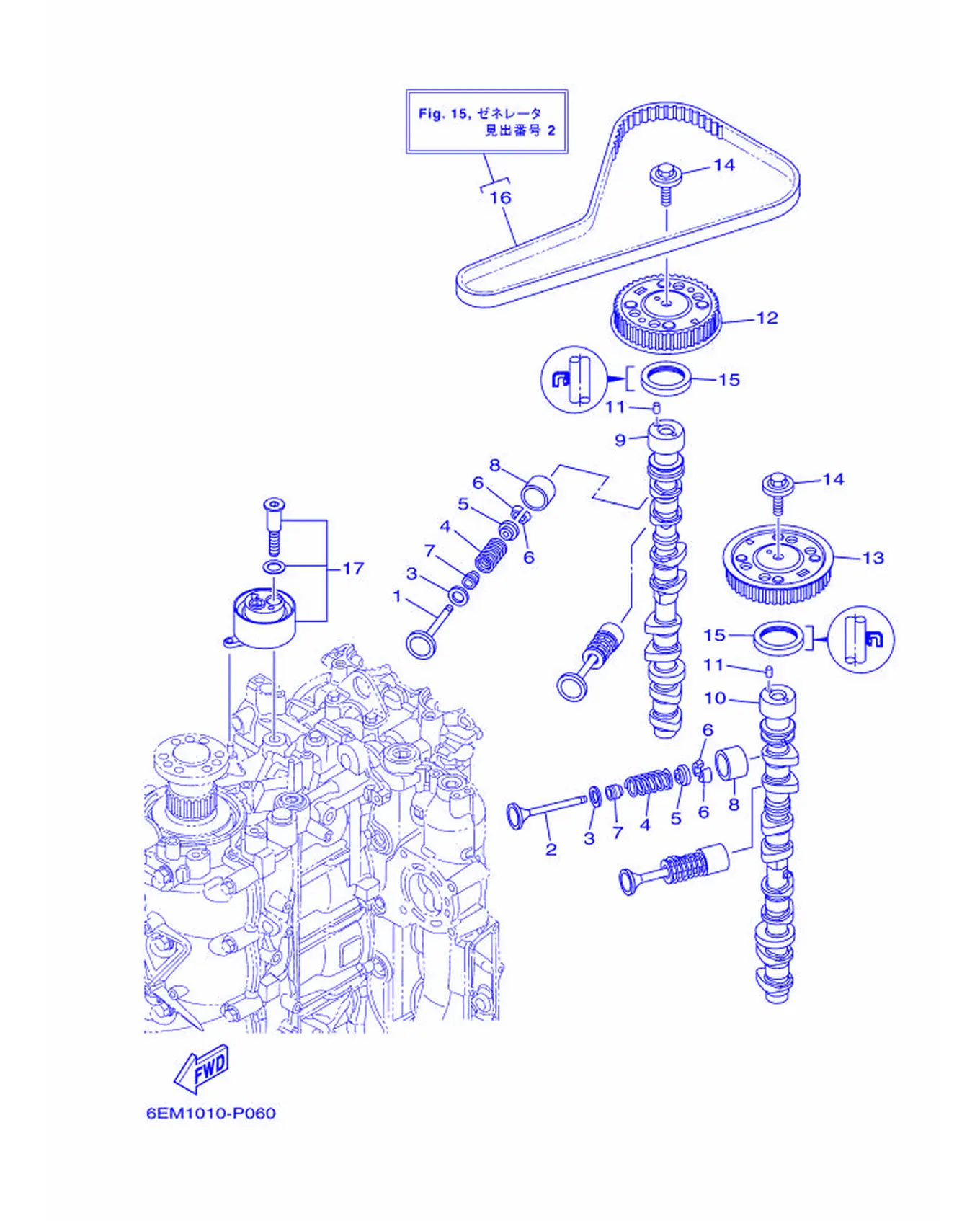

Fig. 28VMAX Valve

REF	Part No.	Name	Qty
1	6EK-12111-00	Valve, Intake	8
2	6EK-12121-00	Valve, Exhaust	8
3	62Y-12116-00	Seat,ValveSpring	16
4	30X-12114-00	Spring, Valve Outa	16
5	30X-12117-00	Retainer,ValveSpring	16
6	30X-12118-00	Cotter, Valve	32
7	51Y-12119-00	Seal, Valve Stem	16
8	6D8-12153-00	Lifter, Valve (12)	16
8	6D8-12153-10	Lifter, Valve (14)	16
8	6D8-12153-20	Lifter, Valve (16)	16
8	6D8-12153-30	Lifter, Valve (18)	16
8	6D8-12153-40	Lifter, Valve (20)	16
8	6D8-12153-50	Lifter, Valve (22)	16
8	6D8-12153-60	Lifter, Valve (24)	16
8	6D8-12153-70	Lifter, Valve (26)	16
9	6EM-12171-00	Camshaft 1	1
10	6EK-12181-00	Camshaft 2	1
11	93605-10108	Pin, Dowel	2
12	6EK-11537-00	Gear, Driven	1
13	6EK-11567-00	Gear, Driven 2	1
14	90119-10050	Bolt, With Washer	2
15	93102-38008	OilSeal	2
16	6EK-W4624-00	Belt (Rotor Bolt Included)	1
17	6EK-11590-03	Tensioner Assembly	1

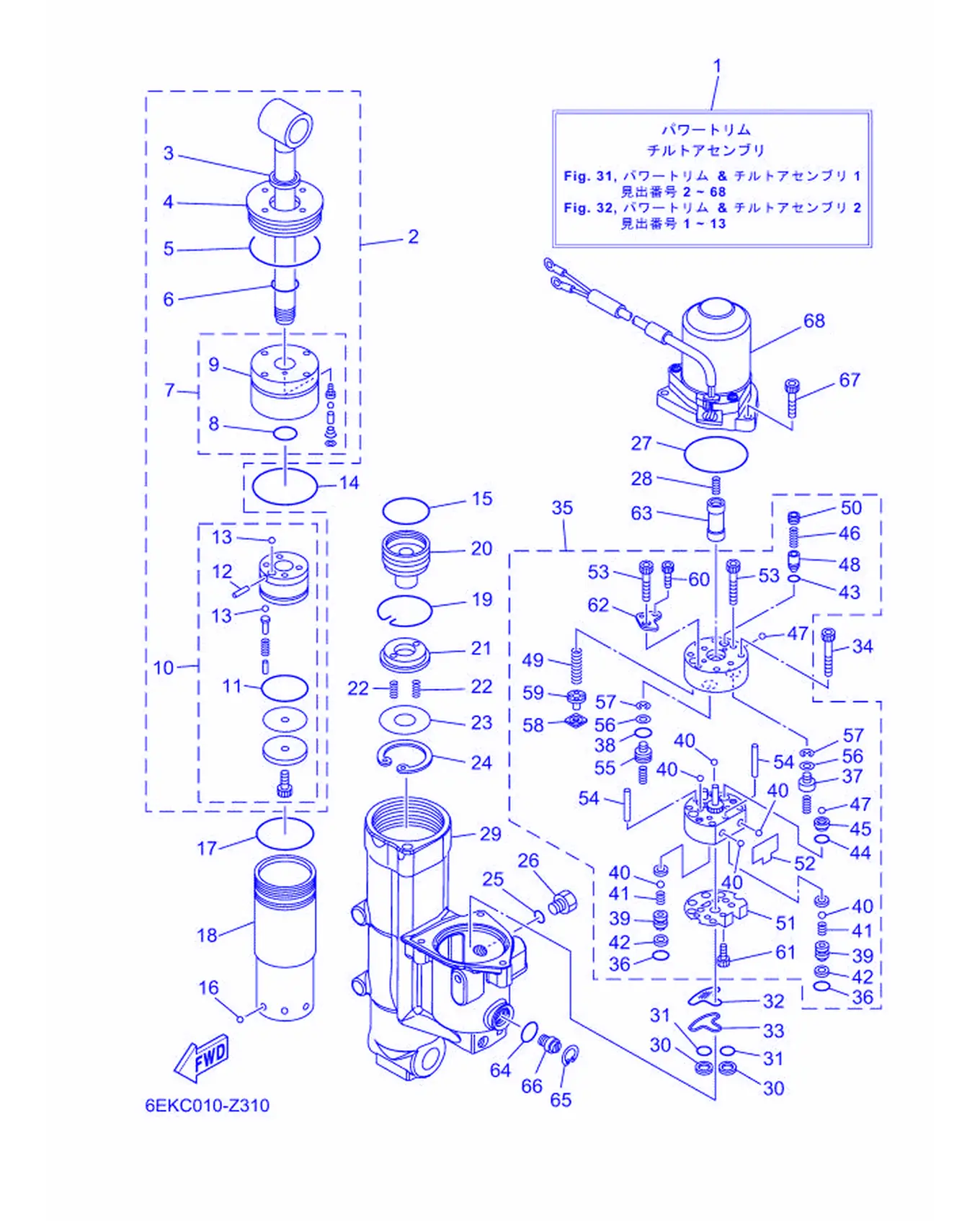

Fig. 29VMAX Power Trim & Tilt Assembly 1

VMAX 动力倾斜与升降总成 1 VMAX Power Trim & Tilt Assembly 1 Fig.

REF	Part No.	Name	Qty
1	6EK-43800-04	Power Trim & Tilt Assembly	1
2	6EK-43810-00	Tilt Piston Sub-Assembly	1
3	6H1-43812-00	Seal Dust	1
4	6EK-43821-00	Screw, Trim Cylinder End	1
5	6EK-43861-00	O-ring	1
6	6D8-43861-00	O-ring	1
7	6EK-4380R-00	Cylinder End Sub-assembly	1
8	6D8-43861-00	O-ring	1
9	6EK-43811-00	Screw, Cylinder End	1
10	6EK-4380P-00	Piston Sub Assembly	1
11	6H1-43862-00	O-ring	1
12	91609-16012	Pin, Spring	1
13	93505-32038	Ball	5
14	67F-43865-00	O-ring	1
15	6H1-43862-00	O-ring	1
16	93503-16003	Ball	6
17	7BB-G3861-00	O-ring	1
18	6EK-22471-01	Cylinder, Shock Absorber	1
19	6EK-43875-00	Ring, Snap	1
20	6EK-4381B-00	Free Piston Sub Assembly	1
21	6EK-43899-00	Plate Stopper	1
22	62X-4384H-00	Spring	2
23	6EK-22434-00	Valve Plate 1	1
24	99009-47500	Circlip	1
25	93210-09165	O-ring	1
26	6EK-43829-00	Reserve Plug	1
27	93210-68N50	O-ring	1
28	62X-4384H-00	Spring	1
29	6EK-4380K-04	Cylinder, Tilt Sub-assembly	1
30	6C6-43817-00	Filter 2	2
31	69J-4389J-00	O-ring	2
32	6C5-43816-00	Filter 1	1
33	6C5-4380G-00	Plate	1
34	91318-05045	Bolt	4
35	6EK-43830-00	Gear Pump Assembly	1
36	69J-4389J-00	O-ring	2
37	6D8-4384M-00	Piston, Shuttle 2	1
38	6H1-43883-00	O-ring	1
39	6EK-4382E-00	Adapter 2	2
40	93505-32038	Ball	6
41	6C6-43853-00	Spring	2
42	6C6-4387G-00	Washer	2
43	93210-04N51	O-ring	1
44	93210-064A5	O-ring	1
45	6D8-43851-00	Seat, Relief Valve	1
46	6C5-43855-10	Spring	1
47	93501-08001	Ball	2
48	6D8-43844-00	Pin, Valve Support	1
49	6EK-43856-00	Spring, Down Relief	1
50	6D8-43843-00	Screw, Valve Lock	1
51	6C5-43895-00	Seat, Relief Valve	1
52	6C5-43854-00	Spring, Manual Release	1
53	91318-05030	Bolt	2
54	93604-26256	Pin, Dowel	2
55	6D8-43841-00	Piston, Shuttle	1
56	69A-4384F-00	Seal, Main Valve	2
57	99002-03600	Circlip	2
58	6H1-4384G-11	Seal, Relief Valve	1
59	6H1-43844-10	Pin, Valve Support	1
60	91318-03025	Bolt	2
61	91318-03005	Bolt	1
62	6D8-4382L-00	Cap Relief Valve	1
63	6EK-43831-00	Connector, Shaft	1
64	6D8-43863-00	O-ring	1
65	6H1-43875-00	Ring, Snap	1
66	6EK-43845-00	Screw, Manual Release	1
67	91380-06025	Bolt	3
68	6EK-43880-14	Motor Assembly	1

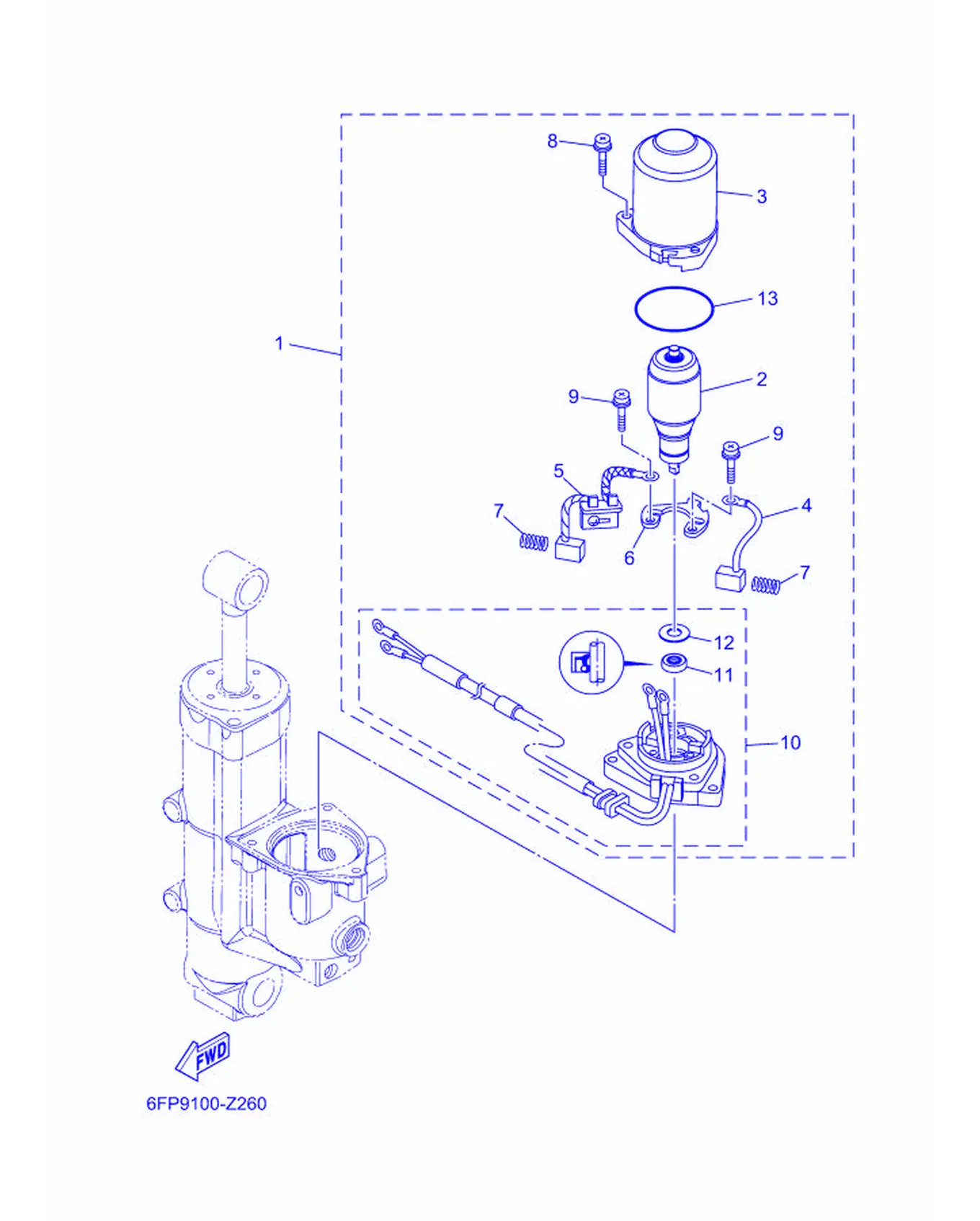

Fig. 30VMAX Power Trim & Tilt Assembly 2

VMAX 动力倾斜与升降总成 2 VMAX Power Trim & Tilt Assembly 2 Fig.

REF	Part No.	Name	Qty
1	6EK-43880-14	Motor Assembly	1
2	6LH-43805-00	Armature Assembly	1
3	6EK-43804-11	Starter Assembly	1
4	6EK-43892-00	Brush 2	1
5	6EK-82181-00	Circuit Breaker Complete	1
6	6EK-4380F-00	Plate, Brush Holder	1
7	62X-4386K-00	Spring, Brush	2
8	63P-43879-10	Screw, Washer	3
9	97602-04316	Screw, Pan Head Washer	2
10	6EK-43881-14	Frame, End	1
11	6LH-43882-00	Oil Seal	1
12	6LH-4387G-00	Washer	1
13	6EK-43862-01	O-ring	1

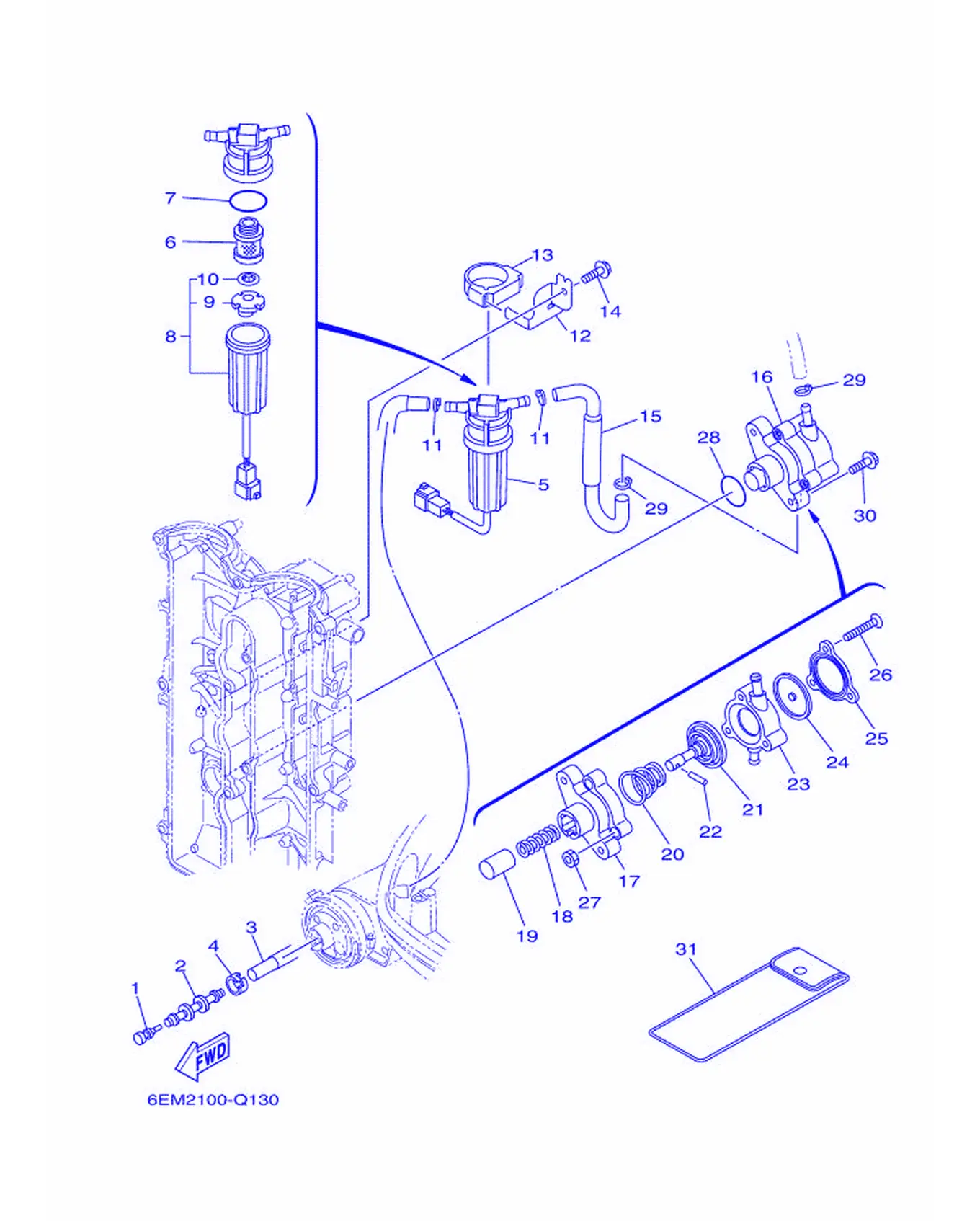

Fig. 31VMAX Fuel 1

REF	Part No.	Name	Qty
1	689-85547-01	Damper	1
2	6AW-24377-01	Pipe, Joint 2	1
3	6EK-24314-00	Pipe 4	1
4	6E5-24351-51	Band 1	1
5	6EK-24560-00	Filter Assembly	1
6	6D8-24563-00	Element, Filter	1
7	6D8-24564-00	Gasket	1
8	6D8-24562-00	Cup, Filter	1
9	6D8-24469-00	Float, Water Level	1
10	6D8-24519-00	Clip	1
11	90465-11M10	Clamp	2
12	6EK-24566-00	Bracket, Filter	1
13	6EK-24568-00	Band, Filter	1
14	95D95-06016	Bolt, Flange Deep Recess	1
15	6EK-24311-00	Pipe, Fuel 1	1
16	6EK-24410-00	Fuel Pump Assembly	1
17	68V-24412-00	Body 1	1
18	68V-24454-00	Spring	1
19	63P-13131-00	Plunger	1
20	63P-24423-00	Spring,Diaphragm	1
21	68V-24411-00	Diaphragm	1
22	68V-24374-00	Pin	1
23	6EK-24413-00	Body 2	1
24	68V-24471-10	Diaphragm	1
25	6EK-24414-00	Body 3	1
26	68V-24444-00	Screw	3
27	68V-24149-00	Nut	3
28	93210-30682	O-ring	1
29	90465-11M10	Clamp	2
30	90105-06208	Bolt, Flange	2
31	67F-28100-03	Tool Kit	1

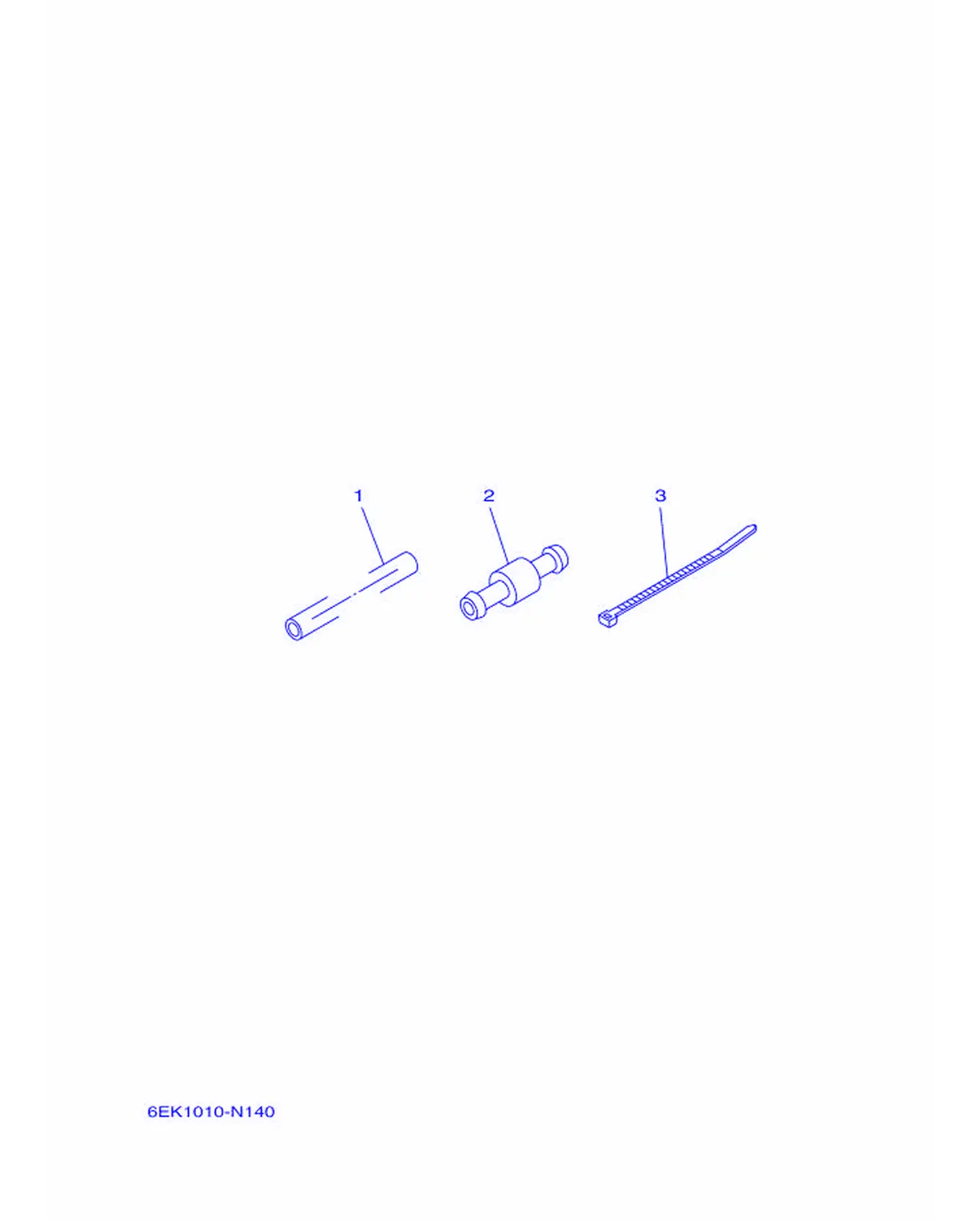

Fig. 32VMAX Fuel 2

REF	Part No.	Name	Qty
1	90445-13M25	Hose (L2050)	1
2	6R3-24377-00	Pipe,Joint 3	1
3	90465-11M10	Clamp	2

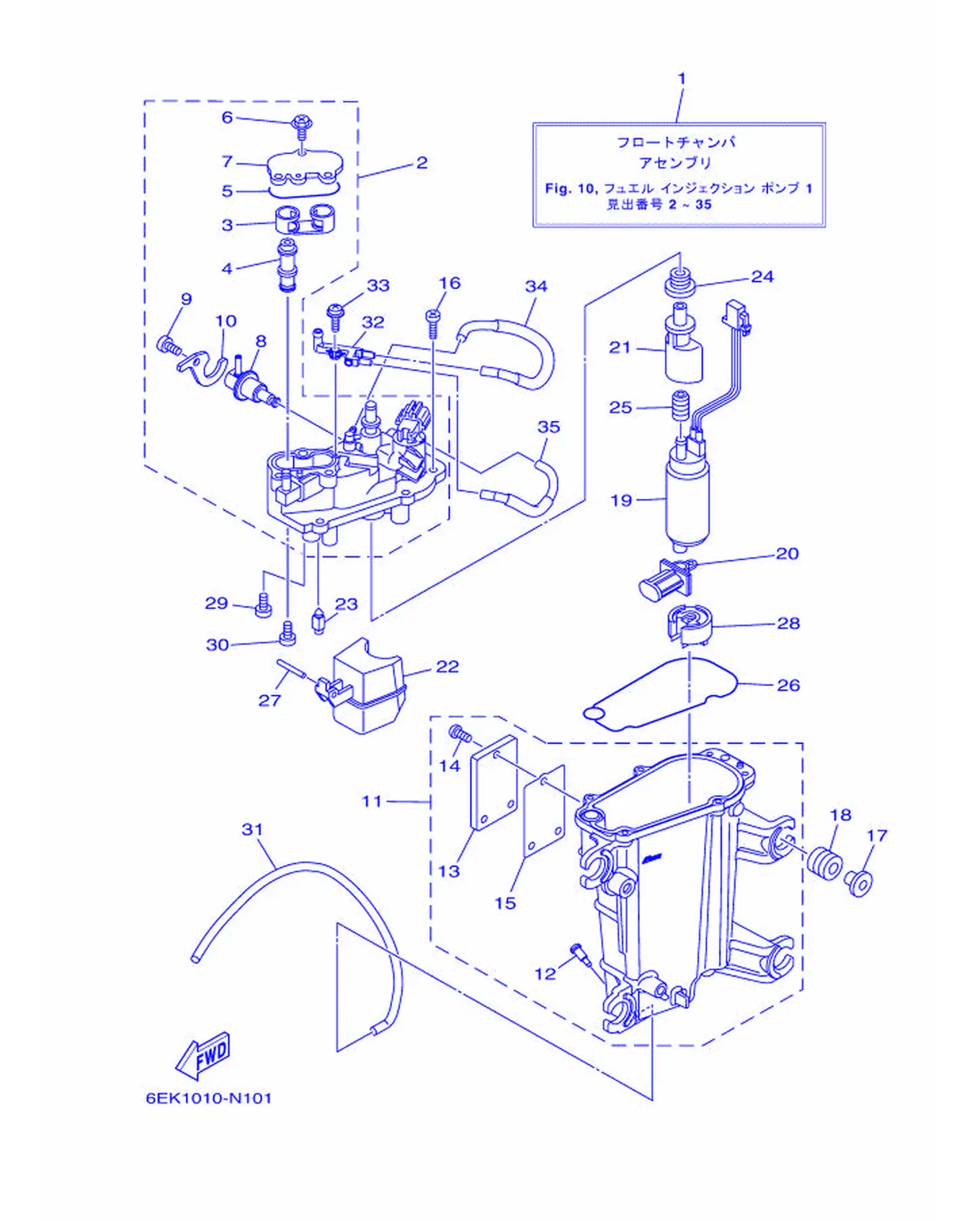

Fig. 33VMAX Fuel Injection Pump

VMAX 燃油喷射泵 VMAX Fuel Injection Pump Fig.

REF	Part No.	Name	Qty
1	6EK-14180-04	Float Chamber Assembly	1
2	6EK-14182-00	Cover, Float Chamber	1
3	6EK-24478-00	Joint	1
4	6EK-24481-00	Plug	1
5	6CB-13016-00	O-ring	1
6	6CB-14216-00	Screw	3
7	6CB-24217-00	Cover	1
8	6CB-13906-01	Regulator, Pressure	1
9	6CB-14564-00	Screw	1
10	6DA-14146-00	Plate	1
11	6EK-14181-00	Body, Float Chamber 1	1
12	6P2-14191-00	Drain Plug	1
13	6EK-24452-00	Cover	1
14	6K8-14591-10	Screw	3
15	6CB-24482-00	Gasket 1	1
16	63P-14567-00	Screw	6
17	63P-13716-00	Collar	4
18	6CB-13593-00	Damper	4
19	68V-13907-22	Fuel Pump Complete	1
20	63P-13915-00	Filter	1
21	6KA-13132-00	Joint	1
22	6CB-14985-00	Float	1
23	6CB-14546-00	Valve,Needle	1
24	6LH-1447B-00	Bushing 1	1
25	6AW-13781-00	Damper,Pump	1
26	6CB-14984-00	Gasket,FloatChamber	1
27	6P2-14386-00	Pin,Float	1
28	6AW-13784-00	Cover,Pump	1
29	4SV-24453-00	Screw	1
30	98507-04008	Screw, Pan Head	1
31	6AW-14197-00	Pipe	1
32	68V-24379-10	Pipe,Joint 4	1
33	68V-14216-00	Screw	1
34	6EK-1475H-00	Pipe 5	1
35	6EK-1475J-00	Pipe 6	1

Fig. 34VMAX Fuel Tank

REF	Part No.	Name	Qty
1	6YJ-W2420-J3	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	Cap Assembly	1
3	6Y1-24260-30	Fuel Meter Assembly	1
4	90157-05M19	Screw, Pan Head	4
5	6Y1-24329-00	Seal	4
6	6Y1-24268-01	Gasket, Fuel Meter	1
7	6YJ-24167-00	Strainer	1
8	6Y2-24306-57	Fuel Pipe Complete 1	1
9	6E5-24305-06	Fuel Pipe Joint Complete	1
10	93210-08287	O-ring	1
11	6Y2-24305-06	Fuel Pipe Joint Complete	1
12	93210-08287	O-ring	1
13	90445-13M25	Hose (L2050)	1
14	6E5-24351-51	Band 1	4
15	90445-13M24	Hose (L850)	1
16	6Y2-24360-60	Primer Pump Assembly	1

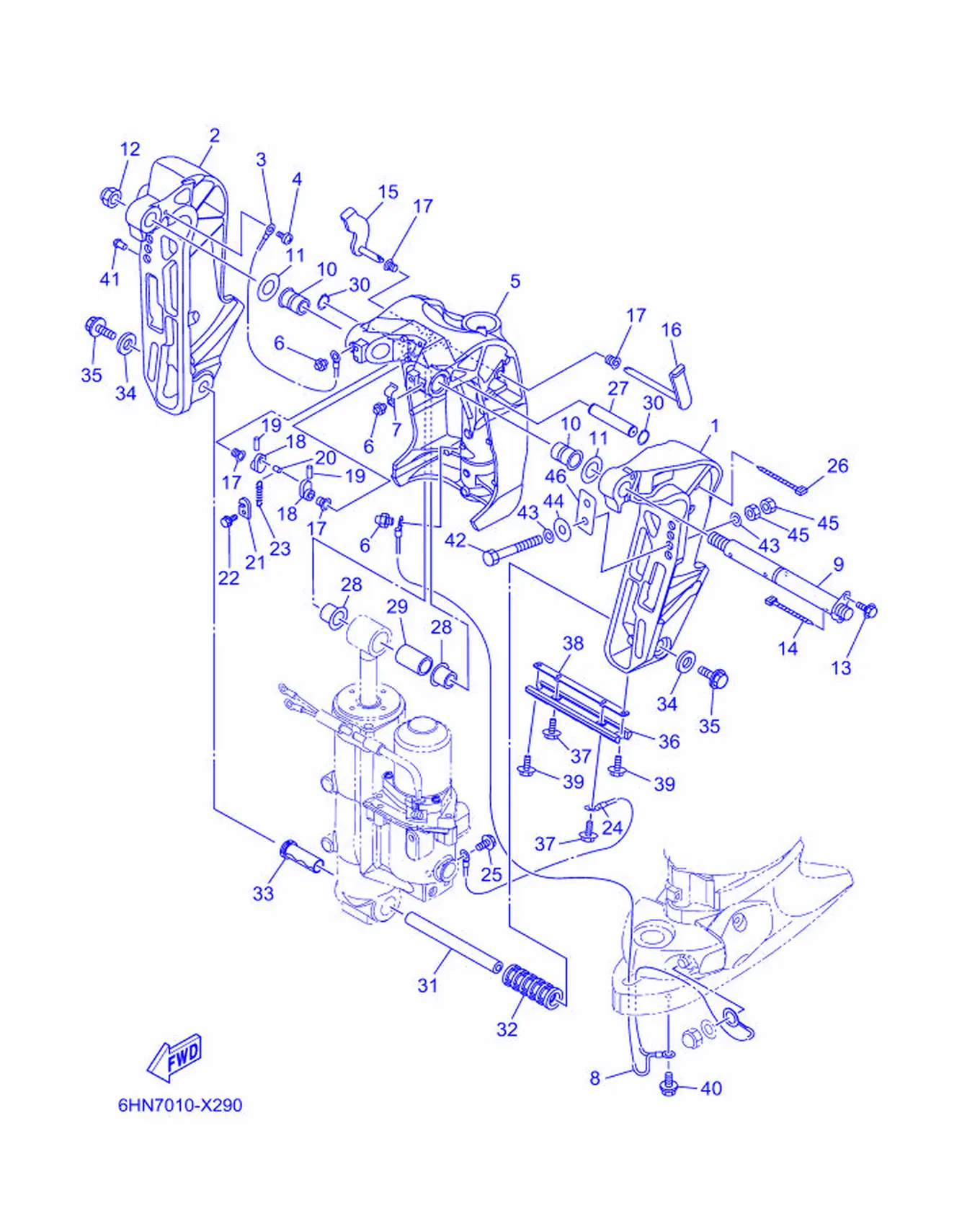

Fig. 35VMAX Bracket 1

REF	Part No.	Name	Qty
1	6EK-43111-00-8D	Bracket, Clamp 1	1
2	6EK-43112-00-8D	Bracket, Clamp 2	1
3	6E5-82148-00	Wire,Lead 4	1
4	97885-06008	Screw, Pan Head	1
5	6EK-43311-00-8D	Bracket, Swivel 1	1
6	93700-06002	Nipple, Grease	3
7	90465-08M63	Clamp	1
8	66K-82149-00	Wire,Lead 3	1
9	64E-43131-30	Bolt,ClampBracket	1
10	90386-25M31	Bushing	2
11	90201-26M59	Washer,Plate	2
12	90185-22M11	Nut, Self-Locking	1
13	97E95-08520	Bolt, Hexagon with Washer Deep Recess	1
14	90465-11M10	Clamp	1
15	6EK-43181-00	Lever, Tilt Stop 1	1
16	6EK-43185-00	Lever, Tilt Stop 2	1
17	90386-10M16	Bushing	4
18	6G5-43148-00	Collar, Distance	2
19	91690-30020	Pin,Spring	2
20	90249-06M19	Pin	1
21	66T-43144-00	Hook,Spring	1
22	97E95-06512	Bolt, Hexagon with Washer Deep Recess	1
23	90506-14M24	Spring, Tension	1
24	6D8-82148-00	Wire,Lead 4	1
25	97E95-06510	Bolt, Hexagon with Washer Deep Recess	1
26	90465-13M18	Clamp	1
27	6EK-43126-00	Pin, Upper Shock Mount	1
28	90386-18M35	Bushing	2
29	90386-18001	Bushing	1
30	93410-18M05	Circlip	2
31	6EK-43818-00	Pin, Lower Shock Mount	1
32	6H1-43834-10	Pipe	1
33	90383-20001	Bushing, Formed	1
34	90201-10060	Washer,Plate	2
35	90119-10054	Bolt, with Washer	2
36	6H1-45251-03	Anode	1
37	90119-06276	Bolt, with Washer	2
38	6EK-44536-00	Plate 2	1
39	97E95-06616	Bolt, Hexagon with Washer Deep Recess	2
40	95D95-06010	Bolt, Flange Deep Recess	1
41	90269-02M08	Rivet	2
42	90101-12065	Bolt (L:130MM)	6
43	90201-13M01	Washer,Plate	12
44	90201-12426	Washer,Plate	4
45	95380-12600	Nut	12
46	6G5-43119-00	Plate, Transom	2

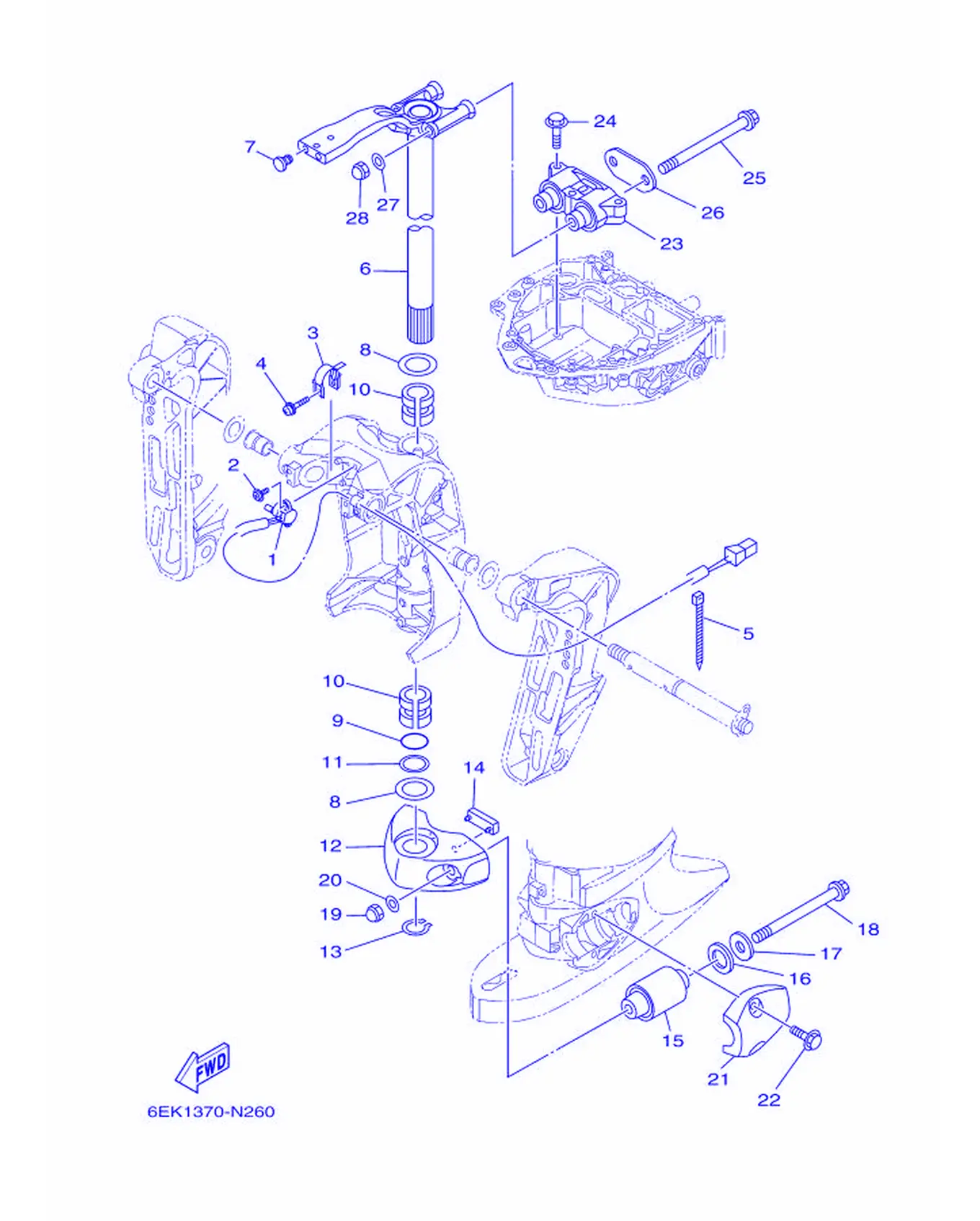

Fig. 36VMAX Bracket 2

REF	Part No.	Name	Qty
1	67H-83672-02	Trim Sender	1
2	97985-06216	Screw, With Washer	2
3	64E-43139-11	Cam, Trim Sender	1
4	90159-05059	Screw, With Washer	1
5	90465-11M10	Clamp	2
6	6EK-42510-00-8D	Steering Bracket Assembly	1
7	90338-08174	Plug	2
8	90201-38M60	Washer,Plate	2
9	93210-37MH7	O-ring	1
10	90386-38M32	Bushing	2
11	90202-40M47	Washer,Plate	1
12	6EK-44551-00-8D	Housing, Lower Mount Rubber 1	1
13	93410-36102	Circlip	1
14	61A-44575-01	Damper, Lower Mount Rubber	1
15	63P-44555-00	Mount Damper, Lower Side	2
16	90202-32M19	Washer,Plate	2
17	90201-16M55	Washer,Plate	2
18	90105-14013	Bolt, Flange	2
19	90176-14002	Nut, Cap	2
20	92995-14600	Washer	2
21	6EK-44553-00-8D	Cover, Lower Mount	2
22	90119-10058	Bolt, with Washer	4
23	6EK-44514-00	Mount Damper, Upper Side	1
24	95D75-10060	Bolt, Flange Deep Recess	3
25	90105-14007	Bolt, Flange	2
26	6EK-44526-00	Plate	1
27	92995-14600	Washer	2
28	90176-14002	Nut, Cap	2

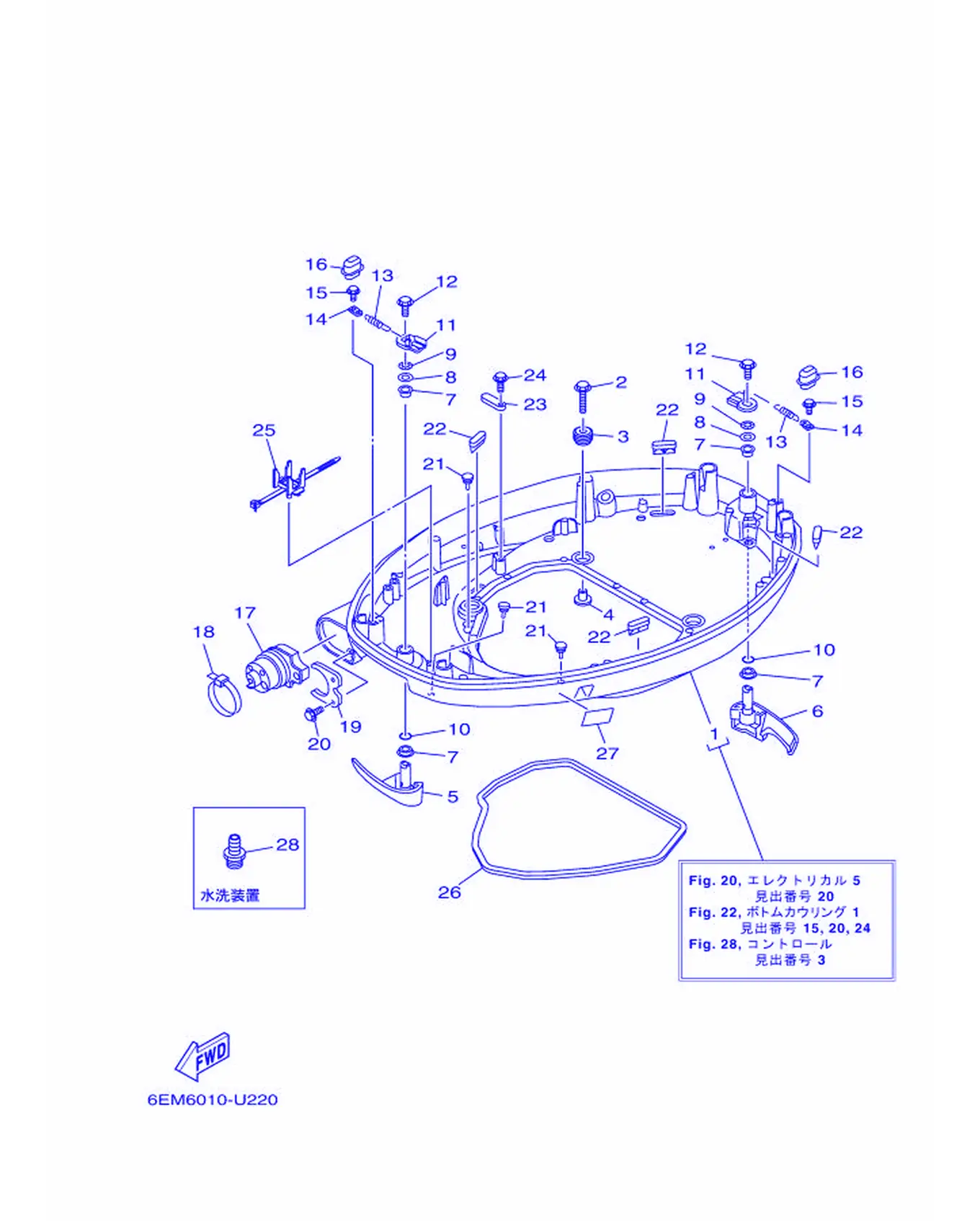

Fig. 37VMAX Bottom Cowling 1

REF	Part No.	Name	Qty
1	6EK-42710-01	Bottom Cowling Assembly	1
2	90119-08187	Bolt, with Washer	4
3	90480-22M15	Grommet	4
4	90387-08M37	Color	4
5	6EK-42815-01-8D	Lever, Clamp 1	1
6	6EK-42816-01-8D	Lever, Clamp 2	1
7	90386-15M73	Bushing	4
8	90201-156J2	Washer, Plate	2
9	90206-15M18	Washer, Wave	2
10	93210-13M63	O-ring	2
11	6CB-42818-00	Lever, Clamp 4	2
12	95D95-08012	Bolt, Flange Deep Recess	2
13	90506-22001	Spring, Tension	2
14	66T-43144-00	Hook,Spring	2
15	90109-06M86	Bolt	2
16	6EK-42728-01	Cap	2
17	6EK-42725-10	Grommet	1
18	90465-13M30	Clamp	1
19	6CB-42761-00	Stopper	1
20	90109-06316	Bolt	2
21	6H4-42748-01	Grommet	3
22	67F-42717-00	Rubber,Seal 2	4
23	6E5-82588-00	Plate	1
24	90109-06M81	Bolt	1
25	688-82594-00	Clamp	1
26	6EK-42716-01	Rubber Seal 1	1
27	6EE-42794-01	Label, Warning (General)	1
28	69J-12584-00	Joint,Hose 3	1

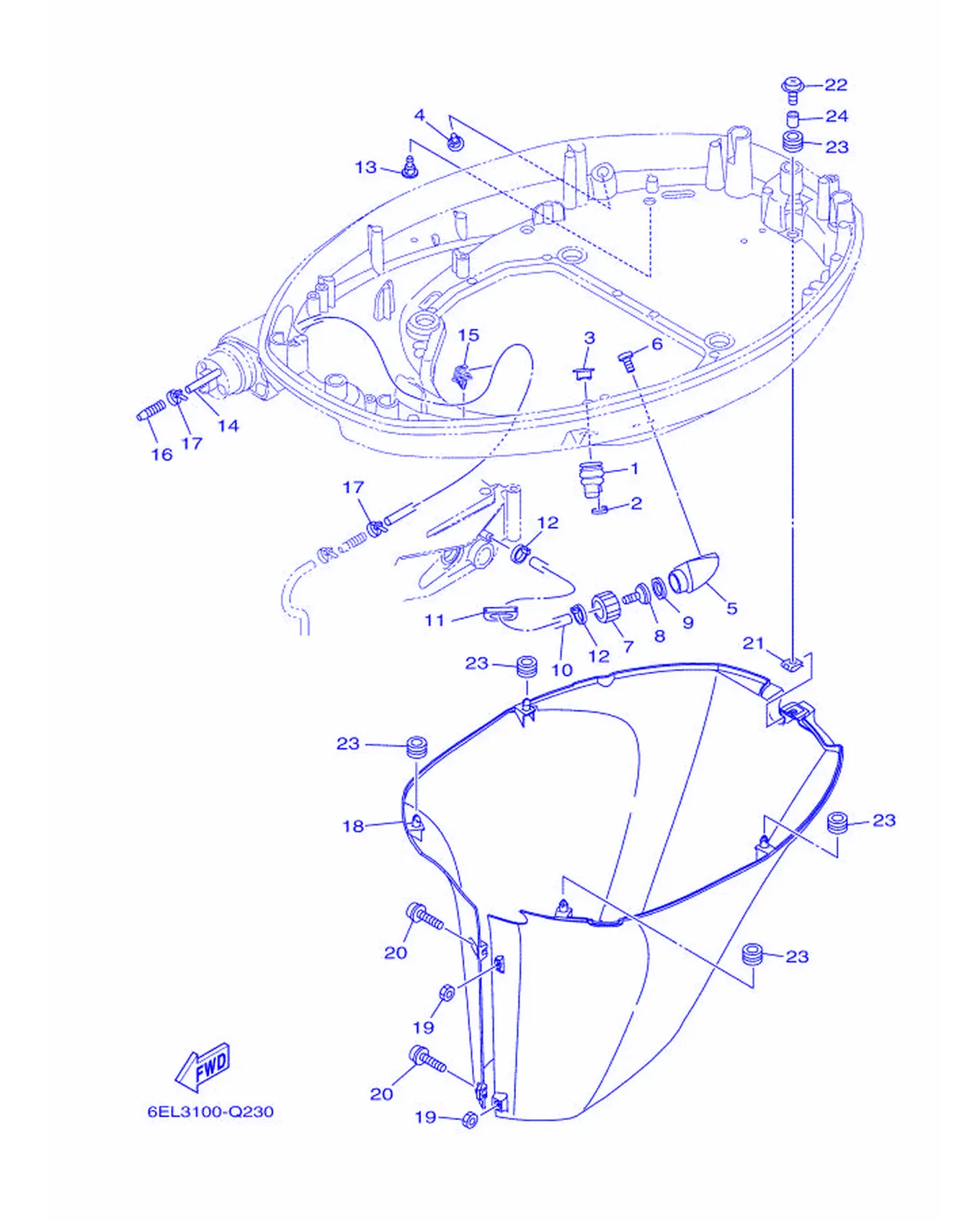

Fig. 38VMAX Bottom Cowling 2

REF	Part No.	Name	Qty
1	6H1-42726-31	Grommet	1
2	90465-11M10	Clamp	1
3	6BG-42384-00	Seal, Cap	1
4	6P2-44391-00	Nipple,Hose	1
5	6AW-12572-00	Adapter	1
6	97780-60520	Screw, Tapping	2
7	6R3-12581-00	Joint,Hose 1	1
8	6R3-12582-00	Joint,Hose 2	1
9	6R3-12583-00	Gasket,HoseJoint	1
10	6EK-42541-00	Pipe 1	1
11	6AH-42726-01	Grommet	1
12	90465-11M10	Clamp	2
13	6P2-44391-00	Nipple,Hose	1
14	90445-073F9	Hose (L1200)	1
15	90464-07259	Clamp	1
16	6E5-83558-00	End, Nipple	1
17	90465-11M10	Clamp	2
18	6EK-42741-00-8D	Apron 1	1
19	95380-06600	Nut, Hexagon	2
20	90159-06M28	Screw, With Washer	2
21	90183-061A8	Nut, Spring	1
22	90159-06053	Screw, Washer	1
23	90480-13M24	Grommet	5
24	90387-06M43	Color	1

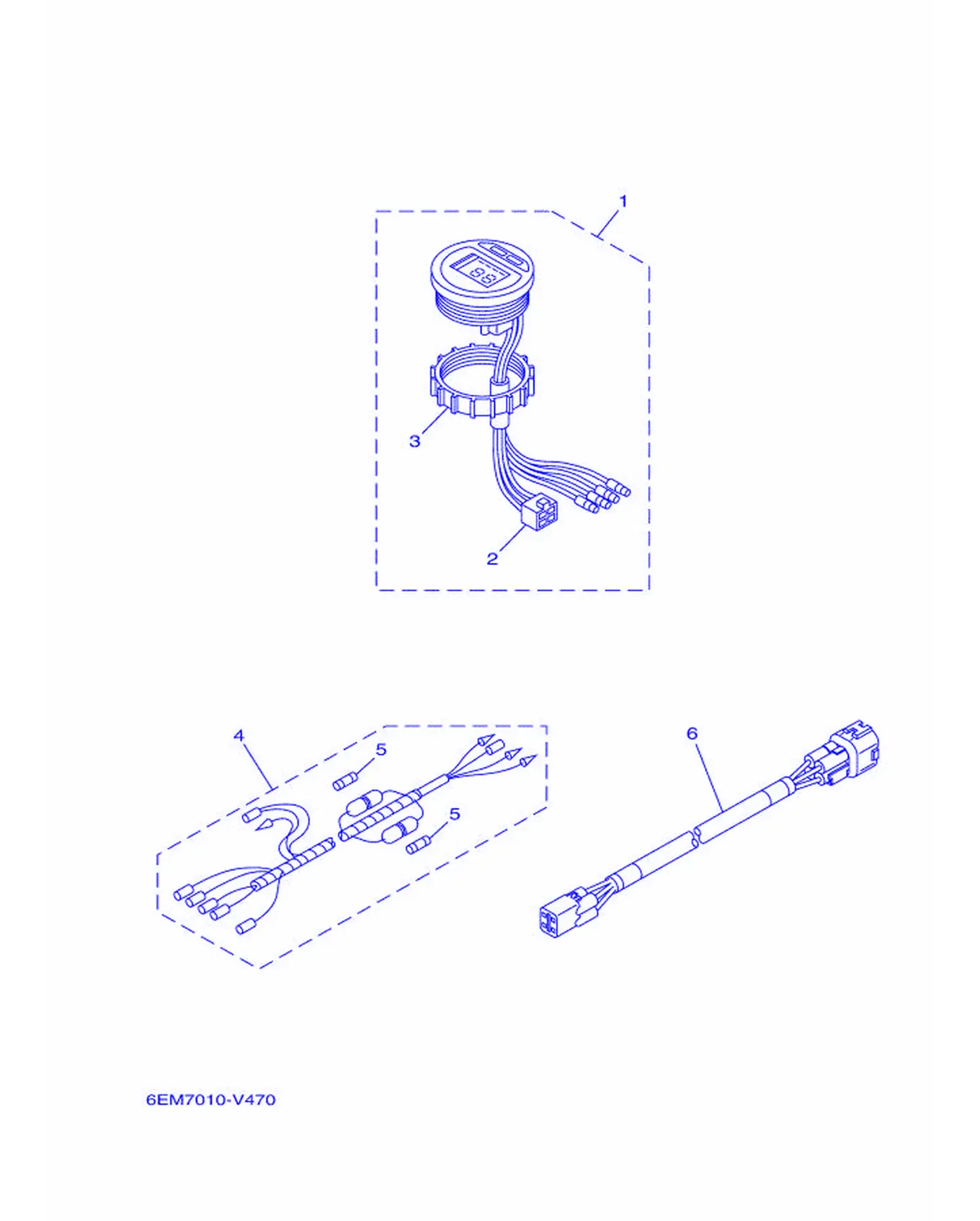

Fig. 39VMAX Meter

REF	Part No.	Name	Qty
1	6Y5-8350T-E3	Tachometer Assembly	1
2	9E450-04533	Connector	1
3	6Y8-84383-00	Nut, Ring	1
4	6Y5-83553-M1	Wire, Lead (L=2.5M)	1
5	6G1-82151-01	Fuse (10A)	2
6	6Y5-83653-20	Wire, Lead (L=7.0M)	1

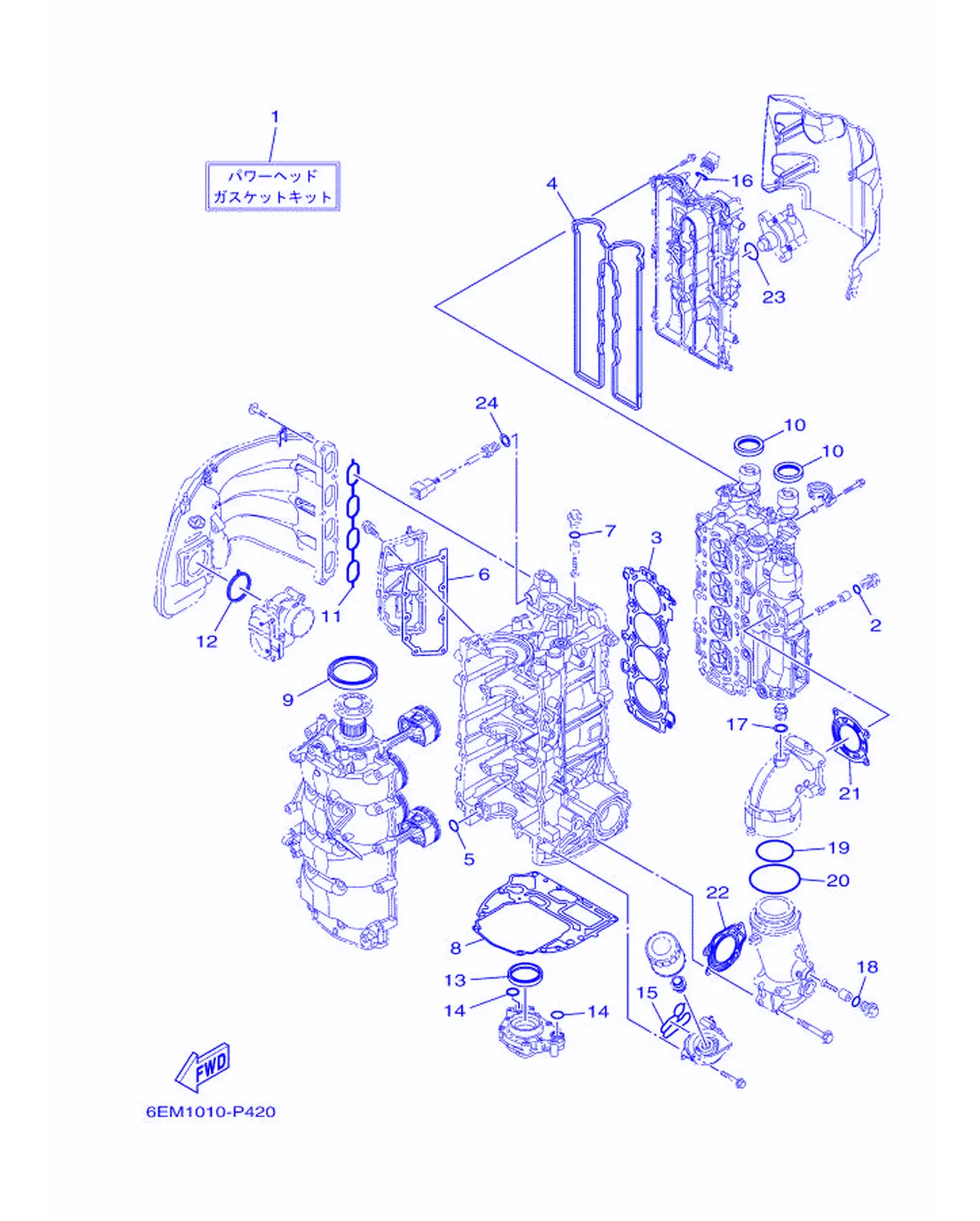

Fig. 40VMAX Repair Kit 1

REF	Part No.	Name	Qty
1	6EK-W0001-02	Power Head Gasket Kit	1
2	93210-13M63	O-ring	1
3	6EK-11181-00	Gasket, Cylinder Head 1	1
4	6EK-11193-00	Gasket, Head Cover 1	1
5	93210-19MJ1	O-ring	1
6	6EK-15353-01	Gasket, Drain	1
7	93210-13M63	O-ring	1
8	6EK-11351-01	Gasket, Cylinder	1
9	93102-85008	Oil Seal	1
10	93102-38008	OilSeal	2
11	6EK-13645-00	Gasket, Manifold 1	1
12	6EK-13646-00	Gasket, Manifold 2	1
13	69J-11355-00	Seal,Cylinder 1	1
14	93210-19MJ1	O-ring	2
15	6EK-13475-00	Gasket	1
16	93210-24M79	O-ring	1
17	90201-186F1	Washer,Plate	1
18	93210-13M63	O-ring	1
19	93210-64001	O-ring	1
20	93210-84001	O-ring	1
21	6EK-41114-00	Gasket, Exhaust Outer Cover	1
22	6EK-41124-00	Gasket, Exhaust Outer Cover	1
23	93210-30682	O-ring	1
24	90430-14115	Gasket	1

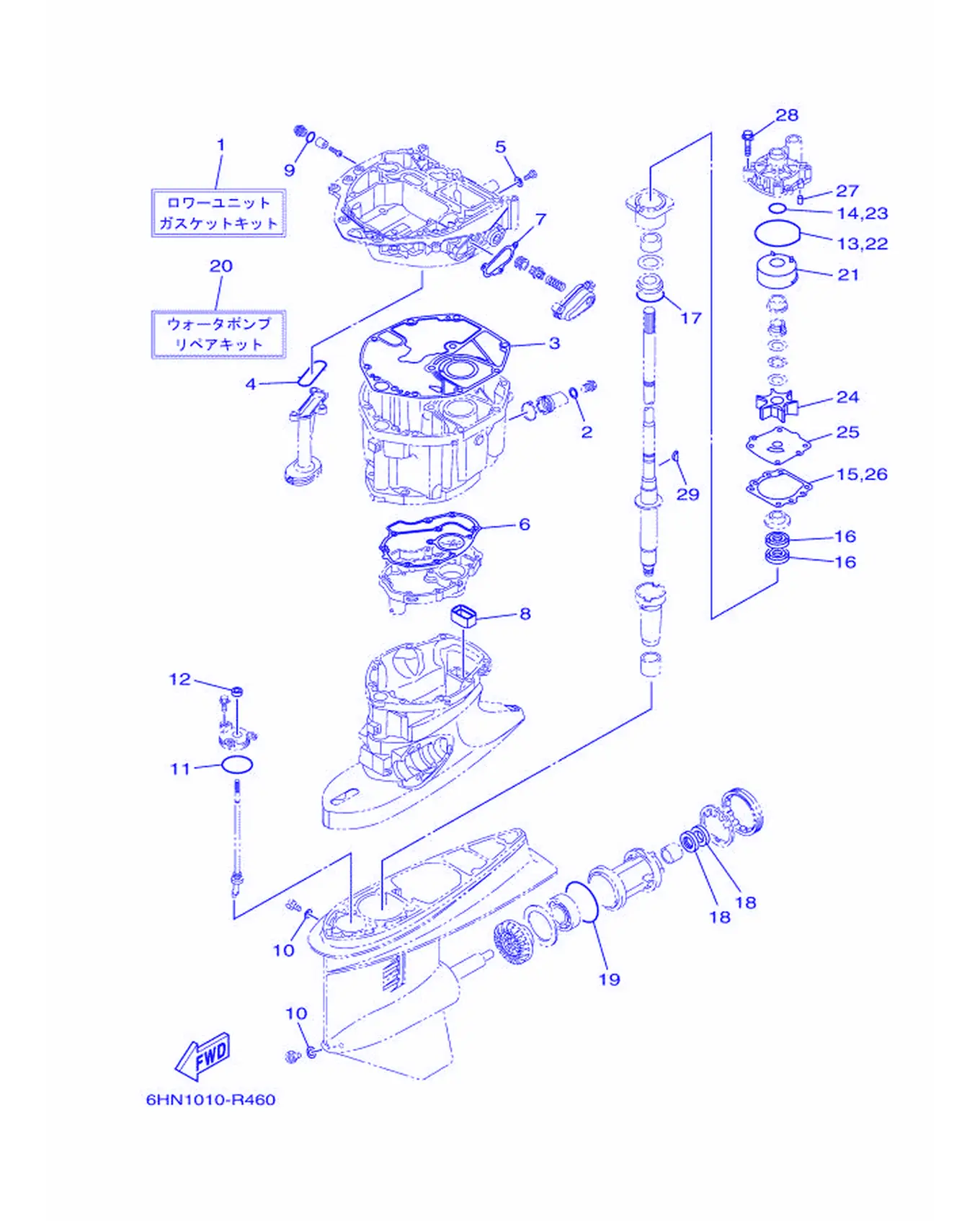

Fig. 41VMAX Repair Kit 2

REF	Part No.	Name	Qty
1	6EK-W0001-21	Lower Unit Gasket Kit	1
2	90430-14M09	Gasket	1
3	6EK-15312-01	Gasket, Oil Pan	1
4	67F-13415-00	Seal,OilStrainer	1
5	90430-08143	Gasket	1
6	6EK-41134-00	Gasket, Exhaust Manifold 2	1
7	6EK-12435-A0	Gasket	1
8	67F-45127-00	Seal	1
9	93210-13M63	O-ring	1
10	90430-08003	Gasket	2
11	93210-58144	O-ring	1
12	93106-09014	OilSeal	1
13	93210-86M38	O-ring	1
14	93210-37160	O-ring	1
15	6E5-44315-A0	Gasket,Water Pump	1
16	93101-28M16	OilSeal	2
17	93210-55M14	O-ring	1
18	93101-30M17	OilSeal	2
19	93210-86M39	O-ring	1
20	68V-W0078-01	Water Pump Repair Kit	1
21	61A-44322-02	Insert, Cartridge	1
22	93210-86M38	O-ring	1
23	93210-37160	O-ring	1
24	6E5-44352-01	Impeller	1
25	6EK-44323-00	Outer Plate, Cartridge	1
26	6E5-44315-A0	Gasket,Water Pump	1
27	93606-12019	Pin, Dowel	2
28	90119-08191	Bolt, with Washer	4
29	90280-04M05	Key, Woodruff	1

Fig. 42VMAX Remote Control Assembly

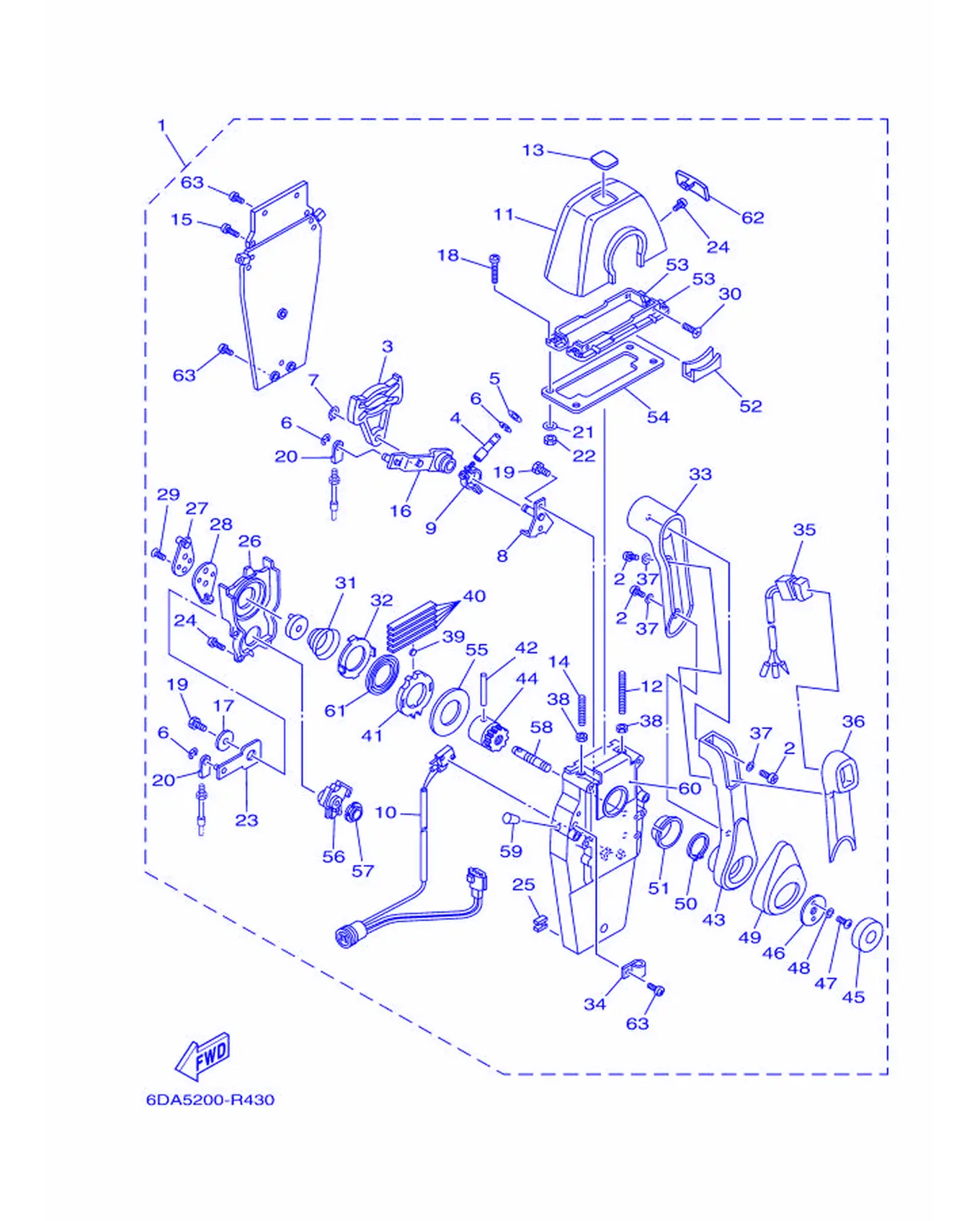

VMAX 遥控总成 VMAX Remote Control Assembly Fig.

REF	Part No.	Name	Qty
1	704-48205-R2	Remote Control Assembly (R/H)	1
2	704-48129-11	Screw 3	3
3	EL8-48251-00	Plate,Cam	1
4	704-48265-00	Shaft, Friction	1
5	701-48246-00	Spacer	1
6	93430-06024	Circlip	4
7	EL8-48259-00	Circlip 1	1
8	704-48262-00	Shaft,Throttle	1
9	704-48264-00	Throttle, Friction	1
10	704-82540-40	Neutral Switch Assembly	1
11	704-48119-50	Cover	1
12	EL8-48281-00	Screw	1
13	704-48215-61	Graphic	1
14	704-48281-00	Screw	1
15	97890-05025	Screw, Pan Head	2
16	704-48261-00	Arm,Throttle	1
17	EL8-48191-00	Washer 1	1
18	704-48283-00	Screw	4
19	97380-06018	Bolt	3
20	703-48345-01	Cable End, Remote Control	2
21	704-48287-00	Washer	4
22	95380-05600	Nut	4
23	704-48271-00	Arm, Shift	1
24	EL8-48127-00	Screw 1	10
25	703-48358-01	Anchor, Cable	1
26	704-48231-00	Housing, Cap	1
27	EL8-48241-00	Arm, Drive	1
28	EL8-48254-00	Stopper, Throttle	1
29	92780-06020	Screw, Flat Head	2
30	98780-05018	Screw, Flat Head	4
31	EL8-48244-00	Spring, Free Axel	1
32	EL8-48245-00	Plate, Lock	1
33	704-48222-10	Grip,ControlLever	1
34	704-82594-00	Clamp	1
35	704-82563-60	Trim & Tilt Switch Assembly	1
36	704-48229-30	Grip,ControlLever	1
37	92990-05300	Washer, Internal Tooth	3
38	95380-06600	Nut, Hexagon	2
39	701-48248-00	Roller, Free Accelerator	1
40	704-48238-00	Spring, Detent	5
41	704-48232-P1	Gear	1
42	EL8-48164-00	Pin 2	1
43	704-48221-R0	Lever, Control	1
44	704-48242-10	Shaft, Drive	1
45	704-48225-R0	Cover	1
46	704-48192-00	Washer 2	1
47	97890-06018	Screw, Pan Head	2
48	92990-06300	Washer, Internal Tooth	2
49	704-48224-R0	Cover,ControlLever	1
50	EL8-48279-00	Circlip 2	1
51	704-48234-00	Bushing 1	1
52	704-48219-R0	Cover,Lead	1
53	704-48144-10	Plate, Stopper 2	2
54	704-48176-01	Grommet	1
55	704-48192-P0	Washer 2	1
56	704-48233-00	Gear 2	1
57	704-48235-00	Bushing	1
58	704-48153-00	Shaft, Free Axel	1
59	704-48166-00	Plug	1
60	704-48284-P0	Grommet	1
61	704-48178-10	Plate, Shift	1
62	704-48167-20	Plug	1
63	97890-05016	Screw, Pan Head	3

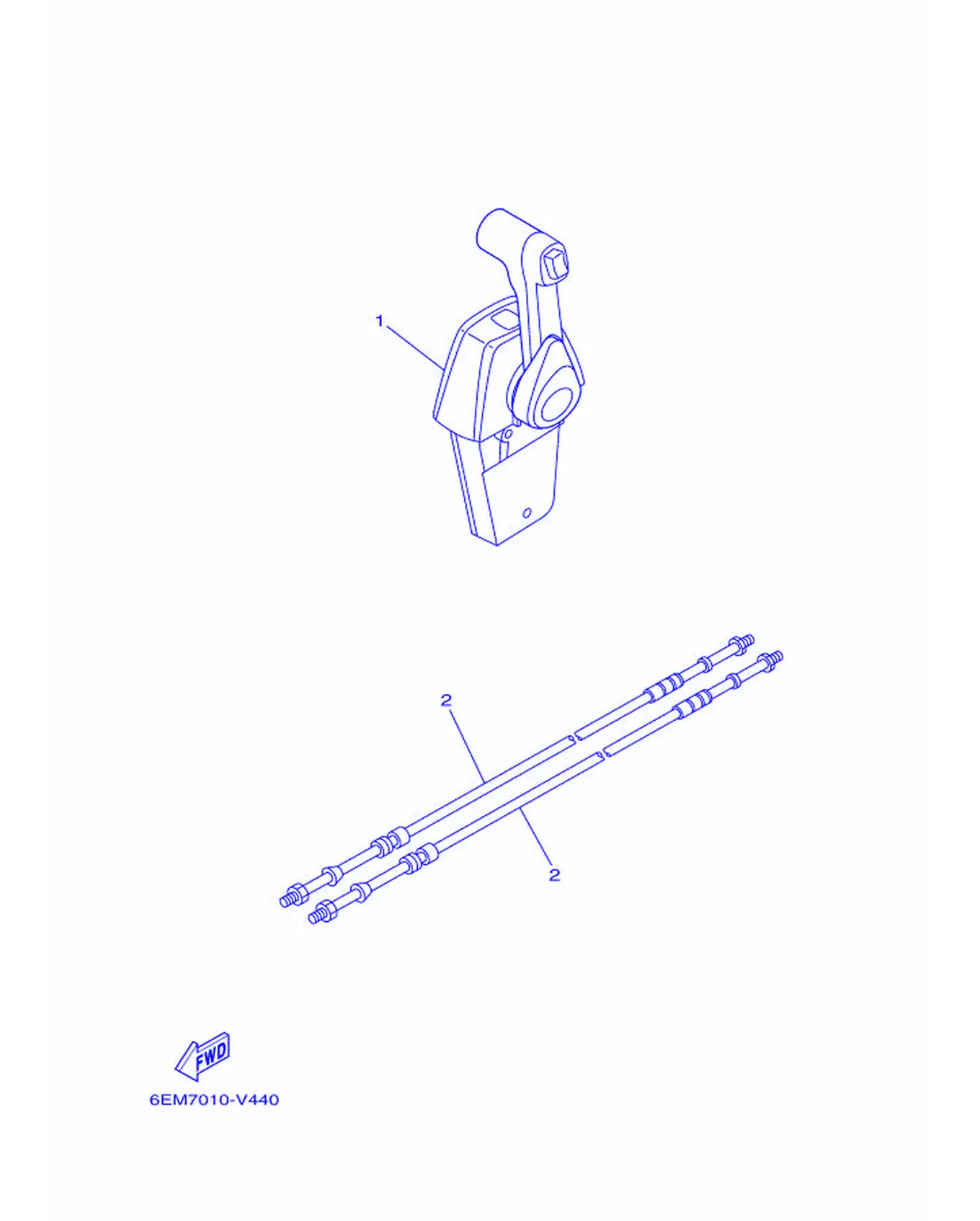

Fig. 43VMAX Remote Control Box

REF	Part No.	Name	Qty
1	704-48205-R2	Remote Control Assembly (R/H)	1
2	701-48320-50	Cable, Remote Control	2
2	701-48320-60	Cable, Remote Control	2
2	701-48320-80	Cable, Remote Control	2
2	701-48350-00	Cable, Remote Control	2
2	701-48350-20	Cable, Remote Control	2

Fig. 44VMAX Lower Casing & Drive 1

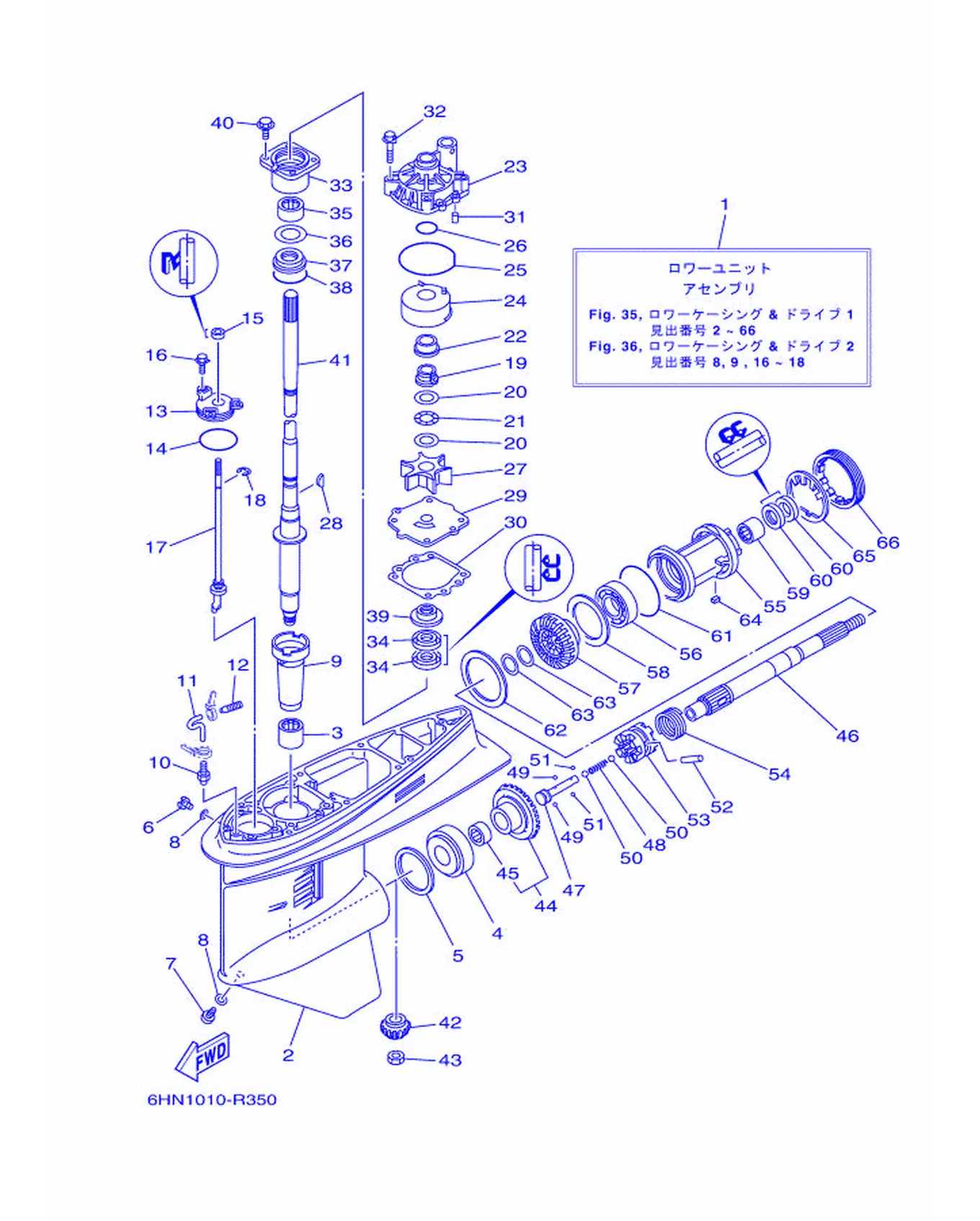

VMAX 下部壳体与传动 1 VMAX Lower Casing & Drive 1 Fig.

REF	Part No.	Name	Qty
1	6FN-45300-03-NA	Lower Unit Assembly	1
2	6E5-45301-07-NA	Casing, Lower	1
3	93315-628U9	Bearing	1
4	93332-000U7	Bearing	1
5	6E5-45567-01	Shim (T:0.10MM)	1
5	6E5-45567-10	Shim (T:0.12MM)	1
5	6E5-45567-20	Shim (T:0.15MM)	1
5	6E5-45567-30	Shim (T:0.18MM)	1
5	6E5-45567-40	Shim (T:0.30MM)	1
5	6E5-45567-50	Shim (T:0.40MM)	1
5	6E5-45567-60	Shim (T:0.50MM)	1
6	90340-08002	Plug, Straight Screw	1
7	688-45341-10	Plug, Drain	1
8	90430-08003	Gasket	2
9	6E5-45536-00	Sleeve,Drive Shaft	1
10	6E5-45378-00	Nipple,Hose	1
11	90445-07ME8	Hose (L80)	1
12	6E5-83558-10	End, Nipple	1
13	6E5-45321-00	Plate	1
14	93210-58144	O-ring	1
15	93106-09014	OilSeal	1
16	90119-06286	Bolt, with Washer	3
17	6E5-44150-03	Shift Cam Assembly	1
18	99001-08600	Circlip	1
19	61A-45538-00	Spacer 1	1
20	90201-22M01	Washer,Plate	2
21	90206-22M19	Washer, Wave	1
22	61A-45527-00	Color,Drive Shaft	1
23	61A-44311-01	Housing,Water Pump	1
24	61A-44322-02	Insert, Cartridge	1
25	93210-86M38	O-ring	1
26	93210-37160	O-ring	1
27	6E5-44352-01	Impeller	1
28	90280-04M05	Key, Woodruff	1
29	6EK-44323-00	Outer Plate, Cartridge	1
30	6E5-44315-A0	Gasket,Water Pump	1
31	93606-12019	Pin, Dowel	2
32	90119-08191	Bolt, with Washer	4
33	6E5-45331-00-9S	Housing,Bearing	1
34	93101-28M16	OilSeal	2
35	93317-330U2	Bearing	1
36	6E5-45587-01	Shim (T:0.10MM)	1
36	6E5-45587-10	Shim (T:0.12MM)	1
36	6E5-45587-20	Shim (T:0.15MM)	1
36	6E5-45587-30	Shim (T:0.18MM)	1
37	93341-930V2	Bearing	1
38	93210-55M14	O-ring	1
39	6E5-45344-00	Cover,OilSeal	1
40	97E95-08525	Bolt, Hexagon with Washer Deep Recess	4
41	6EK-45501-00	Drive Shaft Complete	1
42	6EM-45551-00	Pinion (13T)	1
43	90170-16M01	Nut	1
44	6EM-45560-00	Gear 1 (28T)	1
45	93315-425U7	Bearing	1
46	6E5-45611-01	Shaft,Propeller	1
47	6E5-45634-02	Slide, Shift	1
48	90501-16M37	Spring, Compression	1
49	93507-32009	Ball	2
50	93511-32017	Ball	2
51	93503-16003	Ball	2
52	90250-08M07	Pin, Straight	1
53	68V-45631-02	Clutch, Dog	1
54	6E5-45633-01	Ring, Cross Pin	1
55	6E5-45332-00-CA	Housing,Bearing	1
56	93306-208U0	Bearing	1
57	68V-45571-00	Gear 2 (28T)	1
58	6E5-45576-00	Washer, Thrust	1
59	93315-430U8	Bearing	1
60	93101-30M17	OilSeal	2
61	93210-86M39	O-ring	1
62	6L6-45577-00	Shim (T:0.10MM)	1
62	6L6-45577-10	Shim (T:0.12MM)	1
63	90201-30M92	Washer,Plate	2
64	90282-04010	Key, Straight	1
65	688-45383-02	Washer, Claw	1
66	688-45384-02	Nut	1

Fig. 45VMAX Lower Casing & Drive 2

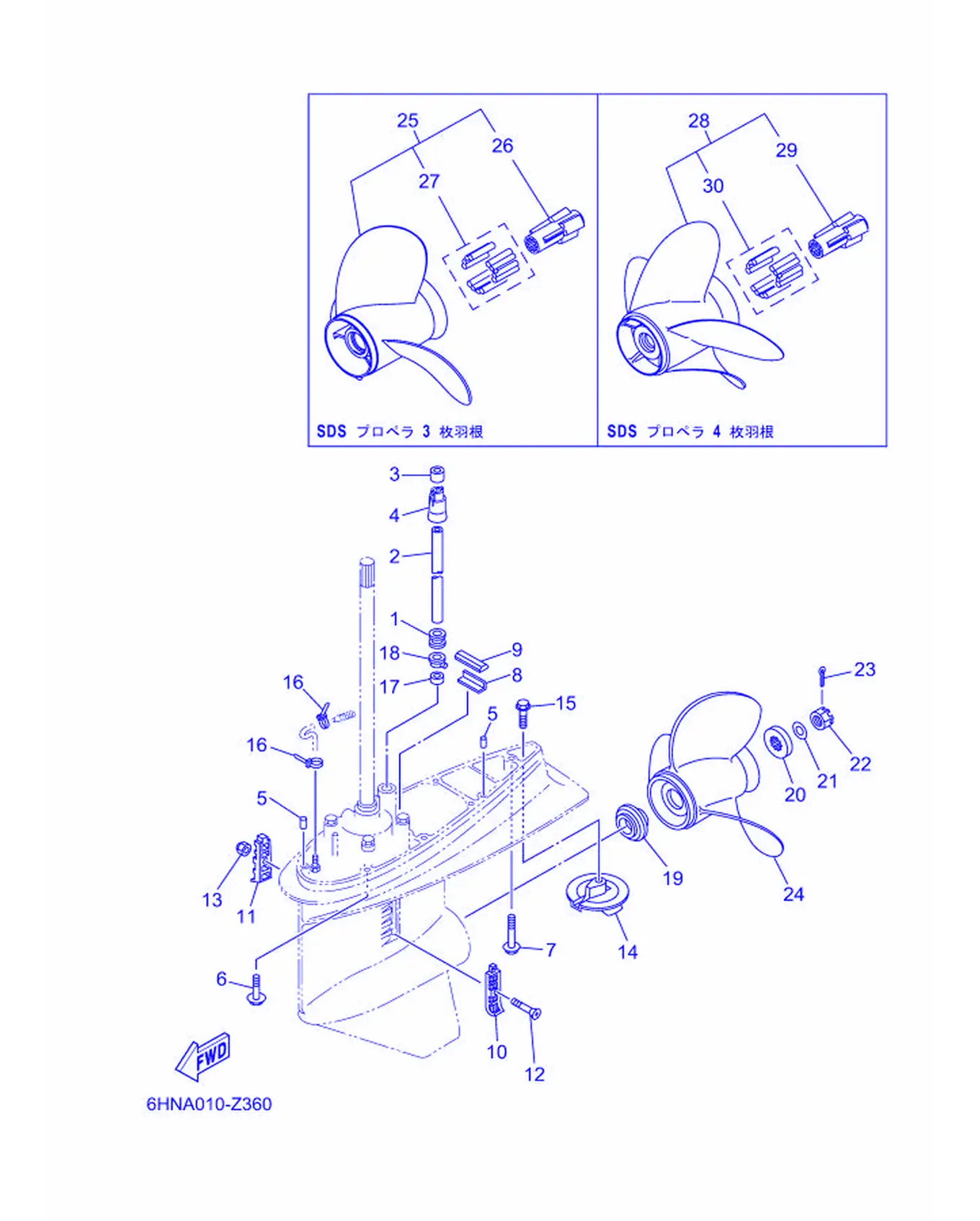

VMAX 下部壳体与传动 2 VMAX Lower Casing & Drive 2 Fig.

REF	Part No.	Name	Qty
1	6E5-44366-01	Damper, Water Seal 2	1
2	90440-16001	Pipe (L167)	1
3	6EK-44365-01	Damper, Water Seal 1	1
4	6EK-44379-00	Guide, Water Tube	1
5	93608-12M05	Pin, Dowel	2
6	97E95-10545	Bolt, Hexagon with Washer Deep Recess	6
7	90119-10071	Bolt, with Washer	1
8	663-45376-00	Guide,SealDamper	1
9	688-45375-00	Damper,Seal	1
10	688-45214-02	Cover, Water Inlet 1	1
11	688-45215-02	Cover, Water Inlet 2	1
12	90152-05M07	Screw, Countersunk	1
13	90185-05002	Nut, Self-Locking	1
14	6E5-45371-01	Tab Trim	1
15	90105-10M00	Bolt, Flange	1
16	90465-11M10	Clamp	2
17	6E5-44365-01	Damper, Water Seal 1	1
18	6E5-44312-00	Cover,Water PumpHousing	1
19	6E5-45987-01	Spacer	1
20	688-45997-01	Spacer	1
21	92990-18200	Washer	1
22	90171-18M04	Nut, Castle	1
23	91490-40030	Pin, Cotter	1
24	6E5-45954-00	Propeller (3X14X11-K)	1
24	6E5-45949-00	Propeller (3X13-5/8X13-K)	1
24	6E5-45958-00	Propeller (3X13-5/8X14-K)	1
24	6E5-45947-00	Propeller(3X13-1/2X15-K)	1
24	6E5-45945-01	Propeller (3X13-1/4X17-K)	1
24	6E5-45941-00	Propeller (3X13X19-K)	1
24	6E5-45943-00	Propeller (3X12-5/8X21-K)	1
25	6EK-45941-00	Propeller (3X13-1/2X9-K)	1
25	6EK-45943-00	Propeller (3X13-1/2X10-1/2-K)	1
25	6EK-45945-00	Propeller (3X13-1/2X12-K)	1
25	6EK-45947-00	Propeller (3X13-1/2X14-K)	1
25	6EK-45949-00	Propeller (3X13-1/2X16-K)	1
25	6FP-45941-00	Propeller (AL 3X13-5/8X14-K)	1
25	6FP-45943-00	Propeller (AL 3X13-1/2X15-K)	1
25	6FP-45945-00	Propeller (AL 3X13-1/4X16-K)	1
25	6FP-45947-00	Propeller (AL 3X13-1/8X17-K)	1
25	6FP-45949-00	Propeller (AL 3X13X18-K)	1
25	6N7-45970-00	Propeller (3X13-1/8X14-K)	1
25	6N7-45972-00	Propeller (3X13-1/8X16-K)	1
25	6N7-45974-00	Propeller (3X13-1/8X18-K)	1
25	6N7-45976-00	Propeller (3X13-1/8X19-K)	1
25	6N7-45978-00	Propeller (3X13-1/8X20-K)	1
26	6EK-45982-00	Bushing, Propeller	1
27	6EK-45C82-09	Damper Rubber, Propeller 2	1
28	6N6-45B70-00	Propeller (4X13-1/4X14-X)	1
28	6N6-45B72-00	Propeller (4X13-1/4X16-X)	1
28	6N6-45B74-00	Propeller (4X13-1/4X18-X)	1
28	6N6-45B76-00	Propeller (4X13-1/4X20-X)	1
28	6N6-45B78-00	Propeller (4X13-1/4X22-X)	1
28	6N6-45B80-00	Propeller (4X13-1/4X23-X)	1
29	6EK-45982-00	Bushing, Propeller	1
30	6EK-45C82-09	Damper Rubber, Propeller 2	1
